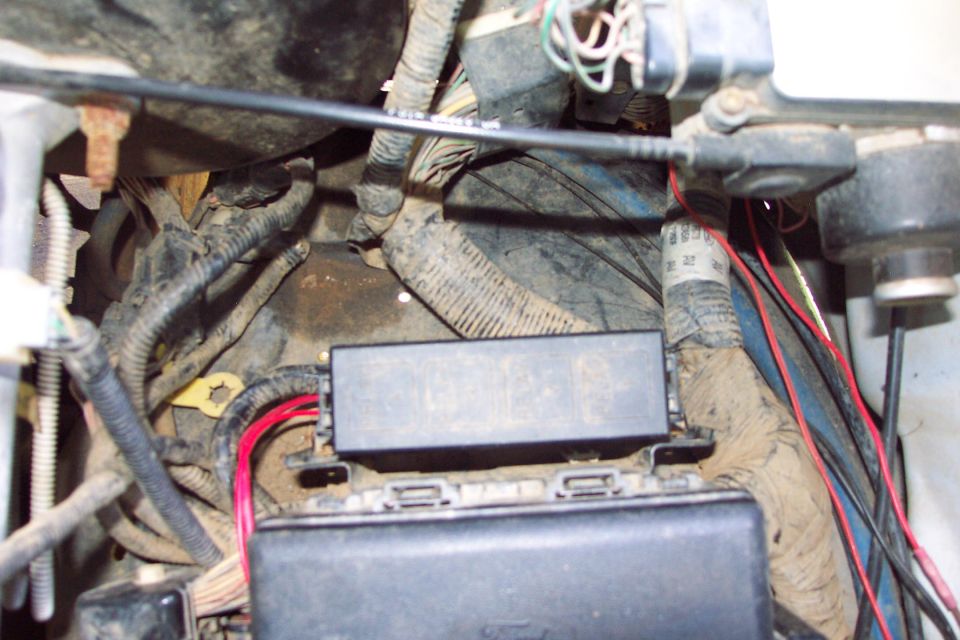

Ignition On Signal
The ignition on signal source is obtained from trailer battery charge relay. Connection is made by taping into the wire from underneath the auxiliary relay box. The small red wire is the ignition on signal for the electric cooling fan. The larger red wire is battery charge relay output going to power rock lights and air compressor.
(4/29/2006)
