Dana 60

From 1996 Ford Bronco, documented by 96broncoman.

16 photos
← Back to this vehicle

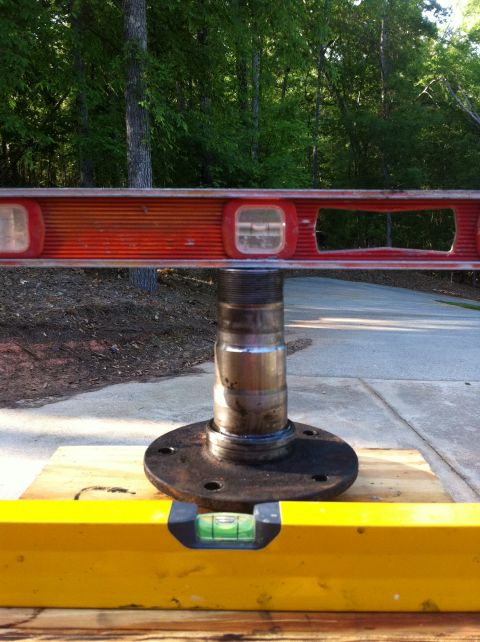

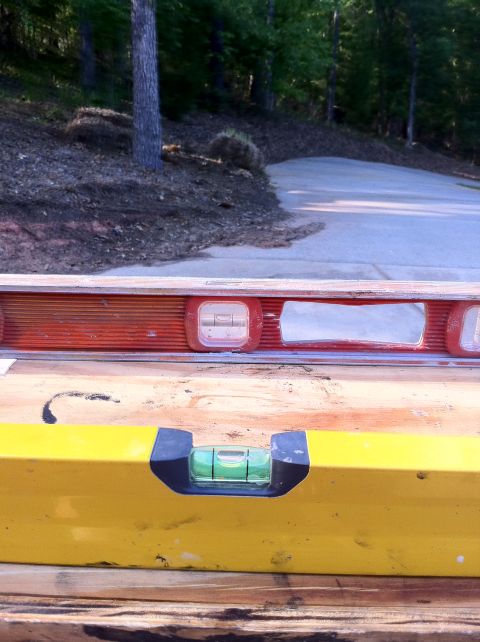

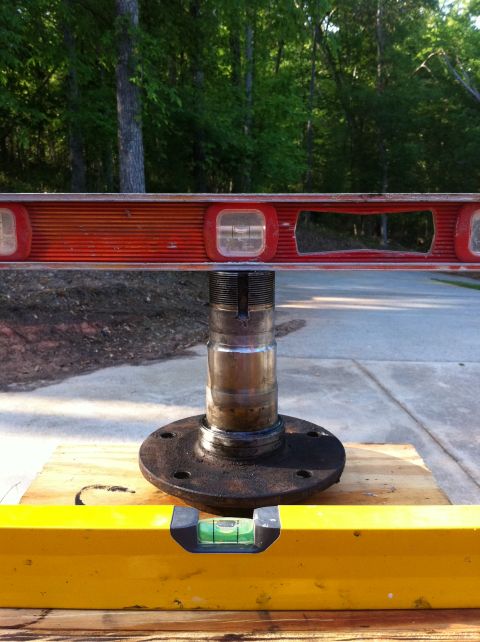

1996 Ford Bronco - A grimy cast axle housing end sits on a stand with the knuckle/spindle removed, exposing the studded mounting flange and remnants of gasket… 1996 Ford Bronco - The left is the 'bent' one and the right is the 'straight' one. 1996 Ford Bronco - Close up of Passenger side (good) spindle 1996 Ford Bronco - Close up of drivers side (bad) spindle. 1996 Ford Bronco - Two levels checking each other and the working surface. 1996 Ford Bronco - Suspect spindle, one direction. 1996 Ford Bronco - Suspect spindle rotated 90 degrees 1996 Ford Bronco - A red aluminum bubble level is balanced across the threaded top of a coilover shock body or steering-related tube to check that it sits plu… 1996 Ford Bronco - Other spindle. 1996 Ford Bronco - Other spindle rotated 90 degrees. 1996 Ford Bronco - The two levels on the working surface, front and rear, after the measuring of the spindles. 1996 Ford Bronco - Tight close-up of the end of a black-painted steel frame rail showing pressed reinforcement ribs, drilled bolt holes of several sizes, and… 1996 Ford Bronco - An axle housing with the differential cover removed, showing the oil-coated ring gear, carrier with bearing caps and open spider gears, and… 1996 Ford Bronco - Two new suspension control-arm bushings with steel outer sleeves and black rubber flanges standing on their white parts box, which is label… 1996 Ford Bronco - Close-up of a differential ring gear inside an axle housing with yellow marking compound painted across several teeth to read the gear cont… 1996 Ford Bronco - Close-up of a differential ring gear bolted to its carrier, with yellow marking compound painted on the gear teeth to check the pinion cont…
