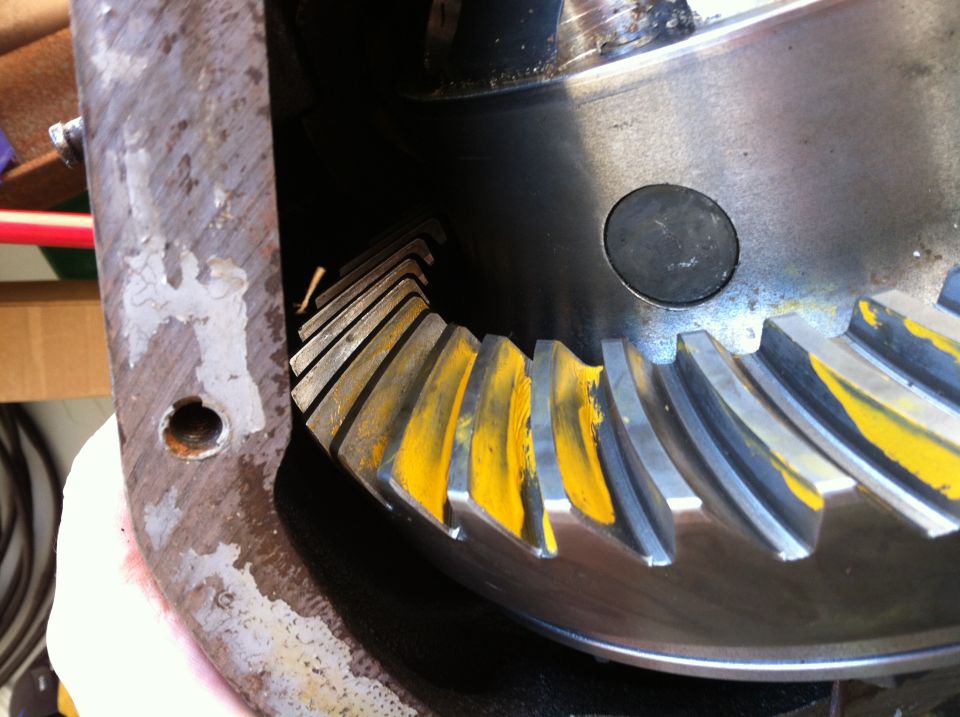

Differential ring gear with yellow marking compound showing gear…
Close-up of a differential ring gear inside an axle housing with yellow marking compound painted across several teeth to read the gear contact pattern during a ring-and-pinion setup. The housing face is bare, chipped cast iron with an exposed bolt hole at left.
