Stuff I've busted wheelin

From 1990 Ford Bronco, documented by Dave Blaney.

50 photos
← Back to this vehicle

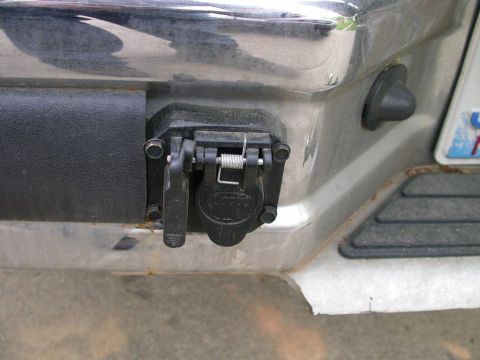

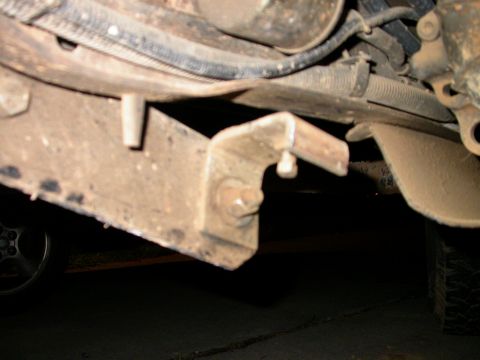

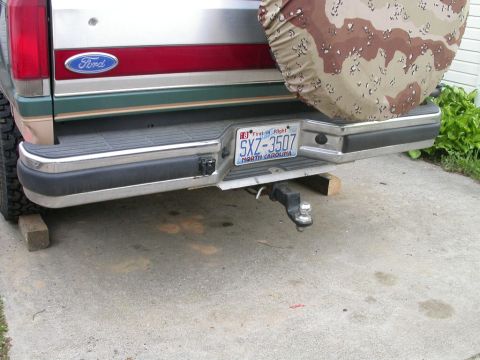

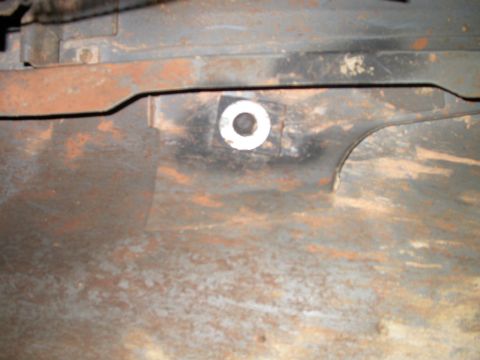

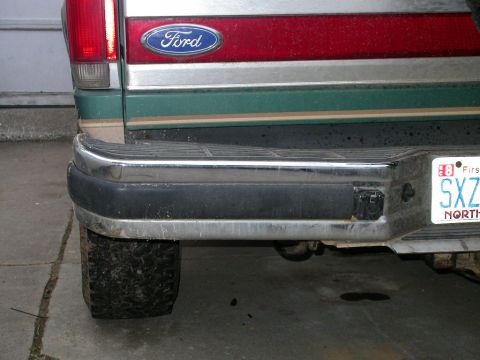

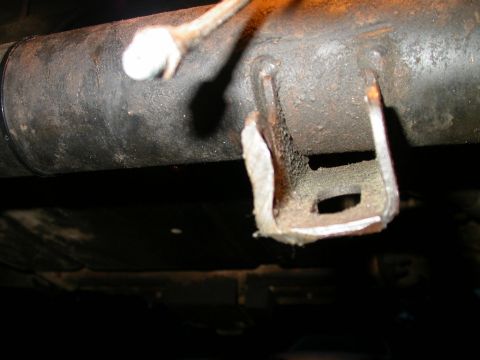

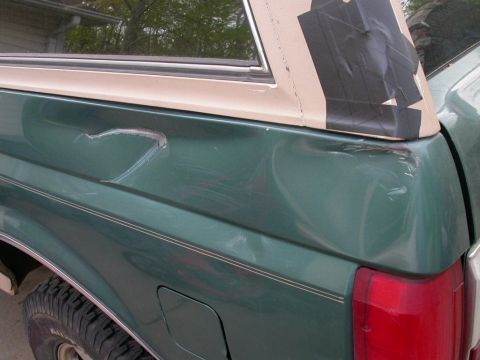

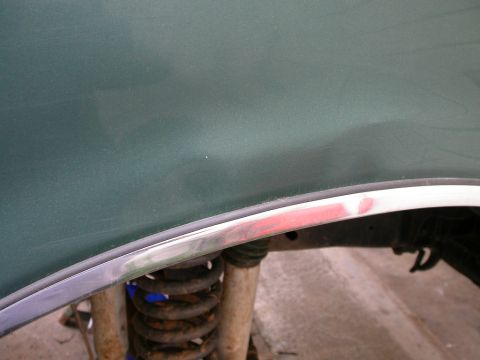

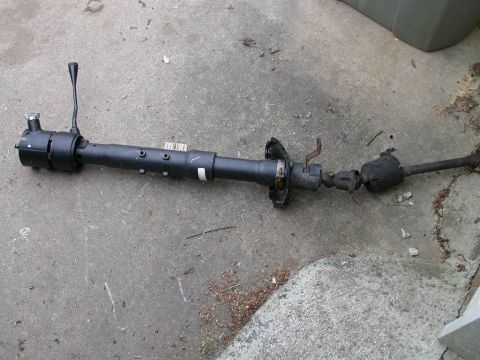

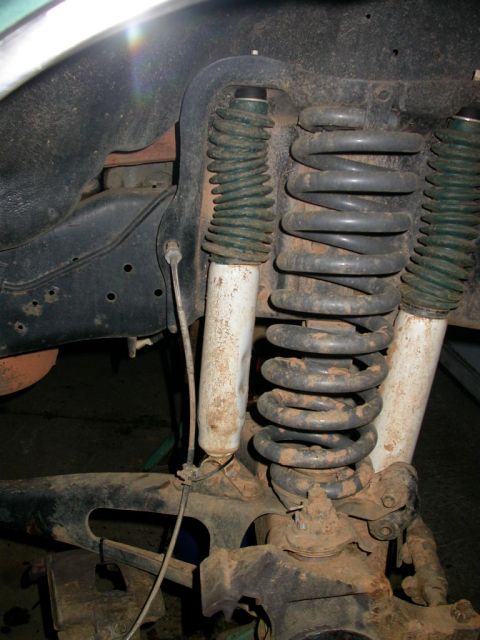

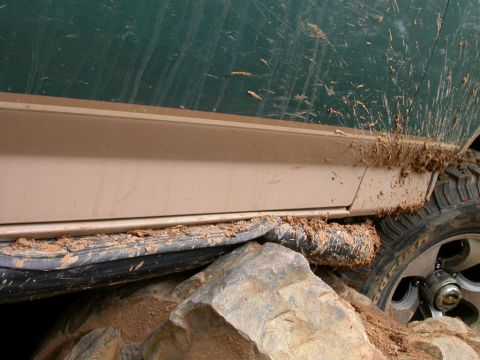

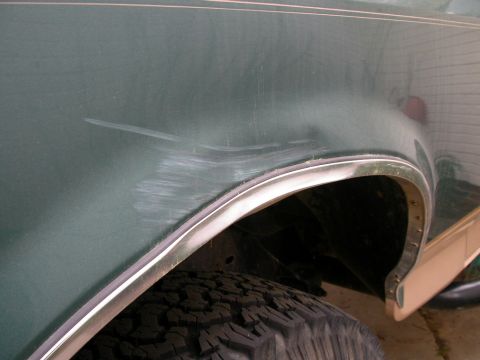

1990 Ford Bronco - Somehow my coil spring bashed into my shock. 1990 Ford Bronco - Bashed in the same shock on the other side too. 1990 Ford Bronco - Busted my stering column, it wouldn't shift. 1990 Ford Bronco - Did this one while trying to flip the Bronco over on it's side. 1990 Ford Bronco - Tweaked the fender flares a bit. 1990 Ford Bronco - This flare just picked up a wrinkle 1990 Ford Bronco - Actually, this is the repaired pic. It used to be mounted under the bumper, not very compatible with the rocks. 1990 Ford Bronco - Hard to tell due to the angle of this pic, but the bumper has been tweaked a few times by taking some hard landings. I'm going to have to b… 1990 Ford Bronco - This is the repair to my floor board where one of the drivers seat bolts tried to pull through and tore part of the sheet metal. I welded t… 1990 Ford Bronco - Picked up a little rock rash on my new rear diff cover, damn it. I'm going to have to make a rock ring to protect this expensive thing. 1990 Ford Bronco - Found this bashed in shock mount while remounting my rear axle after regearing. The mount sticks down 2 5/8" below the axle tube, looks lik… 1990 Ford Bronco - Nerf Bar go by-by. 1990 Ford Bronco - Nice little bumper tweak, nothing a sledge hammer can't fix. 1990 Ford Bronco - Busted glove box latch of all things. 1990 Ford Bronco - A little rock rash on the Flowmasters 1990 Ford Bronco - Busted off half of this nerf bar mounting bracket. 1990 Ford Bronco - Rocks have altered the genetic make up of this t-case skid plate 1990 Ford Bronco - Transmission crossbar took some hits 1990 Ford Bronco - Further damage to my rock anchor / shock mounts 1990 Ford Bronco - This one was nice. Got a sapling stuck between the nerf bar and the rocker panel, which somehow bent out the rocker panels sheet metal. Did… 1990 Ford Bronco - Bent out rocker sheet metal and bent to hell mounting of the nerf bar. 1990 Ford Bronco - Muffler hanger ripped off of exhaust pipe 1990 Ford Bronco - Tore this exhaust shock mount in half at Superlift. 1990 Ford Bronco - Must have broke this rear axle factory shim flexing it at Uwharrie. 1990 Ford Bronco - Shattered the hell out of this hub on the Daniel hill climb at Uwharrie. I think it busted when the front end got a little bouncy and I sho… 1990 Ford Bronco - Passenger side door handle, torn off in a fit of terror. 1990 Ford Bronco - Tire spun off the bead. Oh yeah, that sucks. 1990 Ford Bronco - Busted tail light. 1990 Ford Bronco - I found this lying in the driveway next to the bronco. Note the chunk of exhaust pipe still attached to it. 1990 Ford Bronco - Looks like here is where the exhaust hanger got torn off of. 1990 Ford Bronco - This muddy flowmaster looks like it's seen better days. 1990 Ford Bronco - A while back I clocked up my shock mounts to keep them from hanging up on the rocks. Hmmm... 1990 Ford Bronco - Steering has an interesting bow to it. 1990 Ford Bronco - This t-case skid plate has obviously been way overworked. 1990 Ford Bronco - Rear wheel cylinder broke in half, then churned around inside of the drum and tore everything else in there to shit. It even bent the brake… 1990 Ford Bronco - Broken wheel cylinder 1990 Ford Bronco - Mangled brake parts 1990 Ford Bronco - This is bad....metal chips drained out with gear oil. 1990 Ford Bronco - Look what happens when the axle tube comes loose, it lets the pinion get into the carrier. 1990 Ford Bronco - I know, it's a dark pic. Busted plug welds on 8.8 diff. 1990 Ford Bronco - Bronco in surgery. 1990 Ford Bronco - Front brake caliper pin working it's way out the back. Scary! 1990 Ford Bronco - Bent TTB arm drop bracket 1990 Ford Bronco - Busted both D60 inner axle shafts 1990 Ford Bronco - Busted D60 drivers side inner shaft 1990 Ford Bronco - Busted D60 passenger side inner shaft 1990 Ford Bronco - I just loved the shocked look on Jacks face 1990 Ford Bronco - This is a close-up view of a vehicle's fuel injection system, showing various metal parts and hoses. 1990 Ford Bronco - Close-up of a damaged engine bracket with visible bolts and a drive belt. 1990 Ford Bronco - Close-up view of an engine bay showing an air filter, belts, and tie-down straps.
