Power Steering / Hydro Assist

From 1990 Ford Bronco, documented by Dave Blaney.

9 photos
← Back to this vehicle

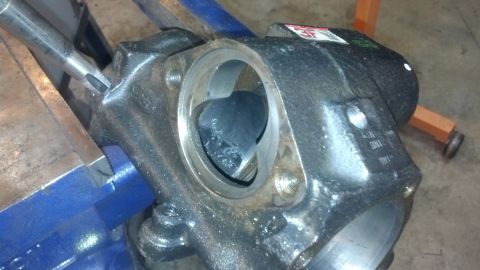

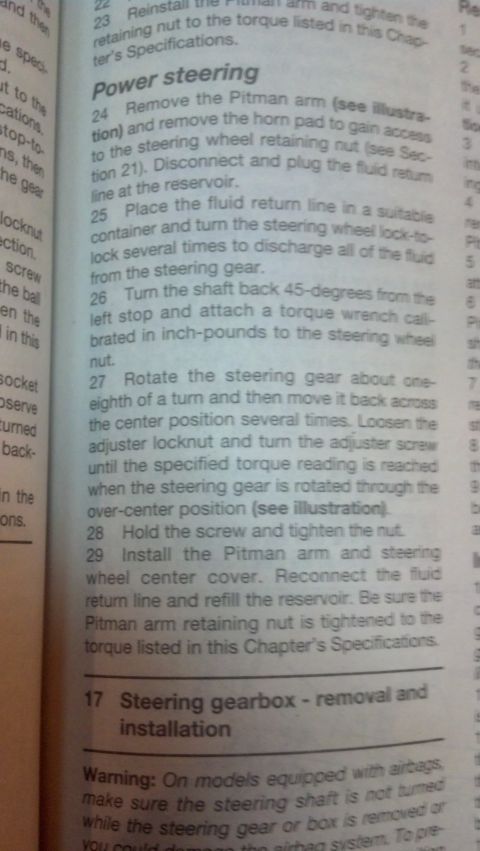

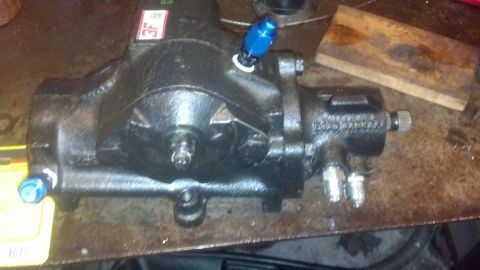

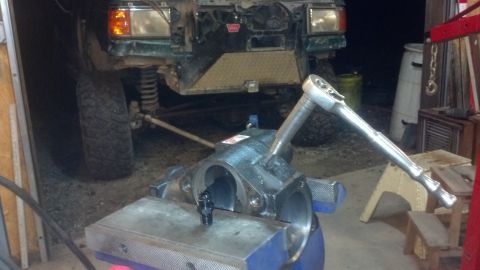

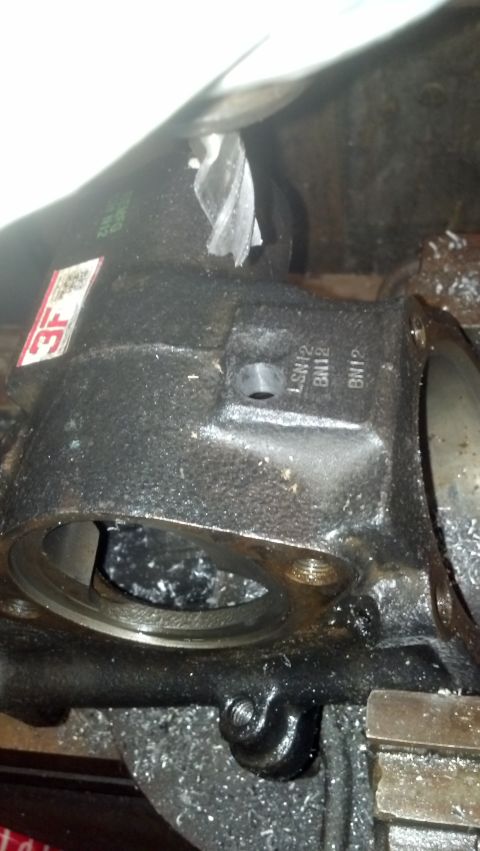

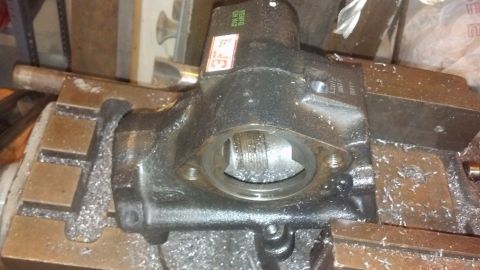

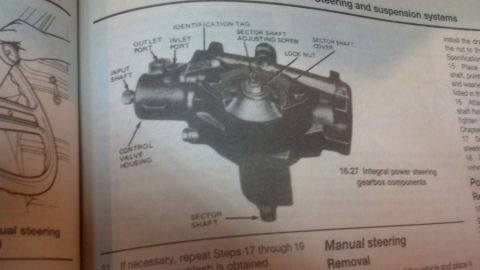

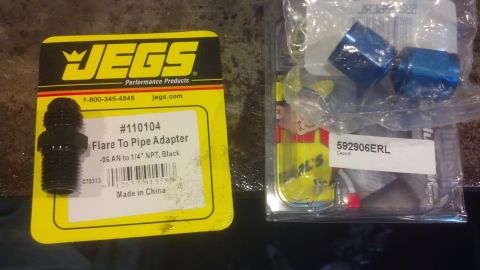

1990 Ford Bronco - Milling 7/16" hole for right hand turn pressure port in the thick boss down near the bottom end of the box. The hole should penetrate into… 1990 Ford Bronco - Left hand turn pressure port hole milled into the flat spot . It is VERY thick here, no worries about tapping too deep. 1990 Ford Bronco - Good shot of both holes. 1990 Ford Bronco - Left turn hole tapped 1990 Ford Bronco - These are the 1/4" NPT to AN-6 adapters I'm using, plus the caps for them until I'm ready to plumb the cylinder. 1990 Ford Bronco - JEGS Flare To Pipe Adapter and blue fittings shown in packaging. 1990 Ford Bronco - Box reassembled with -6 AN adapters and caps added. 1990 Ford Bronco - Haynes manual instructions for setting the backlash on the box. 1990 Ford Bronco - Diagram of what everything is on the box, as of you couldn;t fgure it all out for yourself.
