302 and AOD

From 1988 Ford Bronco “The OJ Special”, documented by Adrianspeeder.

13 photos
← Back to this vehicle

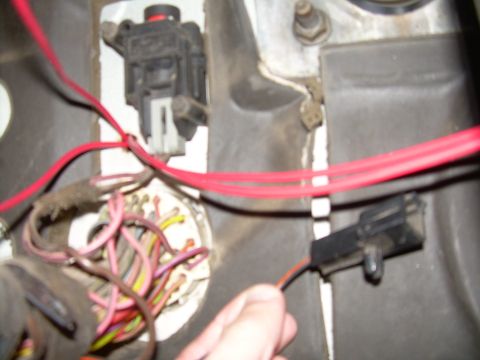

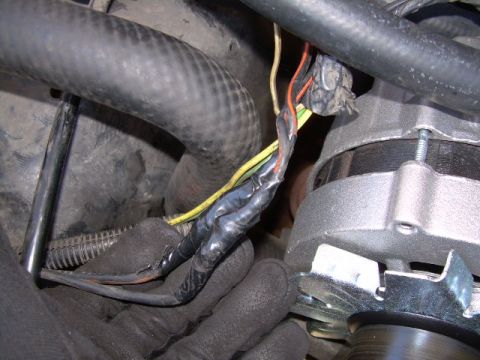

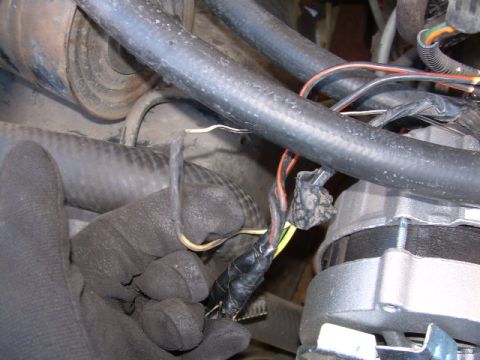

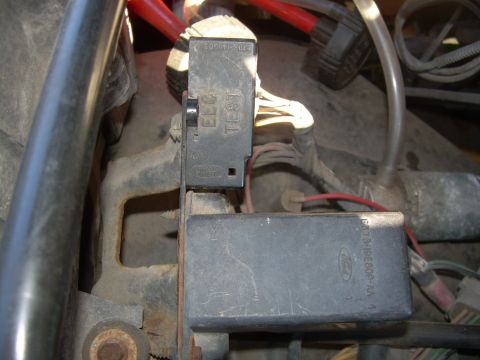

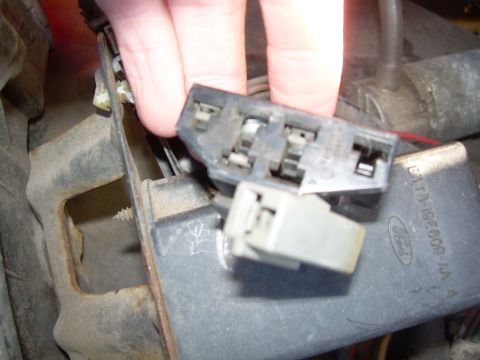

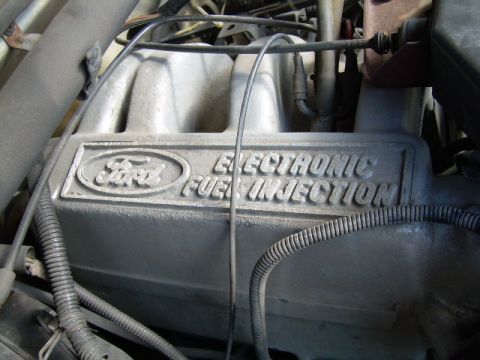

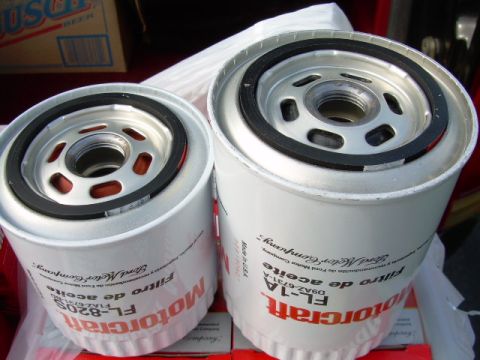

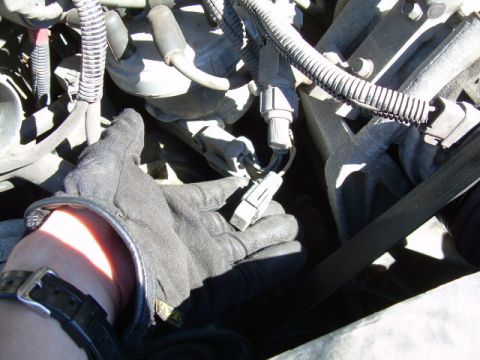

1988 Ford Bronco - Underbody view looking up at an aluminum transfer case housing bolted behind the transmission, with its ribbed casting, drain/fill plugs an… 1988 Ford Bronco - Close-up of a cast aluminum intake manifold in an engine bay with the Ford oval and raised "ELECTRONIC FUEL INJECTION" lettering on its sid… 1988 Ford Bronco - Close-up of a hand holding an engine wiring harness connector, revealing its internal pins and surrounding wires. 1988 Ford Bronco - Two new white Motorcraft spin-on oil filters standing gasket-side up on their red boxes, the larger FL-1A (D9AZ-6731A) beside a smaller FL-… 1988 Ford Bronco - Close-up of a hand in a black glove disconnecting an electrical connector in an engine bay. 1988 Ford Bronco - A multimeter is used to check the voltage in the engine bay, showing 14.62V. 1988 Ford Bronco - Close-up view of alternator wiring, showing taped connections and various colored wires. 1988 Ford Bronco - gloved hand holds a taped wiring harness connector with colored wires near an alternator and rubber hoses inside an engine compartment. 1988 Ford Bronco - ABS connector and Inertia switch above brake pedal 1988 Ford Bronco - OBD1 connector 1988 Ford Bronco - Engine-bay close-up of a Ford self-test diagnostic connector cover molded "ELC TEST" with the Ford oval, hinged open above a dusty black co… 1988 Ford Bronco - Wiring diagram adding backup lights via a relay and manual override switch with color-coded terminals. 1988 Ford Bronco - Wiring diagram showing rock lights wired through a DPST switch and relay with color-coded pins (85/86/30/87) and a 20A fuse to 12V.
