Front End Swap

From 1990 Ford Bronco, documented by flamegod.

72 photos
← Back to this vehicle

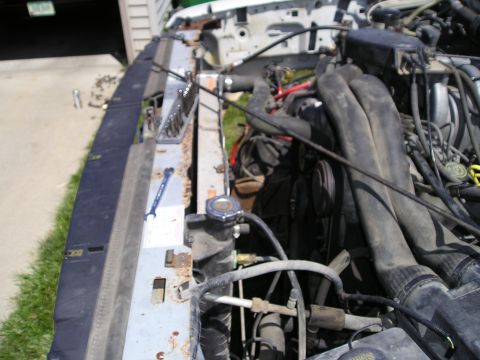

1990 Ford Bronco - It's Finally Time! 1990 Ford Bronco - Hood's gotta' go 1990 Ford Bronco - grille and lower trim are next 1990 Ford Bronco - remove corner lights(or the bucket) for easy access to the screws that hold the trim piece on. 1990 Ford Bronco - more fun 1990 Ford Bronco - ...more 1990 Ford Bronco - Remove bracket from rad. support, remove battery and tray, remove start sol., remove wiring harnes and ground, remove two screws behind tur… 1990 Ford Bronco - Ghandi 1990 Ford Bronco - do the same for the right side...only this inner has 5 bolts-leave the one in the frame-remove three bolts for the air box support and pop… 1990 Ford Bronco - inner screws being removed 1990 Ford Bronco - gone 1990 Ford Bronco - progressing 1990 Ford Bronco - next it's the rad supports turn. I left the radiator and condenser connected as well as the tranny cooler. With a little care it can be don… 1990 Ford Bronco - this is streetable right 1990 Ford Bronco - think of the tire clearance gained 1990 Ford Bronco - unbolt that bumper take it off right at the frame four bolts, don't drop it on your foot. 1990 Ford Bronco - bye bye ba-by 1990 Ford Bronco - nice 1990 Ford Bronco - ok time to prep the graft 1990 Ford Bronco - remove everything from the fenders except the jack holder, remove the condenser, leave the tranny cooler-it's bigger on mine-save the wirin… 1990 Ford Bronco - condenser gone 1990 Ford Bronco - after about 3 hours your yard should look like this, or garage I guess if you are lucky enough to find a place to rent with a 7-1/2'+ garag… 1990 Ford Bronco - The newer harness won't fit the 90 1990 Ford Bronco - tanks gone 1990 Ford Bronco - match not found 1990 Ford Bronco - match not found 1990 Ford Bronco - about 2 hours later (the frame bolts were conveniently left for me...rusted together.) 1990 Ford Bronco - clean 1990 Ford Bronco - my first snag after removing the wipers and all the screws on the fonr, the four for the antenna(dont let the antenna lead fall into the ri… 1990 Ford Bronco - air box 1990 Ford Bronco - condenser 1990 Ford Bronco - doors 1990 Ford Bronco - A man works on the front end of a 1990 Ford Bronco, which appears to be undergoing a front-end swap. 1990 Ford Bronco - you have to swap the wiper cowl too 1990 Ford Bronco - who needs adjusters for the hood that extend past the fender??? 1990 Ford Bronco - All done 1990 Ford Bronco - antenna 1990 Ford Bronco - bulbs 9004 9007 1990 Ford Bronco - front clip on 1990 Ford Bronco - clipped 1990 Ford Bronco - cooler condenser brackets and ground strap installed 1990 Ford Bronco - cowl in place 1990 Ford Bronco - disconnecting the washer pump 1990 Ford Bronco - cut the signal off 1990 Ford Bronco - pesky little frame bolts 1990 Ford Bronco - pull back plug to swap wires 1990 Ford Bronco - slide retainer out 1990 Ford Bronco - need to make mine look like this 1990 Ford Bronco - need to swap the black and red 1990 Ford Bronco - use a tool to release pins 1990 Ford Bronco - replace clip 1990 Ford Bronco - lookin good 1990 Ford Bronco - restuff plug 1990 Ford Bronco - finished 1990 Ford Bronco - hooded 1990 Ford Bronco - nice, I just took 6 years off my face 1990 Ford Bronco - match gaps 1990 Ford Bronco - matchgaps2 1990 Ford Bronco - clip time 1990 Ford Bronco - clip install 1990 Ford Bronco - grunt 1990 Ford Bronco - out in street 1990 Ford Bronco - bolt radiator back up 1990 Ford Bronco - bolt shroud on 1990 Ford Bronco - install lights and grill 1990 Ford Bronco - slide the clip on the frame bolts 1990 Ford Bronco - stagger to reduce bulk 1990 Ford Bronco - like factory 1990 Ford Bronco - brown black and either white or green depending on side 1990 Ford Bronco - cut out the turn signals 1990 Ford Bronco - inner fender 1990 Ford Bronco - air box going in
