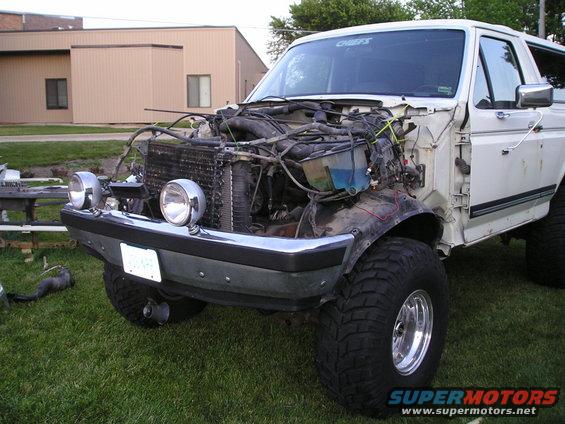

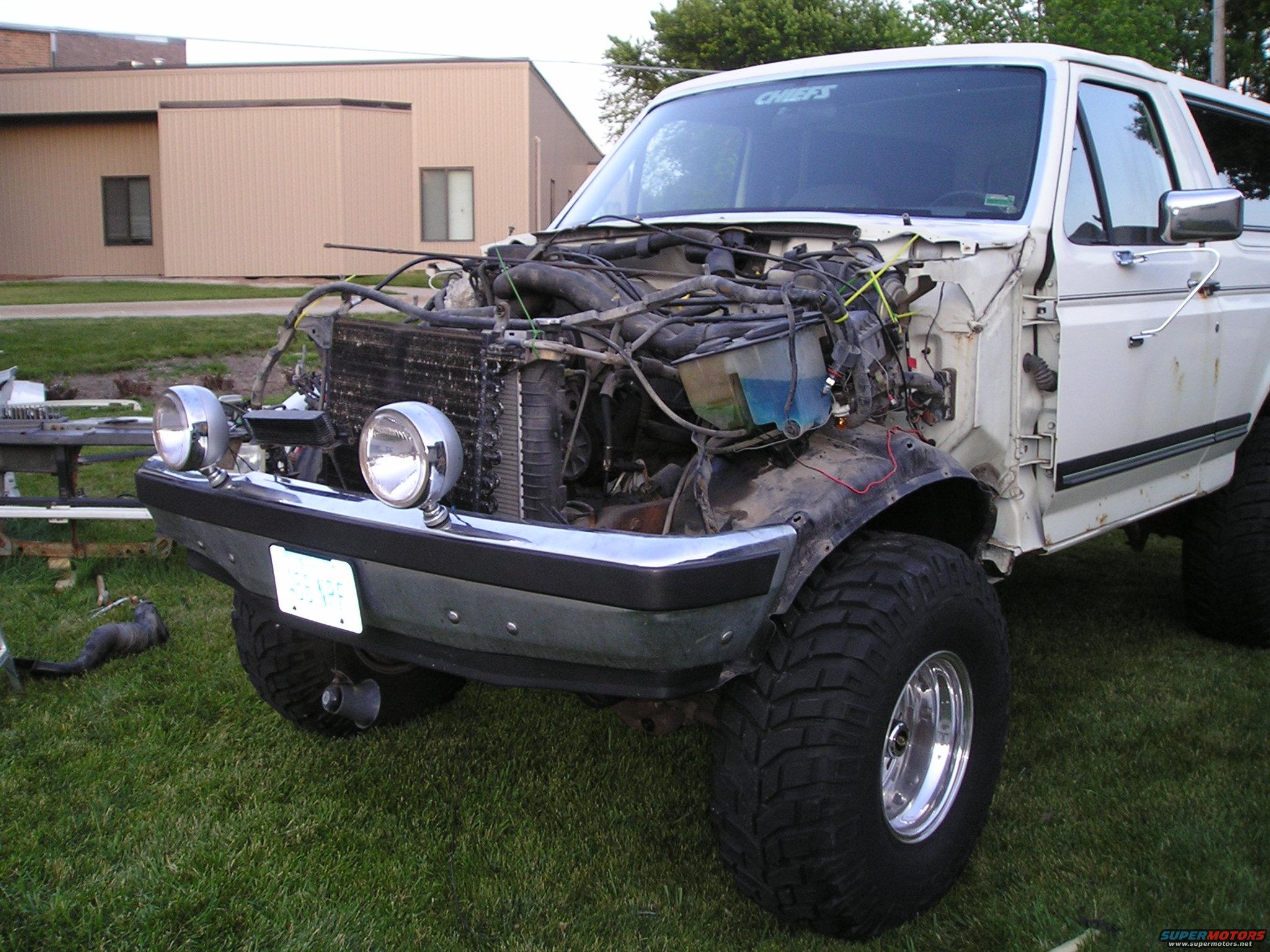

next it's the rad supports turn. I left the radiator and condenser connected as well as the tranny cooler. With a little care it can be done. First remove the four bolts that hold the fan on, remove two bolts holding shroud and remove the shroud and fan at the same time, removetwo bolts at top of radiator pull up and set tabs on frame rails, remove top bolts on condenser and one of the two lower brackets, take three bolts out that hold trans cooler, take only two bolt out of the hood latch and pop out all (three) clips holding cable, remove two bolts from washer container bracket, remove three bolts from battery tray(one is on the inner fender also remove canister), remove grounding strap (on bottom pass, if still there), remove two bolts from rad support to frame, remove last lower condenser bracket, CAREFULLY move condenser up and toward radiator and off the support, remove support.

Owner caption June 2005 · Photo 13 of 97
