Where does the red wire connect on the fog light harness?

The red wire connects to the green wire at Pin #3 of the connector (callout A).

Where does the blue wire connect?

The blue wire connects to the thin blue wire at Pin #4 (callout B).

Where does the black wire go?

The black wire connects to ground, shown at a chassis bolt location (callout C).

Does this diagram apply if my truck has a factory alarm?

No: the caption states this is the 'Diagram without Factory Alarm'; the harness connects to the switch.

Home/ Registry/ Ford/ F-100/ 1973-1979/ 1974 Ford F-100/ Photo supermotors.net/registry/media/1045297

Toyota Tundra Fog Light Harness Wiring - Pin 3/4 Connections, No Alarm (Fig 10)

Annotated install photo showing fog-light wire connection steps over a harness

‹ ›

Reference · 1973-1979 F-100All 1 service procedures

Toyota Tundra Fog Light Harness Wiring - Pin 3/4 Connections, No Alarm (Fig 10)

1service procedures1973-1979 Ford F-100 More reference

Brochure

Ford Parts Shipping Label 1982 - Part No. C6DZ 6675A, Carrollton TX Depot

Spec plate

Ford F-100 Body Mount Cross-Section Diagram - Punch, Bushing & Bolt Layout

Schematic

Rotated truck loading data page with option weight table, cargo weight ratings and center of gravity zone colu

Manual page

Photo-based installation instruction showing labeled steps to connect red, blue, and black fog-light wires to the vehicle harness.

Part of 1973-1979 Ford F-100 Service Procedures

AI caption January 2015 · Photo 21 of 21

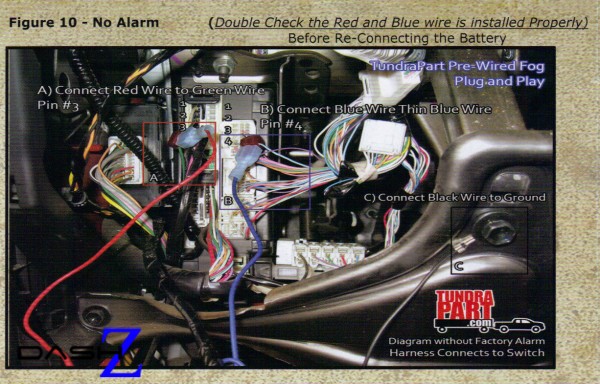

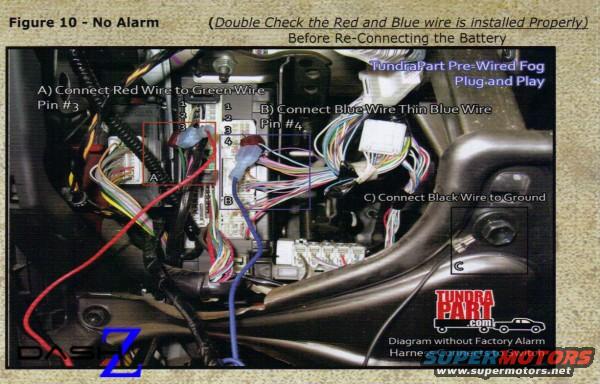

This document is an annotated installation photograph (labeled 'Figure 10 - No Alarm') from TundraPart.com showing how to connect a pre-wired plug-and-play fog light harness inside a Toyota Tundra dash/kick-panel area. The photo shows the vehicle's interior wiring harness and connector block with three lettered callouts: (A) connect the harness's Red wire to the Green wire at connector Pin #3; (B) connect the Blue wire to the thin Blue wire at Pin #4; and (C) connect the Black wire to a ground point, shown at a chassis bolt. A prominent warning instructs the installer to double-check that the Red and Blue wires are installed properly before re-connecting the battery. Captions note this diagram applies to vehicles WITHOUT a factory alarm, and that the harness connects to the switch. Connector pin positions 1 through 4 are marked on the photo. The image carries a 'DASZ' watermark and TundraPart.com branding. Readers can learn the exact wire-to-wire and pin assignments needed to complete step 11 of a Tundra fog light installation on a non-alarm-equipped truck, plus the ground location and the battery reconnection precaution.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where does the red wire connect on the fog light harness?: The red wire connects to the green wire at Pin #3 of the connector (callout A).
Where does the blue wire connect?: The blue wire connects to the thin blue wire at Pin #4 (callout B).
Where does the black wire go?: The black wire connects to ground, shown at a chassis bolt location (callout C).
Does this diagram apply if my truck has a factory alarm?: No: the caption states this is the 'Diagram without Factory Alarm'; the harness connects to the switch.
What should I check before reconnecting the battery?: Double-check that the red and blue wires are installed properly before re-connecting the battery.
