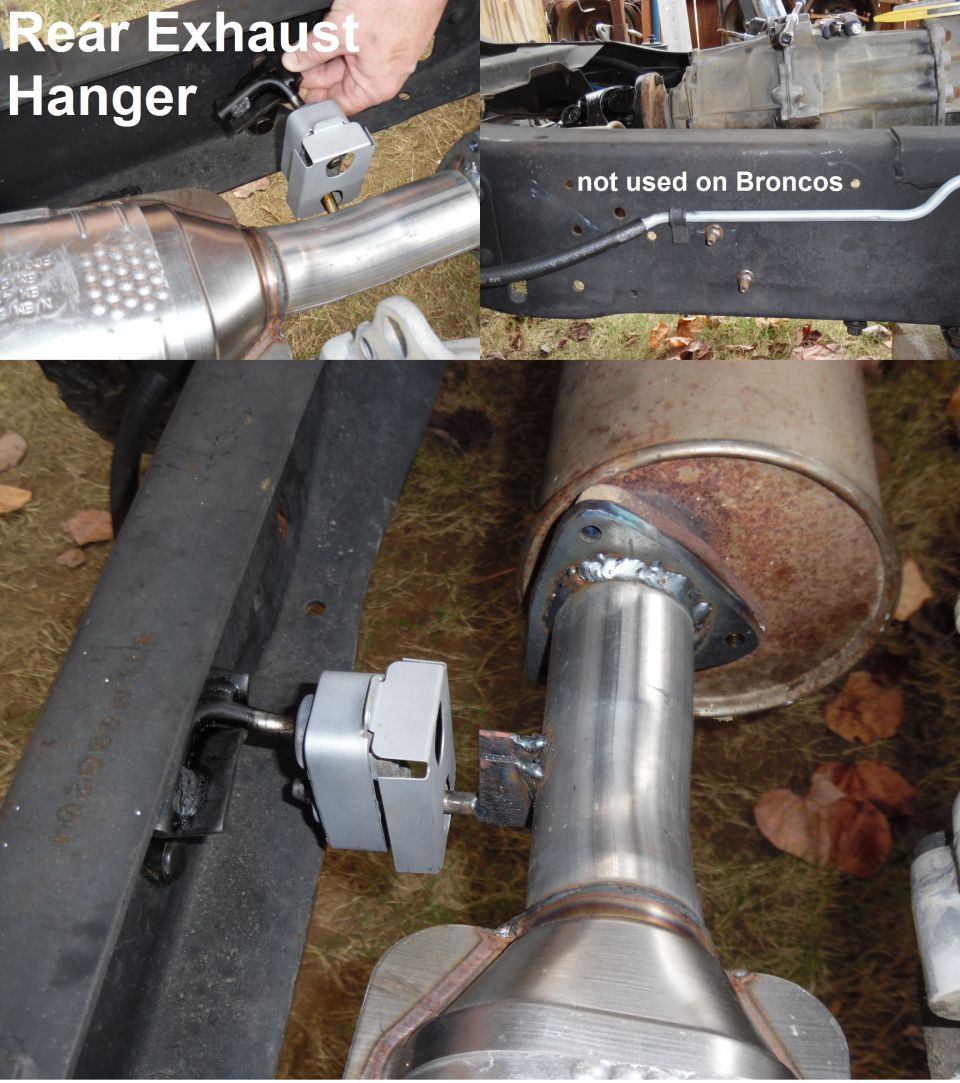

08muffler15y.jpg The factory only put this hanger (E6TZ-5A246-B) on F-series Y-pipes, but I think it's a good idea for Broncos, too.  I welded the rod on the Y-pipe such that the rubber hanger angles slightly forward; this will allow the pipe to extend rearward as it heats up.  My '83 also has this support because I used an F150 Y-pipe when I swapped in the used 4.9L.

[url=http://www.supermotors.net/registry/media/1069073][img]http://www.supermotors.net/getfile/1069073/thumbnail/08exhhngr.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/72365_1][img]http://www.supermotors.net/getfile/72365/thumbnail/exhaust5.8l96.jpg[/img][/url] .

This was the last thing to weld on before painting this Y-pipe.  The hardest part was locating the holes to drill in the frame, but eventually, I cheated by knocking the studs out of the bracket.

[url=http://www.supermotors.net/registry/media/1072054][img]http://www.supermotors.net/getfile/1072054/thumbnail/08muffler11y.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/1072138][img]http://www.supermotors.net/getfile/1072138/thumbnail/08muffler20y.jpg[/img][/url]

Now I can put that '96 muffler back on my '83 (when it stops raining).
08muffler15y.jpg | Hits: 985 | Posted on: 11/16/15 | View original size (1.62 MB)

The factory only put this hanger (E6TZ-5A246-B) on F-series Y-pipes, but I think it's a good idea for Broncos, too. I welded the rod on the Y-pipe such that the rubber hanger angles slightly forward; this will allow the pipe to extend rearward as it heats up. My '83 also has this support because I used an F150 Y-pipe when I swapped in the used 4.9L.

. .

This was the last thing to weld on before painting this Y-pipe. The hardest part was locating the holes to drill in the frame, but eventually, I cheated by knocking the studs out of the bracket.

.

Now I can put that '96 muffler back on my '83 (when it stops raining).
