What vehicle and engine does this A/C parts diagram cover?

It covers the 1967 Cougar with the 8-cylinder 289 engine, showing air conditioner parts in the engine compartment (integral system).

What is the base part number for the A/C compressor shown?

The compressor is identified by part number 19703.

Are there different belt arrangements shown?

Yes, two belt (8620) routing insets are shown: one labeled 'A/C WITH P/S' and one labeled 'A/C WITHOUT P/S'.

What do the dot and asterisk symbols on the diagram mean?

Parts marked with a dot refer to group 19C705-8 for service assembly or service details; parts marked with an asterisk are also supplied in the 19B684 gasket kit.

What part number identifies the condenser in this diagram?

The condenser is labeled with part number 19712, with the receiver/drier assembly nearby labeled 19959.

Home/ Registry/ Mercury/ Cougar/ 1967-1970/ “THE TOOL”/ Photo supermotors.net/registry/media/1094746

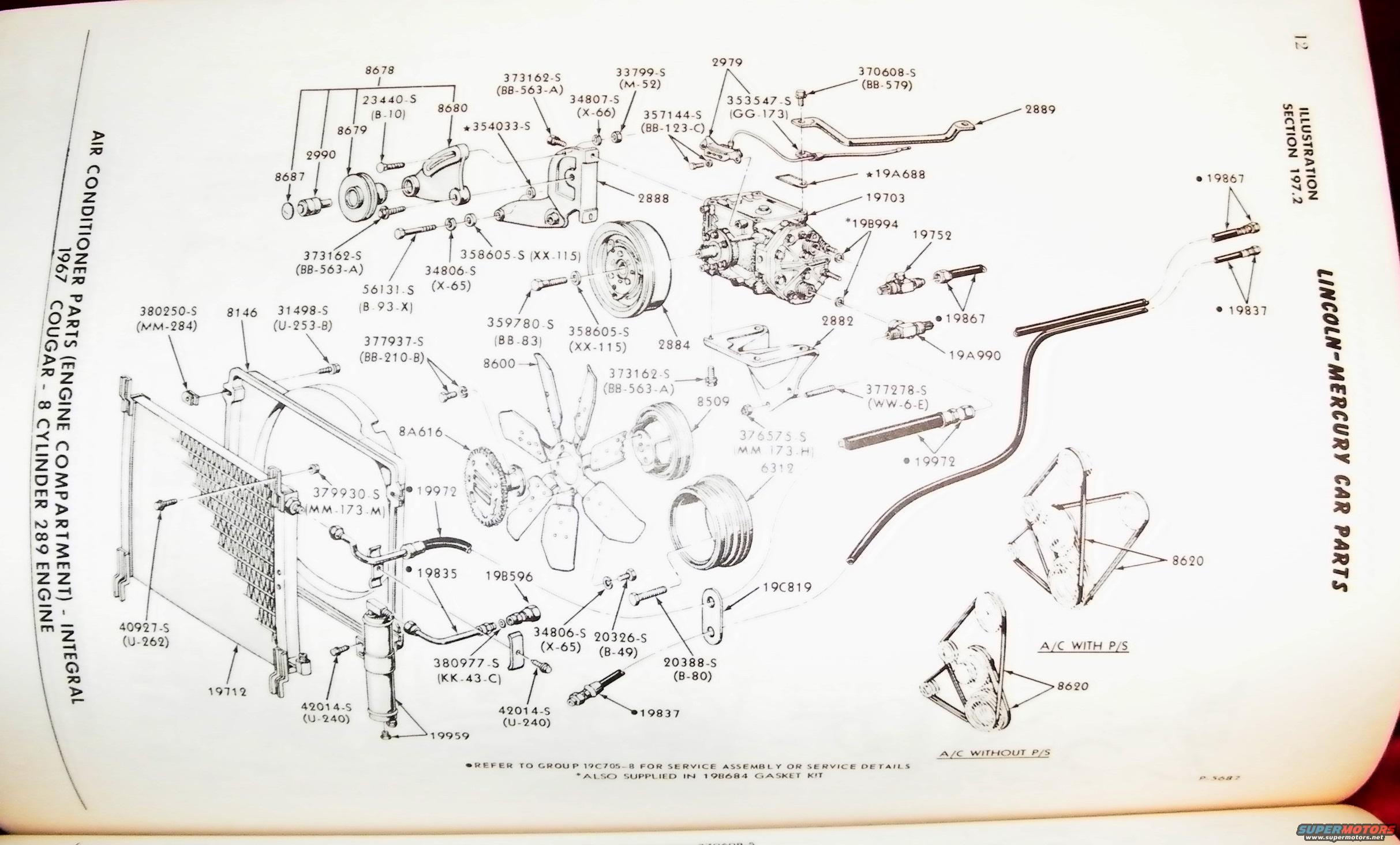

1967 Mercury Cougar 289 V8 A/C Engine Compartment Parts Exploded Diagram

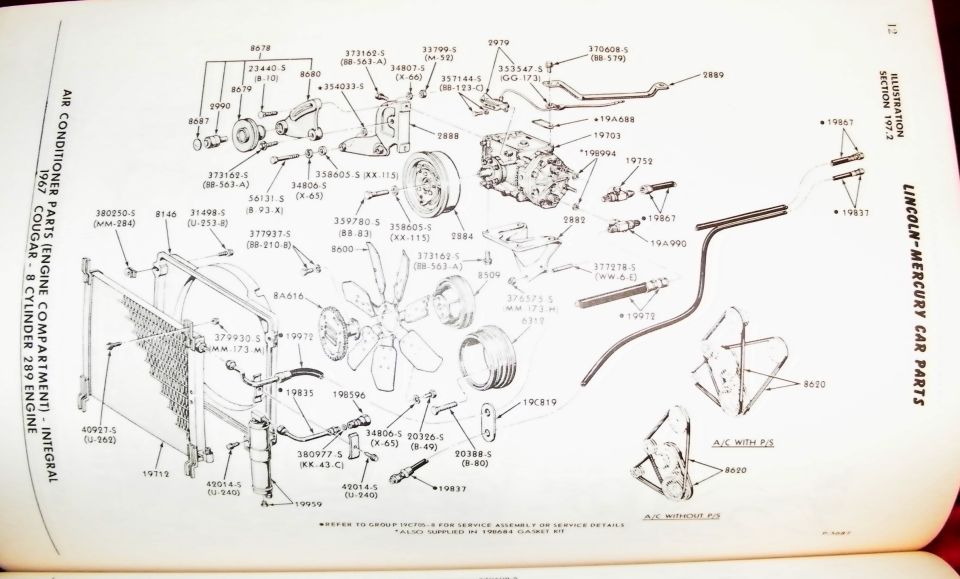

Exploded parts diagram of air conditioning components for a Lincoln-Mercury V8 engine

‹ ›

Exploded parts breakdown of air-conditioning components and brackets for an integral 1967 Cougar V8 engine with part numbers.

AI caption August 2016 · Photo 122 of 129

This is a page (page 12, Illustration Section 197.2) from a Lincoln-Mercury Car Parts illustration catalog showing an exploded parts diagram of the Air Conditioner Parts (Engine Compartment) - Integral for the 1967 Mercury Cougar with the 8-cylinder 289 engine. The exploded view illustrates the A/C compressor (19703), clutch pulley (2884), mounting brackets (2888, 2882), idler pulley (8509), crankshaft pulley (6312), fan (8600), fan clutch/spacer (8A616), fan shroud (8146), condenser (19712), receiver/drier (19959), refrigerant hoses and lines (19835, 19867, 19837, 19972, 19B596), adjusting arms (2889, 2979), and related hardware with fastener part numbers such as 373162-S (BB-563-A), 34806-S (X-65), 358605-S (XX-115), and 42014-S (U-240). Two smaller insets show drive belt (8620) routing for A/C with power steering and A/C without power steering. Footnotes indicate that items marked with a dot are covered in group 19C705-8 for service assembly details and items marked with an asterisk are also supplied in the 19B684 gasket kit. This page allows a restorer to identify original Ford part base numbers and fastener specifications for the factory integral air conditioning system on a 289-equipped 1967 Cougar.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What vehicle and engine does this A/C parts diagram cover?: It covers the 1967 Cougar with the 8-cylinder 289 engine, showing air conditioner parts in the engine compartment (integral system).
What is the base part number for the A/C compressor shown?: The compressor is identified by part number 19703.
Are there different belt arrangements shown?: Yes, two belt (8620) routing insets are shown: one labeled 'A/C WITH P/S' and one labeled 'A/C WITHOUT P/S'.
What do the dot and asterisk symbols on the diagram mean?: Parts marked with a dot refer to group 19C705-8 for service assembly or service details; parts marked with an asterisk are also supplied in the 19B684 gasket kit.
What part number identifies the condenser in this diagram?: The condenser is labeled with part number 19712, with the receiver/drier assembly nearby labeled 19959.
