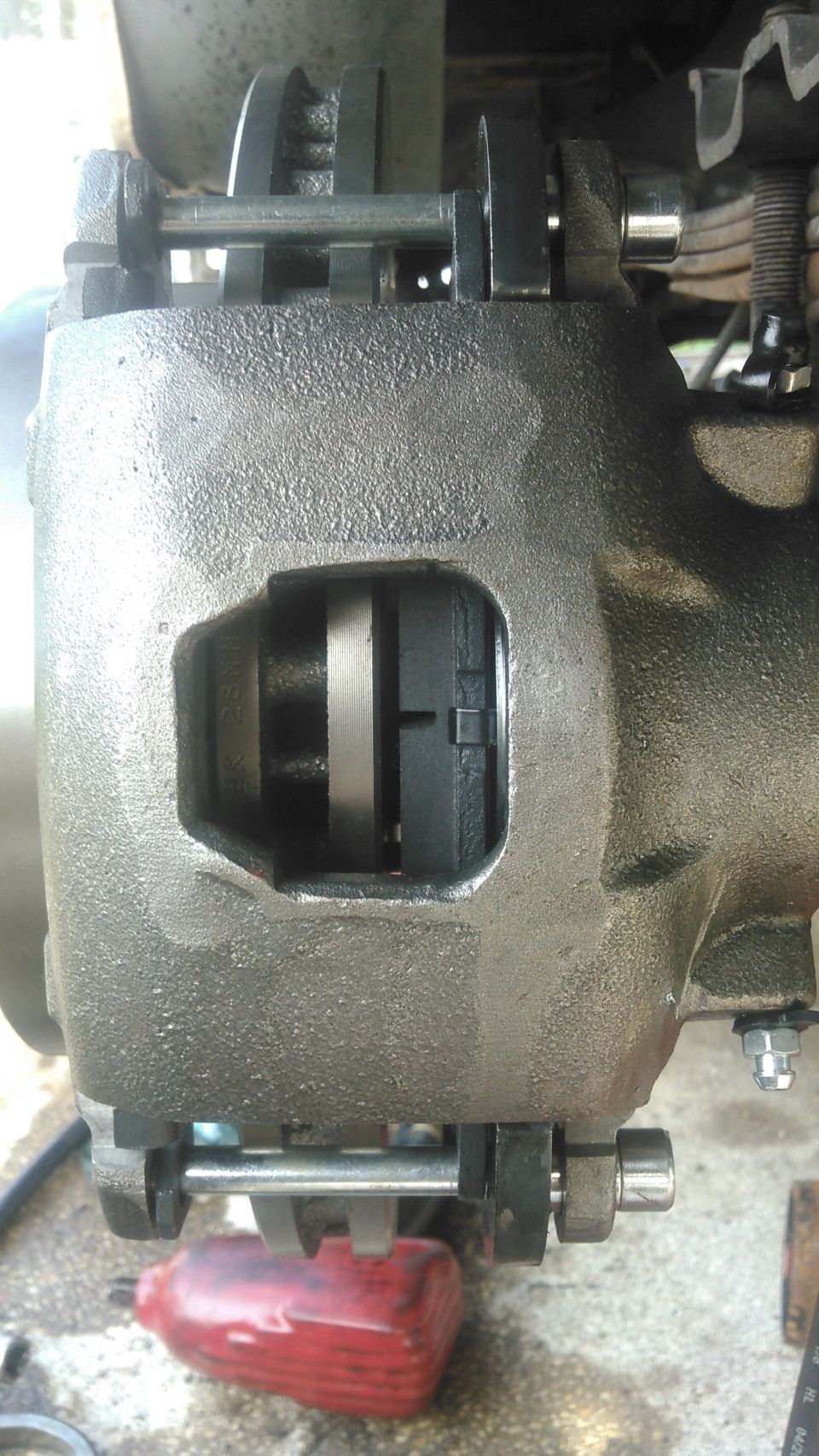

this is the brakes completely mocked up

note that as the pads wear, the caliper will slide inward. when shimming the axle keep in mind that you want the caliper tabs to be closer to the bracket so it will slide as the pads wear. but you also want some room so you can assembly the caliper easilly
