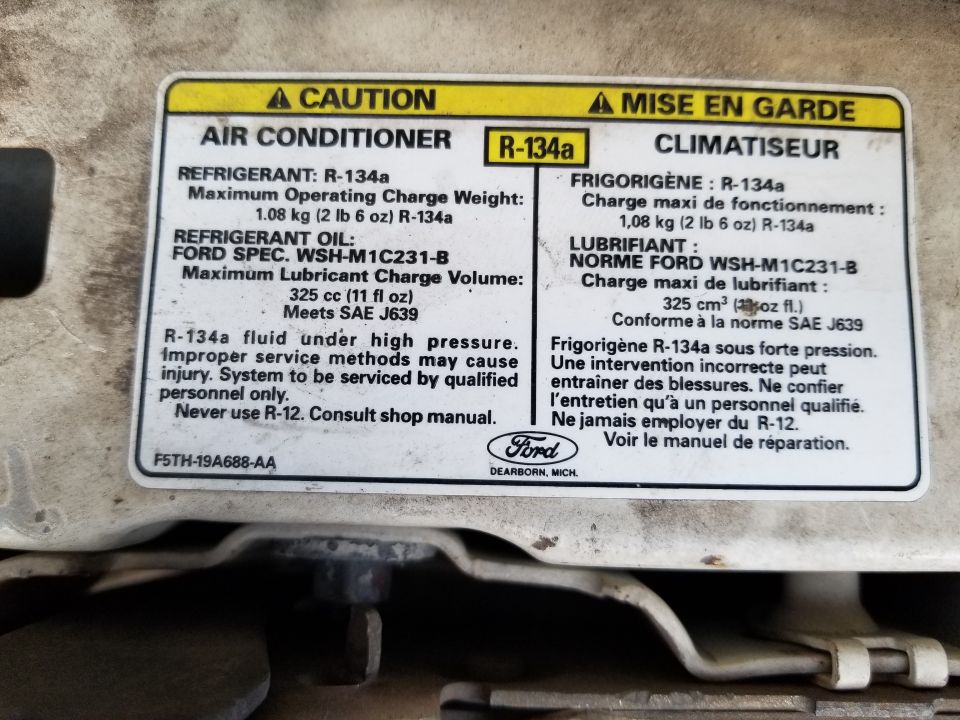

Refrigerant charge label
IF THE IMAGE IS TOO SMALL, click it.

Per TSB 94-19-20, the charge shown is correct: 2 lbs 6 oz (38oz) of R-134a, & 11oz of PAG-46 per TSB 97-10-05. For some reason, TSB 97-15-5 does not indicate the correct oil quantity.
http://www.bbbind.com/free_tsb.html

Owner caption November 2018 · Photo 103 of 118
