The engine has surprisingly-few leaks, but the transmission pan…

$The engine has surprisingly-few leaks, but the transmission pan is damp. The metal dragging against the driveshaft is relatively silent. We still haven\\'t figured out how the frame got dented here, under the RHF seat. Apparently, many of the holes in the floor were taped before being flooded with Bondo. Then, more steel was screwed, welded, & seam-sealed on top of the driver's floor (obscuring that body mount bolt).$ ‹ ›

As-Was & RepairsView all 78

Undercarriage view showing a hitch receiver and rear axle assembly

Undercarriage view showing a leaf spring, axle, and tire of a vehicle

Close-up of a vehicle's suspension, showing the axle housing, spring, and brake drum

Undercarriage view of a vehicle showing the frame, suspension, differential, and a trailer hitch receiver

Trailer hitch receiver mount attached to vehicle frame, showing square receiver tube

Close-up of a dirty, worn suspension component with a tire visible in the background

close-up of vehicle suspension linkage and shock absorber

Close-up of vehicle radiator and rusty frame components

Close-up of vehicle underbody showing suspension parts and rusty exhaust pipe

78photos in this albumView all

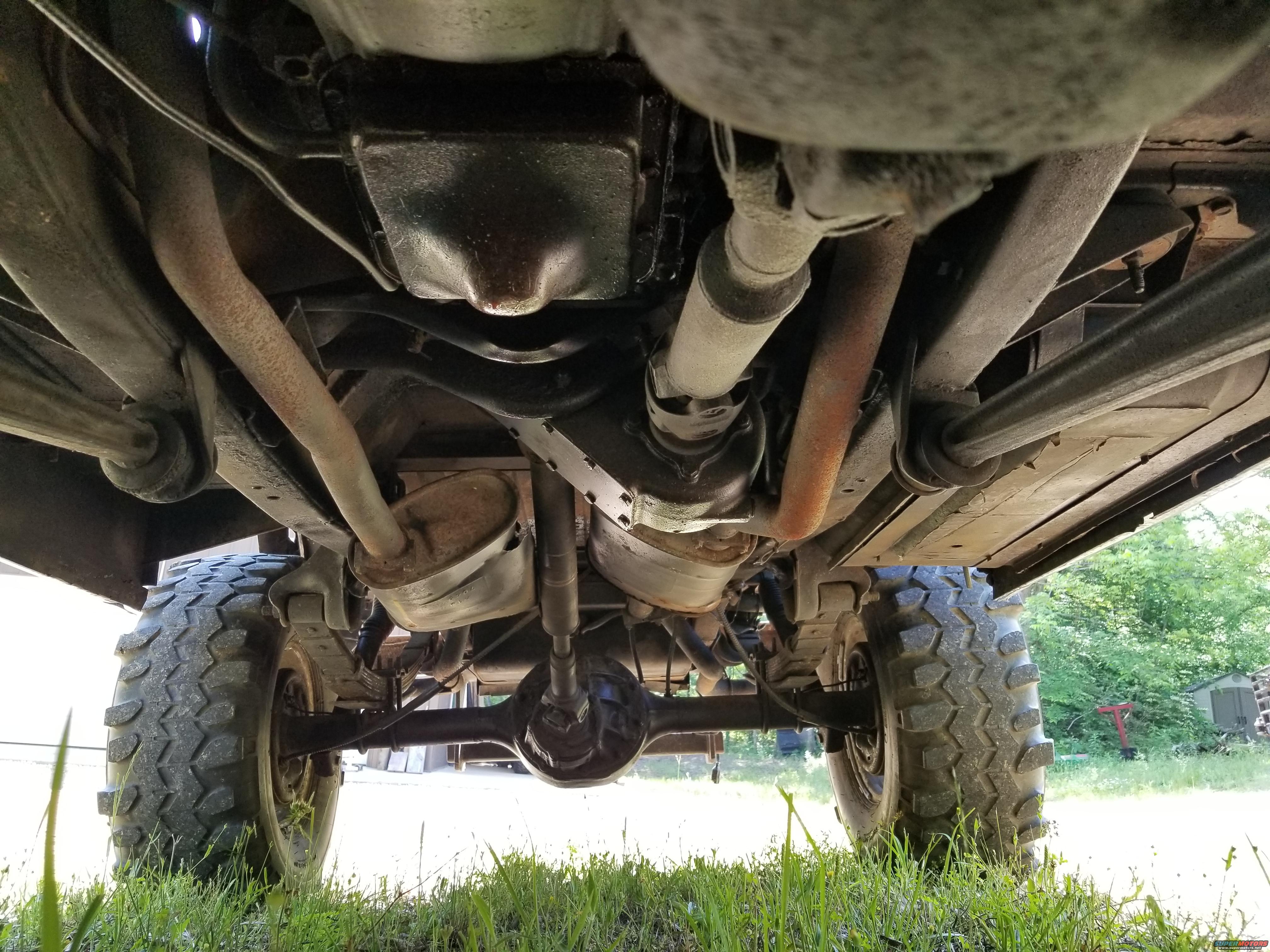

The engine has surprisingly-few leaks, but the transmission pan is damp. The metal dragging against the driveshaft is relatively silent. We still haven\\'t figured out how the frame got dented here, under the RHF seat. Apparently, many of the holes in the floor were taped before being flooded with Bondo. Then, more steel was screwed, welded, & seam-sealed on top of the driver's floor (obscuring that body mount bolt).

Owner caption June 2019 · Photo 23 of 147
