At this point, I've unbolted the shock, removed the front diff.…

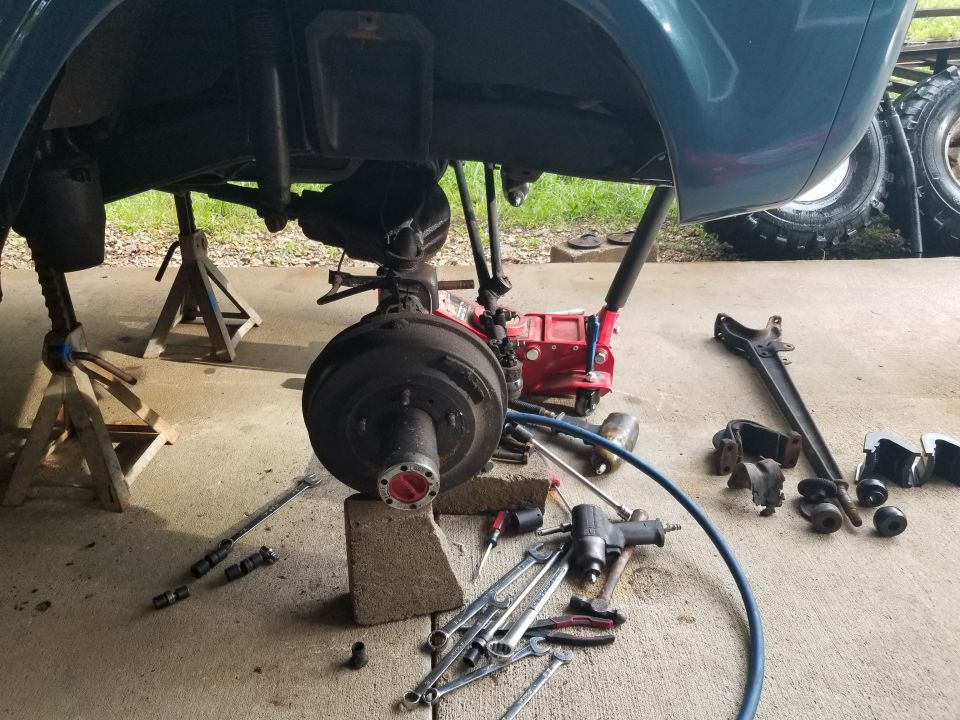

At this point, I've unbolted the shock, removed the front diff. vent nipple so there's more slack for the hose, removed spring upper retainer, removed the radius arm cotter pin & nut, and supported the frame on jack-stands so the spring is unloaded & loose. The spring retainers should be marked to make installation easier later. I removed the 2 lower retainer bolts, retainer, spring, & cup; then the 4 bolts on the front cap of the Right radius arm. I used a ratchet strap to pull the axle forward JUST ENOUGH to get that radius arm out.

Owner caption June 2019 · Photo 87 of 147
