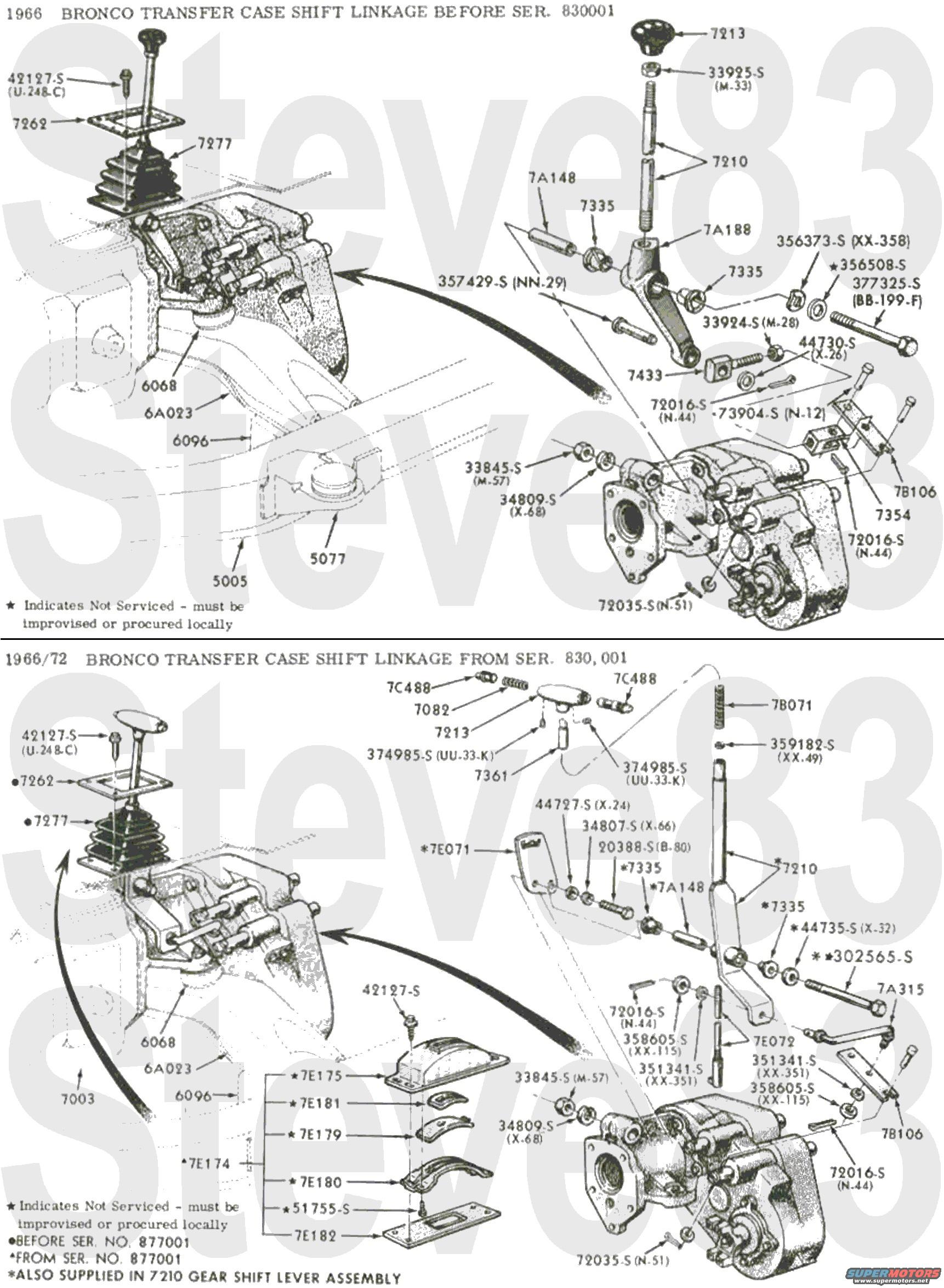

1966 Bronco transfer case shift linkage diagram before serial 83…

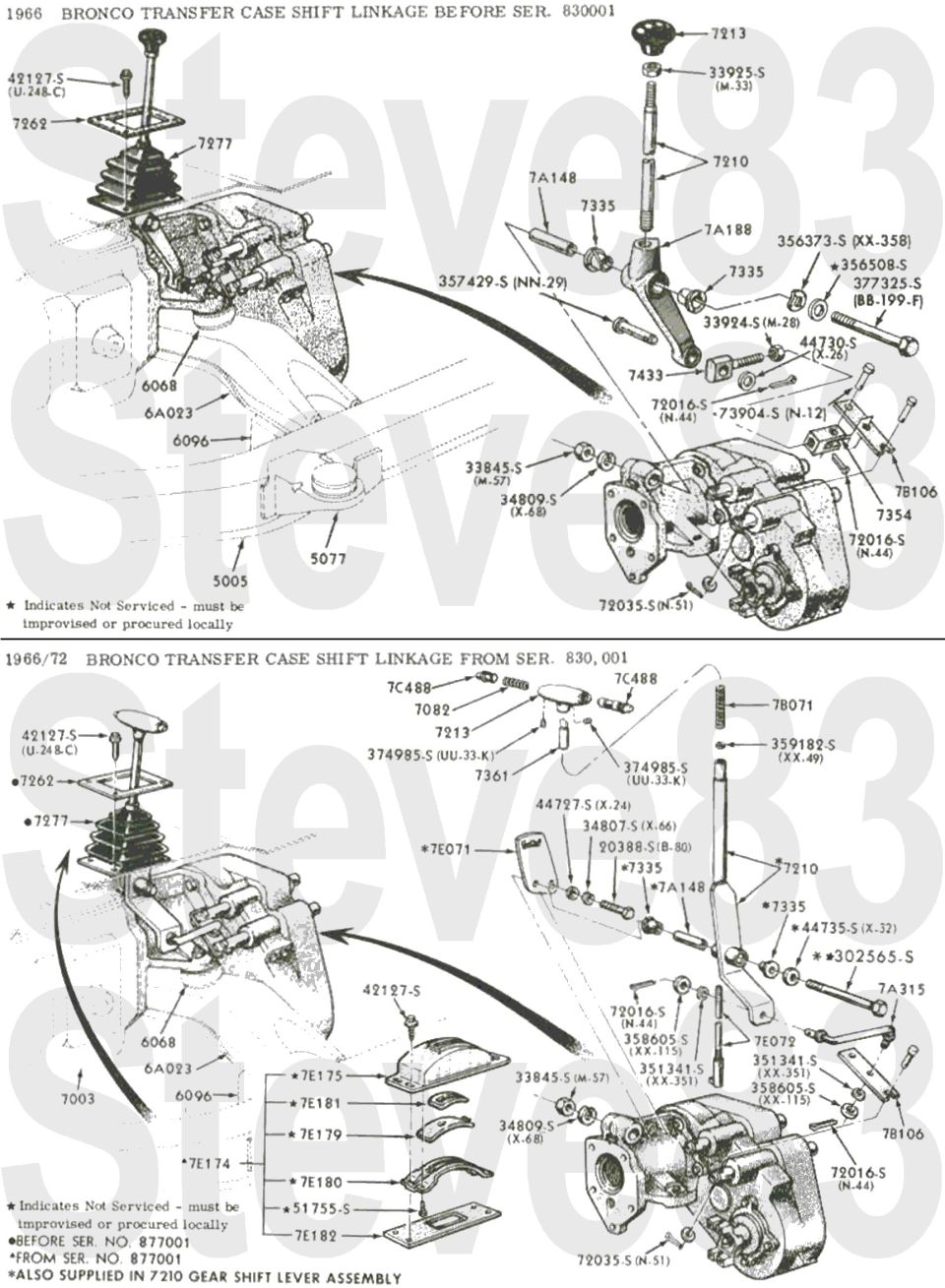

1966 Bronco transfer case shift linkage diagram before serial 830001 and 1966/72 linkage from serial 830001

'66-72 Transfer Case Shifters T-shift J-shift
IF THE IMAGE IS TOO SMALL, click it.

. . .

Owner caption · Photo 173 of 198

Is this accurate? Sign in to help verify it.
