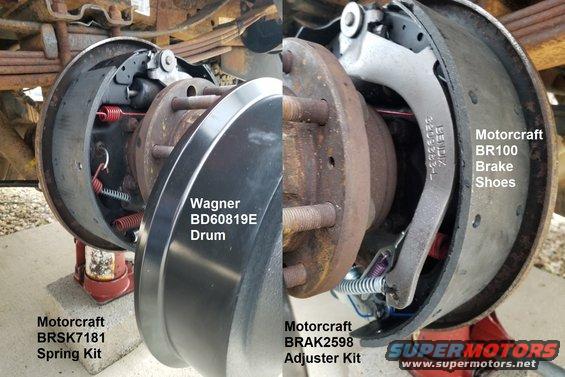

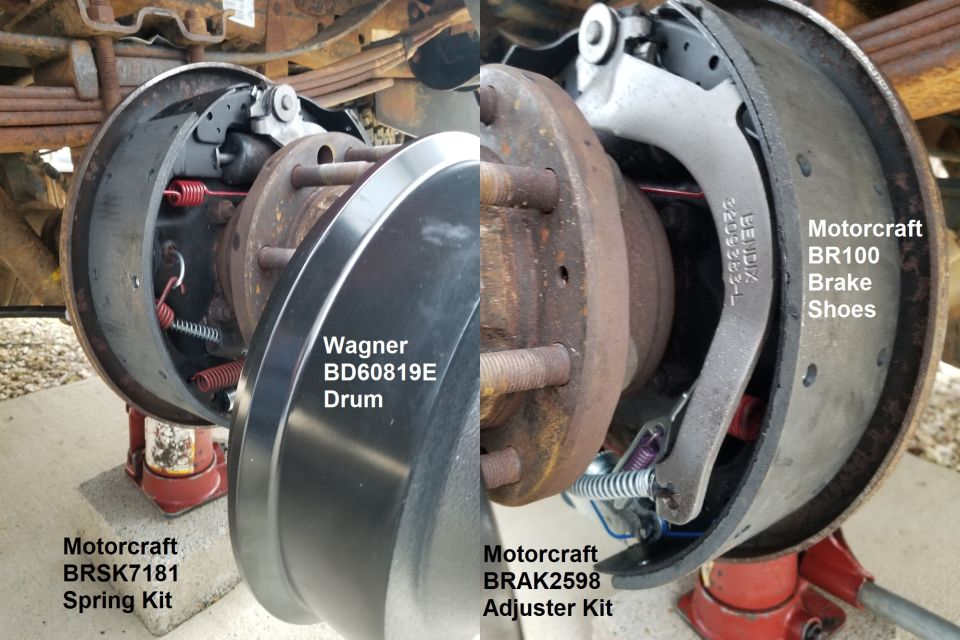

Comparison of Wagner BD60819E drum and Motorcraft BR100 brake sh…

I found it easiest to grease & hang the front shoe; then connect the upper retractor spring, grease, and rotate the rear shoe onto the pushrod; then hook the lower spring across them; then install the autoadjuster; then the autoadjuster arm & its spring; then hook the e-brake cable to its arm; then hang that stack of parts (bolt, washer, spring, e-brake arm, e-brake cam, autoadjuster cable) last. The final step is to raise the autoadjuster arm enough to hook its cable (which must be routed over the guide on the rear shoe). All points of metal-to-metal contact are greased, but not so much that it could contaminate the friction surfaces.
IF THE IMAGE IS TOO SMALL, click it.



The only tools needed are:
Snap-On B1359B or equivalent for shoe retainer springs
1/2" socket & ratchet for e-brake lever nut
BP hammer to drive e-brake lever bolt splines in (prybar during disassembly)
Drum caliper (to pre-set autoadjuster) similar to https://www.amazon.com/dp/B001GIUCSK



Before mounting a new or old drum or wheel, clean ALL their mounting surfaces as Ford recommends:
