Home/ Registry/ Ford/ F-250/ 1992-1997/ “Big Red”/ Photo supermotors.net/registry/media/1174959

After a lot of research, I put this together, showing how the 9-…

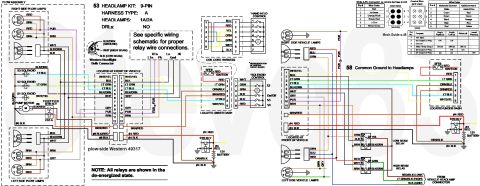

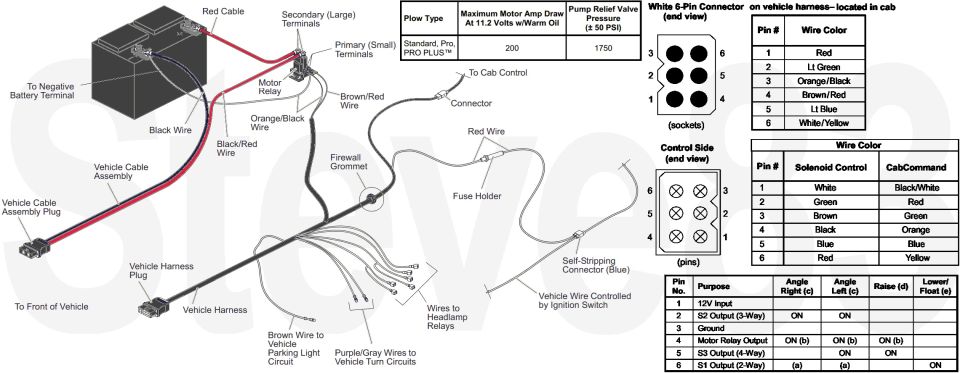

After a lot of research, I put this together, showing how the 9-pin plow connector is wired to the 6-pin controller. IF THE IMAGE IS TOO SMALL, click it.
After a lot of research, I put this together, showing how the 9-pin plow connector is wired to the 6-pin controller. IF THE IMAGE IS TOO SMALL, click it.Original file
After a lot of research, I put this together, showing how the 9-pin plow connector is wired to the 6-pin controller. IF THE IMAGE IS TOO SMALL, click it.

Western UltraMount 7-foot; PlowView all 15

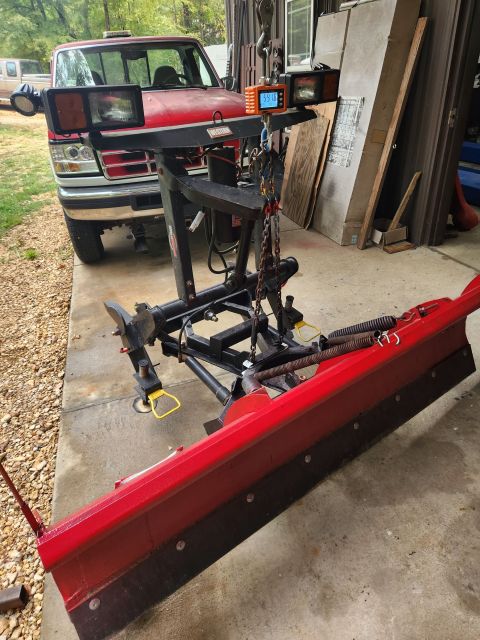

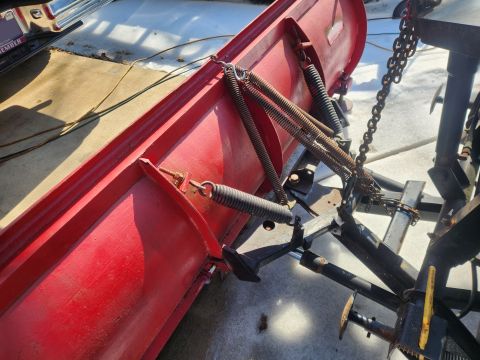

1997 Ford F-250 photo 1997 Ford F-250 photo Plow mount with chains and hydraulic cylinder attached to a vehicle Solenoid valve assembly with electrical connections and torque specs diagram. Wires are green, blue, and white 1997 Ford F-250 photo 1997 Ford F-250 photo Red and white pickup truck with a snow plow attached, driving on a snowy road. Another white vehicle is visibl 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 1997 Ford F-250 photo 15photos in this albumView all

After a lot of research, I put this together, showing how the 9-pin plow connector is wired to the 6-pin controller.
IF THE IMAGE IS TOO SMALL, click it.

Owner caption · Photo 194 of 195

Is this accurate? Sign in to help verify it.
