16 acm /w sat. - any sat 16 acm will work if you understand the bits needed for with or without sync and 4.2" screen. i took one from a limited 2017 and compared a few vins to find out what is needed for base model acm's to work correctly in interceptor.
sat cable from lower a-pillar, behind glove box to the back of the radio, this cable is about 3 feet long.

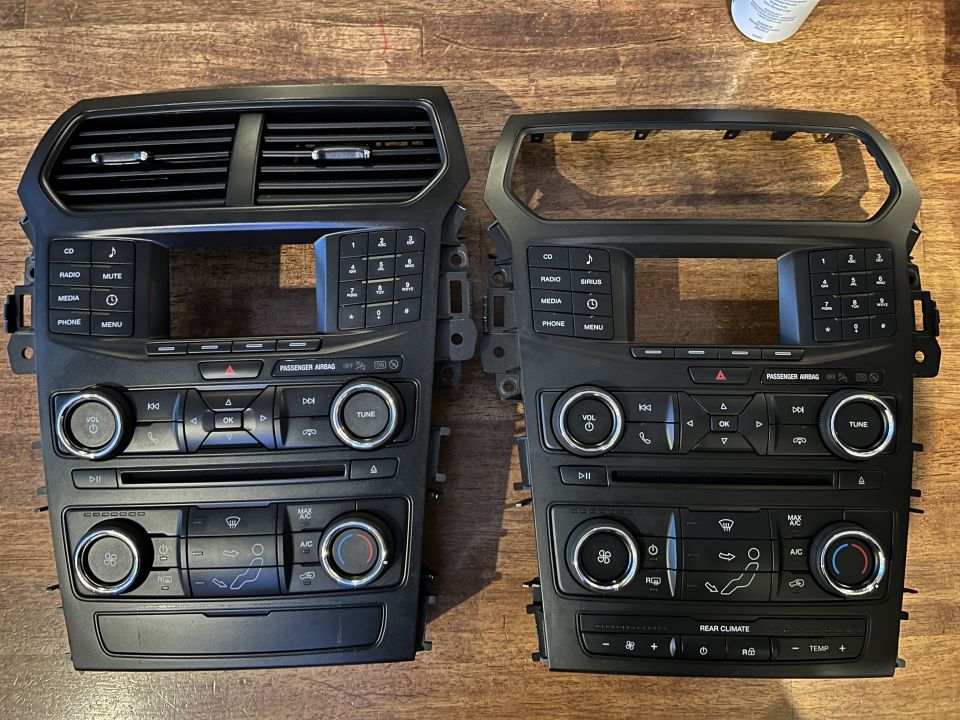

fcimb /w 4.2" screen and w/ sat. If you don't have rear a/c you will need to disassemble the entire back and insert the without aux a/c lower bezel cover plate.
programming (confirmed on 2016 /w sync):
ACM 727-01-01 5800 2800 80
APIM preprogrammed option: enable sat radio/hd radio
FDCIM 7A5-01-01 2229 0408 00 (2269 0408 00 /w reverse sensors)
ACM programming 16-17 (work in progress) programming:
2016 /w SAT 4.2" screen
727-01-01 5800 2800 80
16-17 ACM /w sat 4.2" screen
2016: 727-03-01 14
2017: 727-03-01 2A
ACM 4.2" screen
727-04-01 0001 0255 53
