Diagram and chart of a vehicle's primary junction block fuse box.

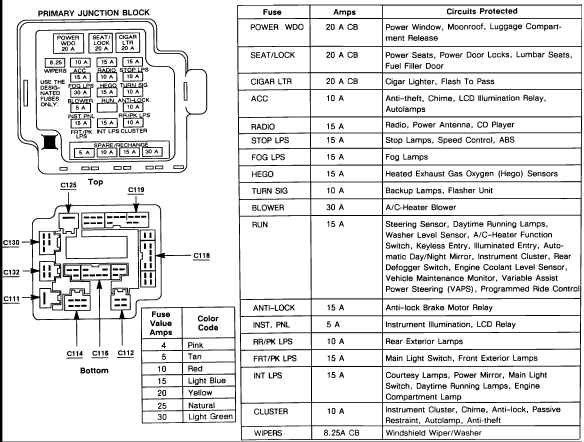

This image displays a diagram of a vehicle's primary junction block fuse box and a corresponding chart detailing fuse locations, amperage, and protected circuits. The diagram shows the layout of fuses and relays, while the chart lists specific components protected by each fuse.
