Home/ Registry/ Ford/ Thunderbird/ 1989-1997/ “SuperBlue”/ Photo supermotors.net/registry/media/1185962

Ford power distribution box legend, Fig. 7, listing fuse numbers…

Ford power distribution box legend, Fig. 7, listing fuse numbers, amps and circuits protected
Ford power distribution box legend, Fig. 7, listing fuse numbers, amps and circuits protectedOriginal file
Ford power distribution box legend, Fig. 7, listing fuse numbers, amps and circuits protected

Reference · 1989-1997 ThunderbirdAll 4 fuse & relay charts

Ford primary junction block legend, Fig. 3, listing fuses, amp ratings and circuits protected Ford primary junction block layout, Fig. 2, with fuse positions under the integrated control module Ford power distribution box legend, Fig. 7, listing fuse numbers, amps and circuits protected Ford power distribution box fuse and relay layout, Fig. 6, with 175A mega fuse and horn relay 4fuse & relay charts1989-1997 Ford Thunderbird More reference 1990 Ford Thunderbird 3.8L SC electronic engine control wiring diagram, part 1 of 4Wiring diagram 1990 Ford Thunderbird Ownercard warranty ID card with embossed VIN plate 1FABP64R2LH189858Spec plate 1990 Ford Thunderbird Super Coupe IBP transducer EGR valve and ported EGR valve test procedureService procedure Ford 1990 vehicle emission control information label with 3.8L vacuum hose routing diagramVacuum routing Innovate LC-1 wideband O2 AFR to voltage table, 7.35 to 22.39 AFR over 0.00 to 5.00 voltsManual page

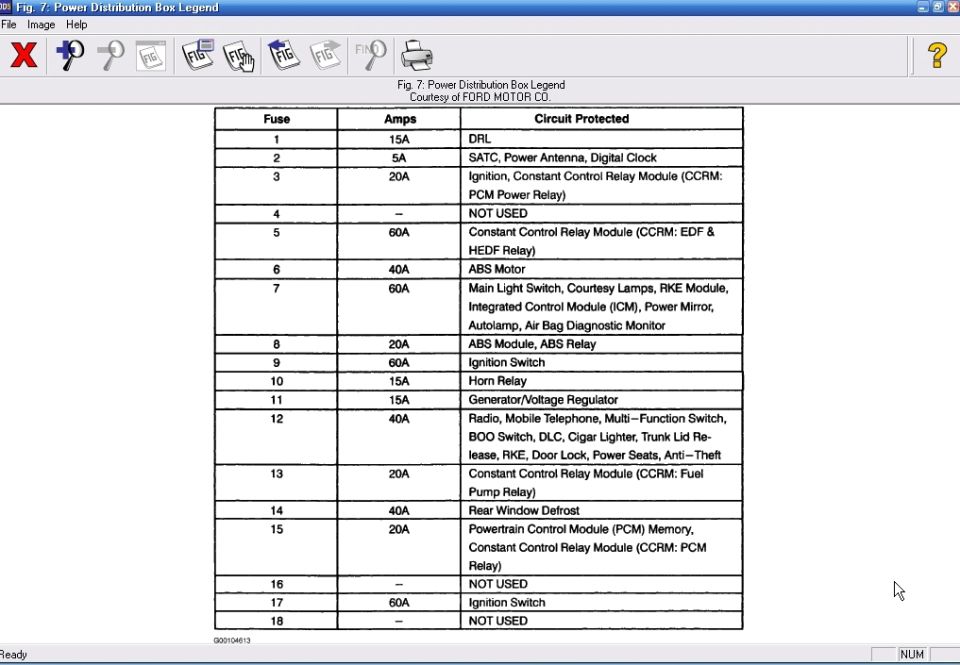

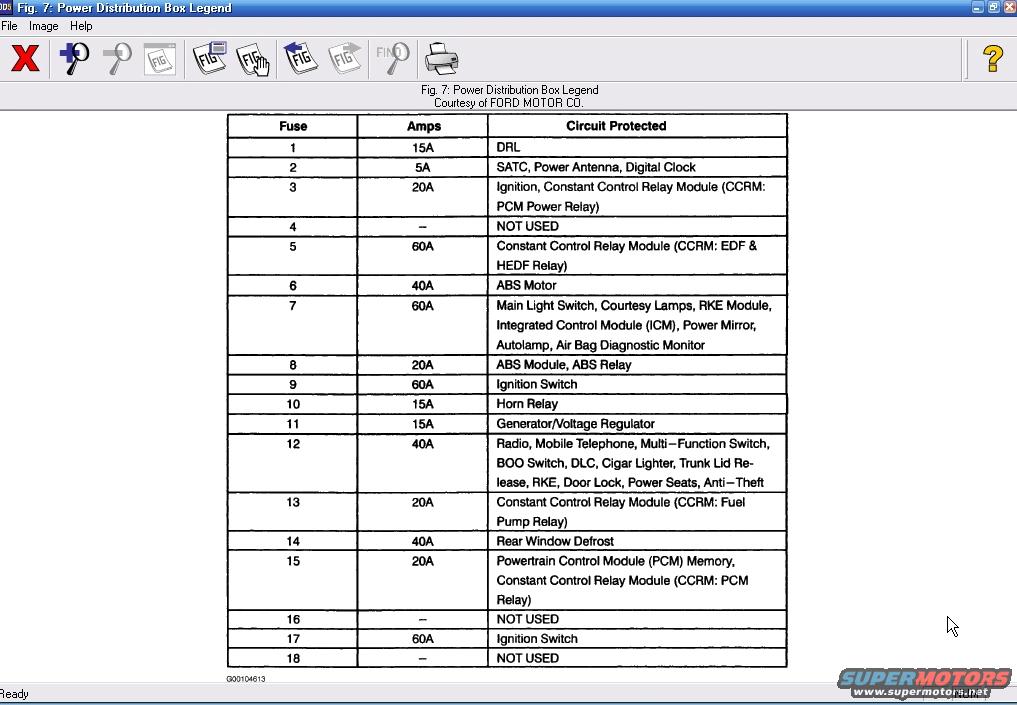

Fig. 7 power distribution box legend for fuses 1-18 with ratings from 5A to 60A covering DRL, ABS, CCRM, ignition switch and rear window defrost.

Part of 1989-1997 Ford Thunderbird Fuse & Relay Charts
