1990 Ford Thunderbird 3.8L SC electronic engine control wiring d…
.jpg)
Reference · 1989-1997 ThunderbirdAll 2 wiring diagrams

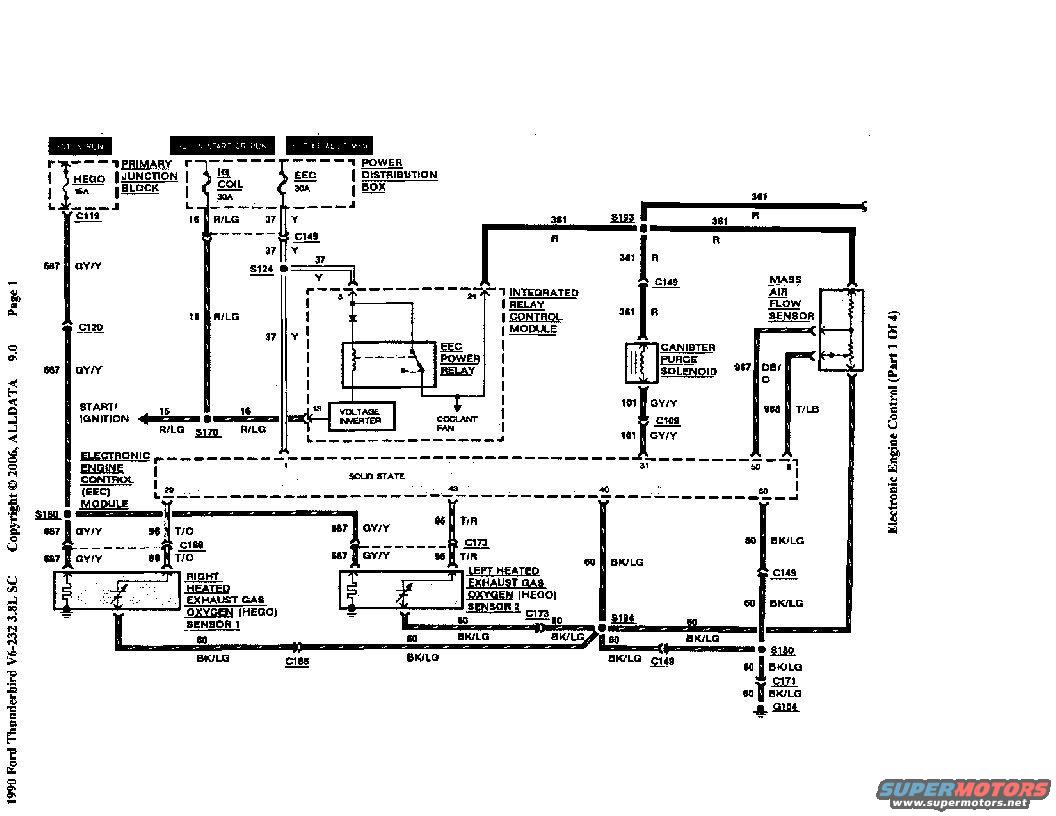

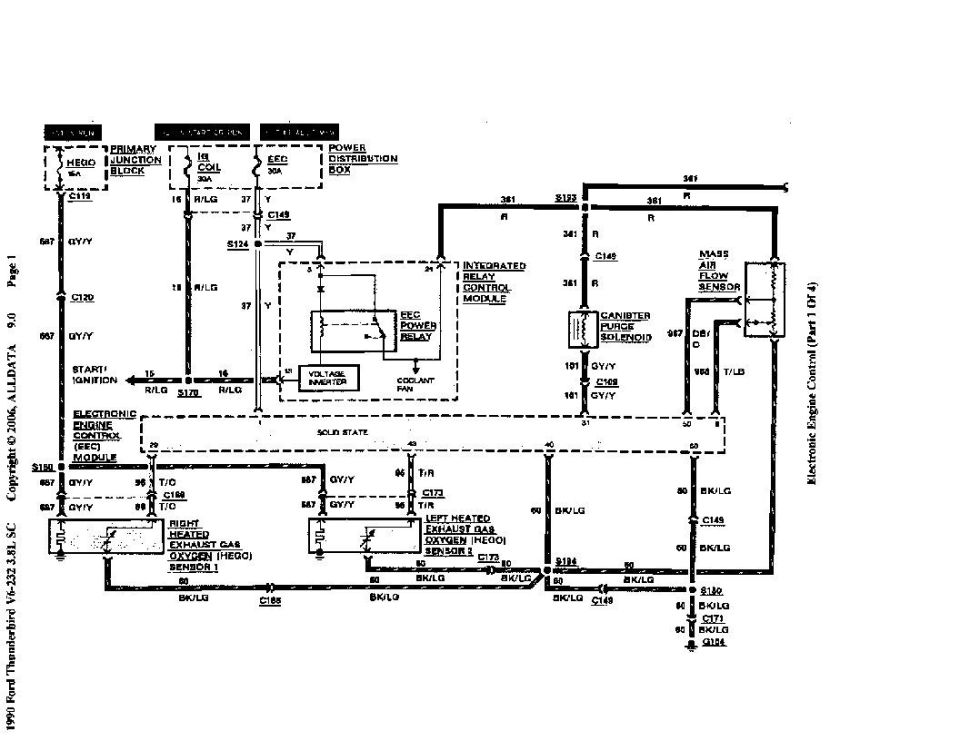

EEC wiring diagram (part 1 of 4) for the 1990 Thunderbird V6-232 3.8L SC showing the integrated relay control module, HEGO sensors and mass air flow sensor.
Part of 1989-1997 Ford Thunderbird Wiring Diagrams
