VW 020 Transmission Clutch Exploded View & Assembly Notes - Manual Page 30a-9

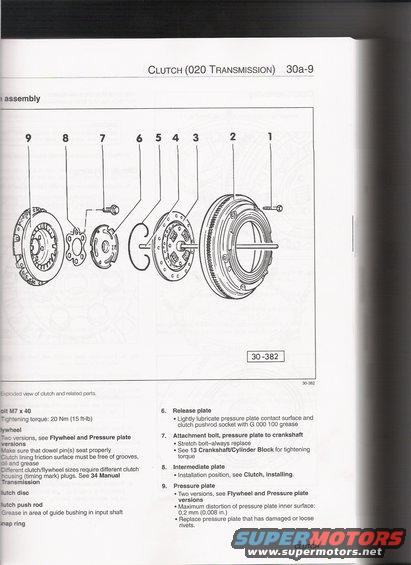

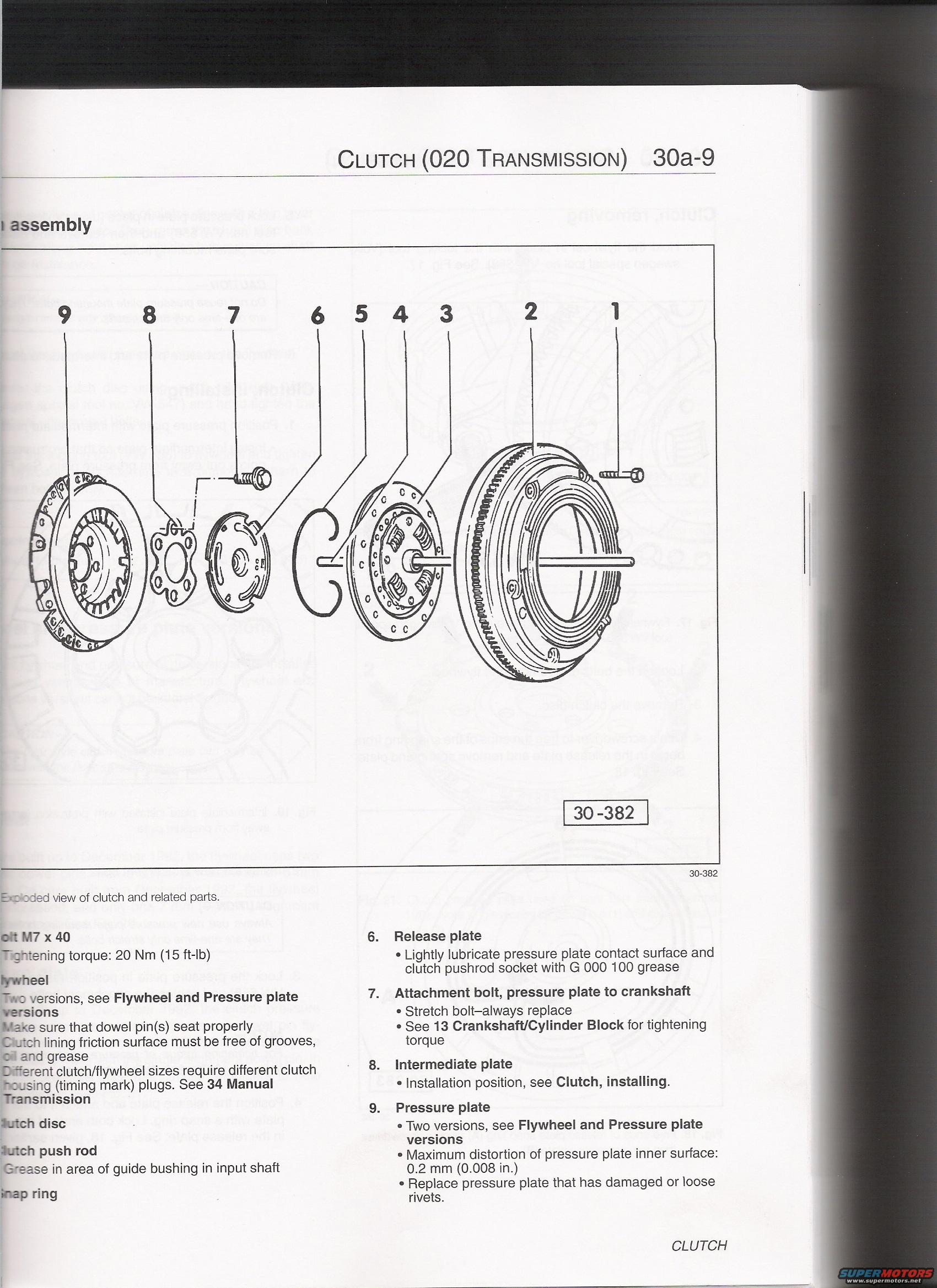

This is page 30a-9 from a service manual section titled "Clutch (020 Transmission)." It presents an exploded-view diagram (figure 30-382) of the clutch assembly and related parts, with components numbered 1 through 9. A legend identifies the parts and gives service notes: the M7 x 40 bolt tightening torque is 20 Nm (15 ft-lb); the flywheel comes in two versions (see "Flywheel and Pressure plate versions"), dowel pins must seat properly, the clutch lining friction surface must be free of grooves, oil and grease, and different clutch/flywheel sizes require different clutch housing (timing mark) plugs (see 34 Manual Transmission). The clutch push rod should be greased in the area of the guide bushing in the input shaft. The release plate's pressure plate contact surface and clutch pushrod socket should be lightly lubricated with G 000 100 grease. The pressure-plate-to-crankshaft attachment bolt is a stretch bolt that must always be replaced (torque per section 13 Crankshaft/Cylinder Block). The intermediate plate installation position is covered under "Clutch, installing." The pressure plate has two versions, a maximum inner surface distortion of 0.2 mm (0.008 in.), and must be replaced if rivets are damaged or loose. Some text on the left margin is cropped off by the scan.
