What special tool is needed to hold the flywheel when removing the clutch on a 020 transmission?

Volkswagen special tool no. VW 558 is used to lock the flywheel (and later the pressure plate) in place, as shown in Fig. 17.

Can the pressure plate mounting bolts be reused?

No. The document cautions twice that pressure plate mounting bolts are one-time only stretch bolts; they must be discarded and new bolts installed.

How should the intermediate plate be oriented during clutch installation?

Install the intermediate plate so that the protrusion (arrow in Fig. 19) points out away from the pressure plate.

Where is the tightening torque for the pressure plate attachment bolts found?

The NOTE directs the reader to section 13 Crankshaft/Cylinder Block for the tightening torque of the pressure plate attachment bolts.

How is the release plate removed?

Use a screwdriver to free the ends of the snap ring from the bores in the release plate, then remove the spring and plate (Fig. 18, callouts A and B).

Home/ Registry/ Chevrolet/ Monte Carlo/ “For Sale”/ Photo supermotors.net/registry/media/178034

VW 020 Transmission Clutch Removal & Installation Procedure - Tool VW 558

VW 020 transmission clutch manual 30a-10: clutch removing/installing with tool VW 558

‹ ›

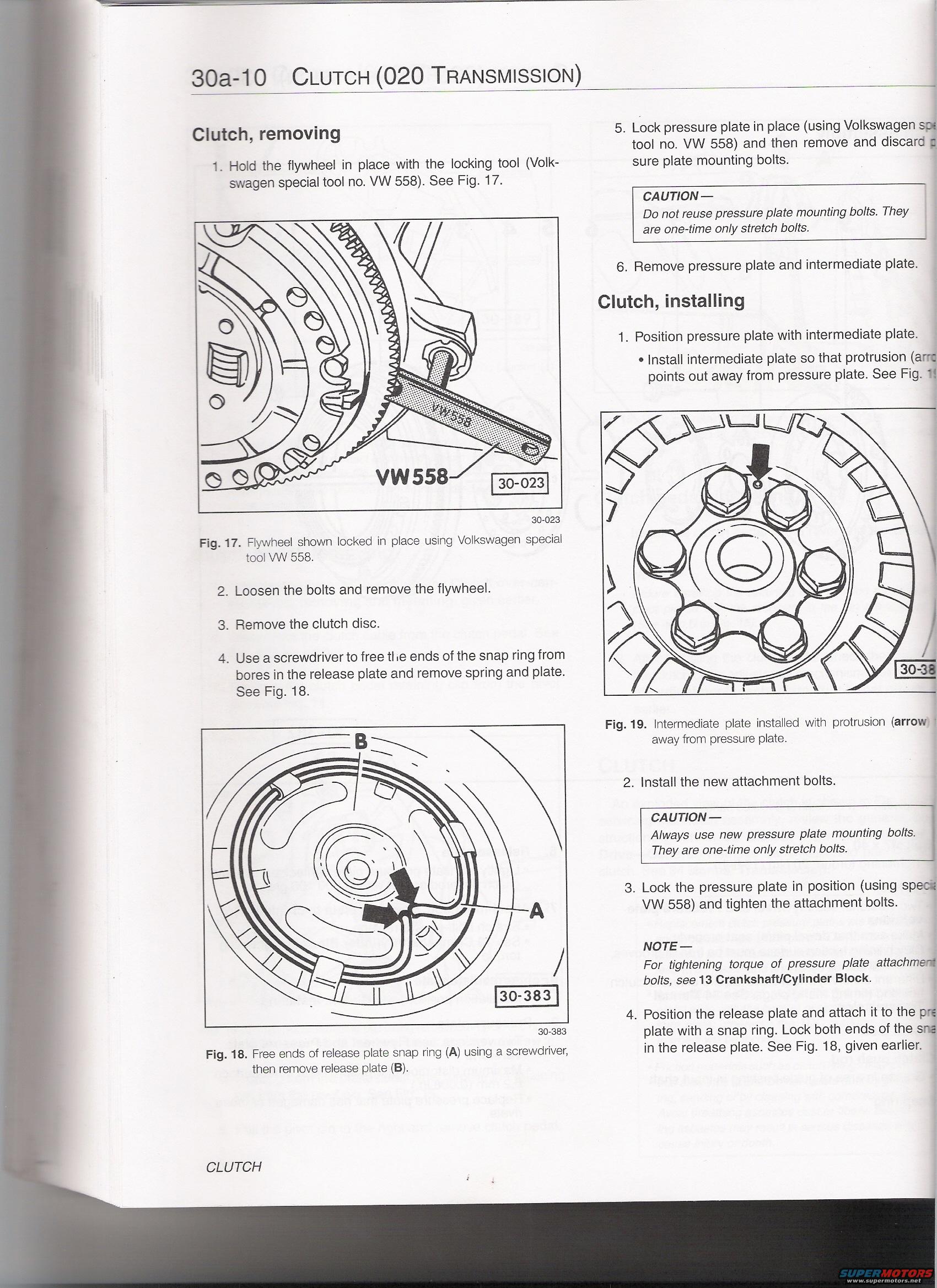

Manual page 30a-10 with Figs 17-19: removing and installing the clutch using flywheel locking tool VW 558; warns pressure-plate mounting bolts are one-time stretch bolts.
