Onboard air setup with Coilhose filter and pressure gauge in an…

‹ ›

On Board AirView all 6

Annotated on-board air components on a garage floor labeling filter, oiler, regulator

Engine bay plumbing with brass fittings annotated 'JB Weld to help seal'

Brass quick-connect air coupler joining a blue air line to a black hose

Onboard air quick-connect and coiled hose mounted on the black tube bumper of a white 4x4 Ford truck

Dusty V8 engine bay with circles marking heater hose Exit and Intake connection points

6photos in this albumView all

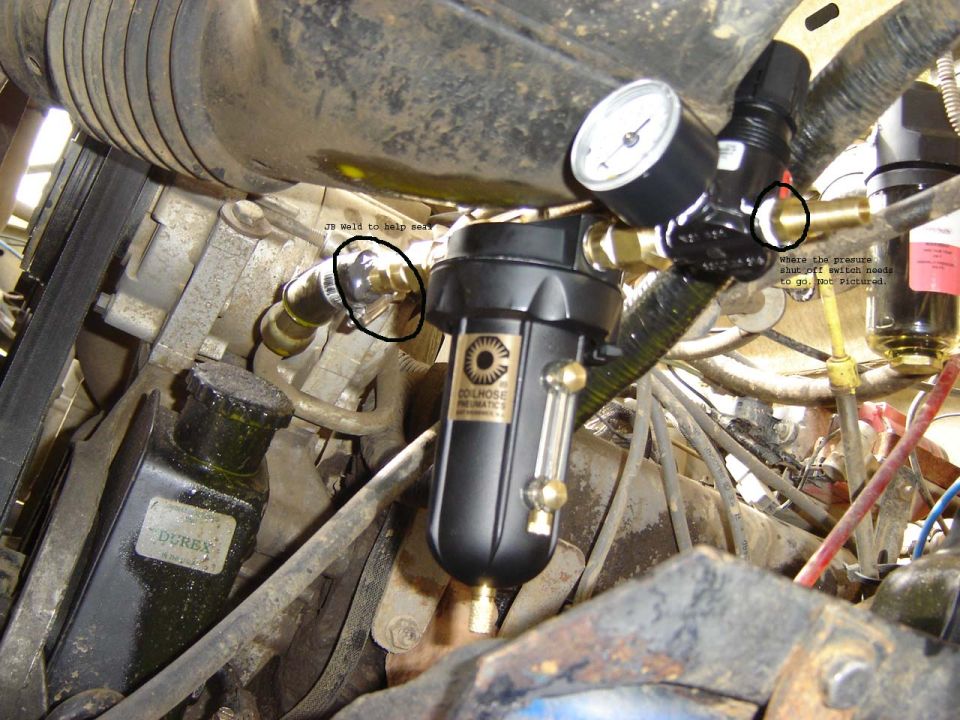

Engine-bay shot of an onboard air setup using a Coilhose Pneumatics filter/water separator and a black regulator with a round pressure gauge, plumbed in brass fittings off a belt-driven compressor. Added text callouts circle two fittings, labeled "JB Weld to help seal" and "Where the presure shut off switch needs to go. Not Pictured."
