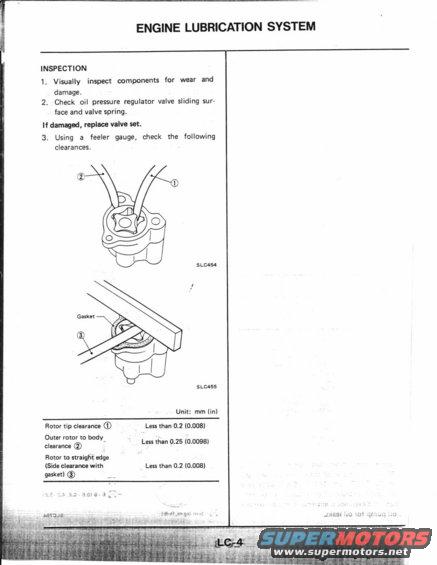

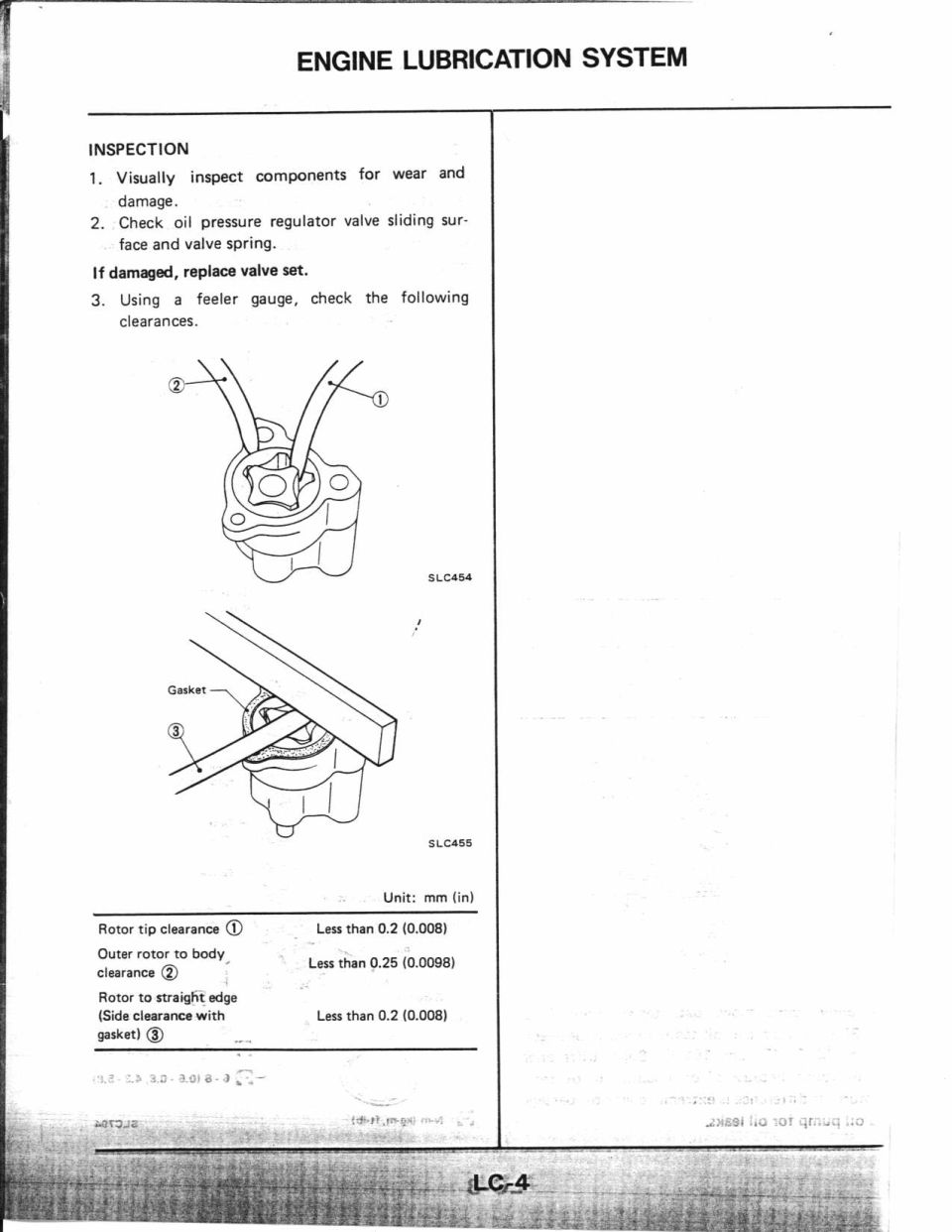

Scanned service manual page titled 'ENGINE LUBRICATION SYSTEM' showing oil pump inspection procedures with illustrations of feeler gauge clearance checks (SLC454, SLC455) and a specification table listing rotor tip clearance, outer rotor to body clearance, and side clearance values in mm and inches.
lBRICATION SYSTEM E INSPECTION 1. Visually inspect components for wear and damage. 2. Check oil pressure regulator valve sliding sur face and valve spring. If damaged, replace valve set. 3. Using a feeler gauge, check the following clearances. sLCAsA s LCASS Unit: mm (in) Romr lip clearance (D Less mm 0.2 (0.005) Outer rotor to body clearance Less than 0.25 (0.0098) Rotor to straigg edge (Side clearance wixh Less Khan 0.2 (0.005) gaskat)
