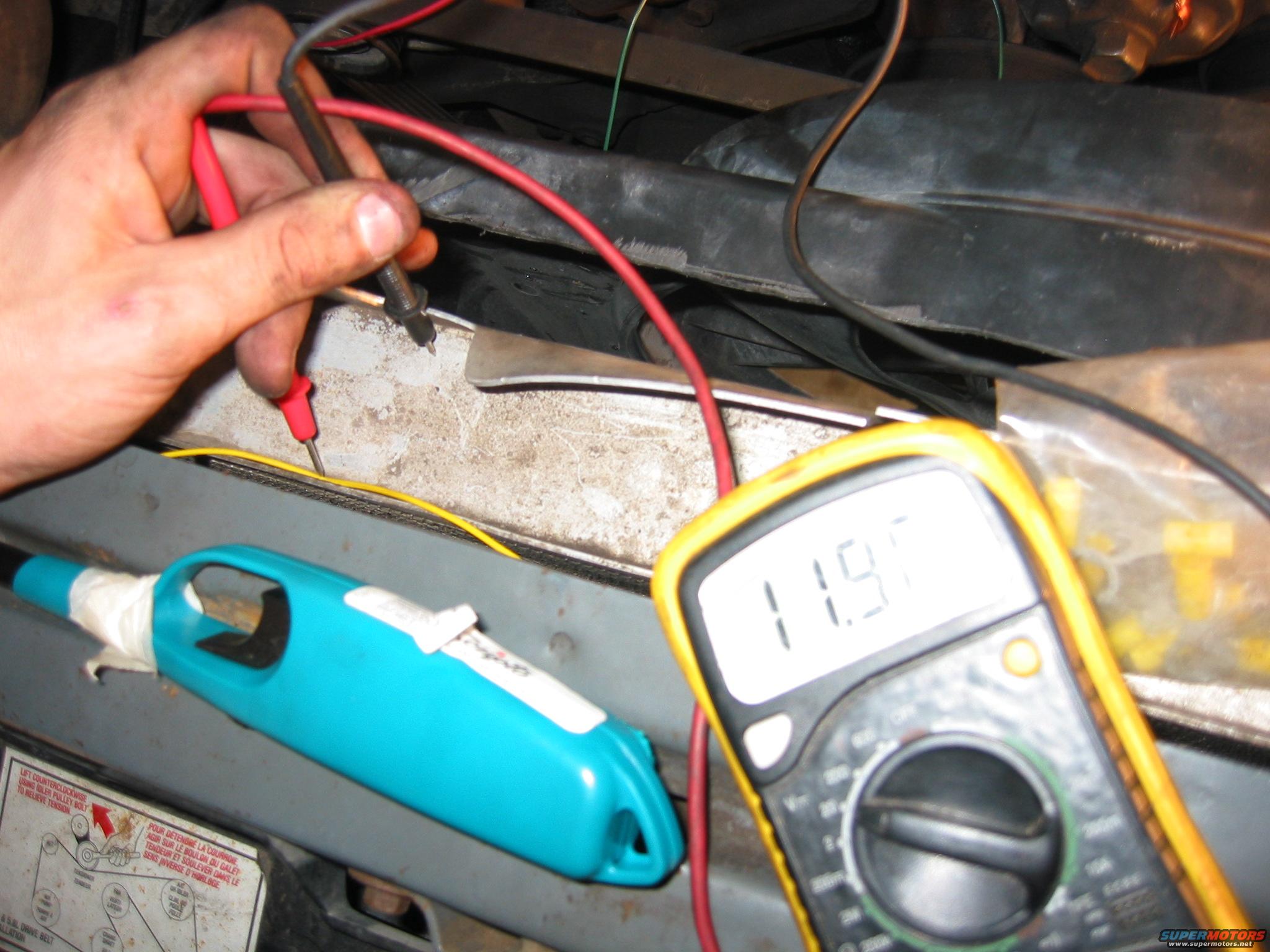

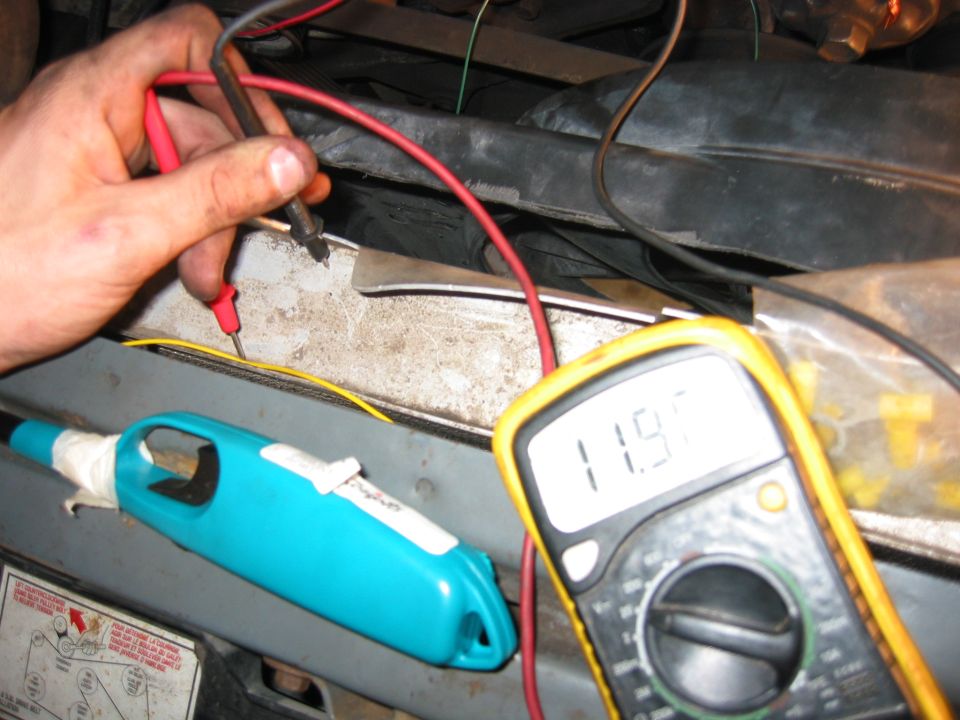

This is the yellow wire from the fan controller that ties into the IGN ON blue/white wire by the FP/EEC relay.
The glare on the meter is hard to see, but the key is on and its showing 12V, so this part of the circuit is working.
