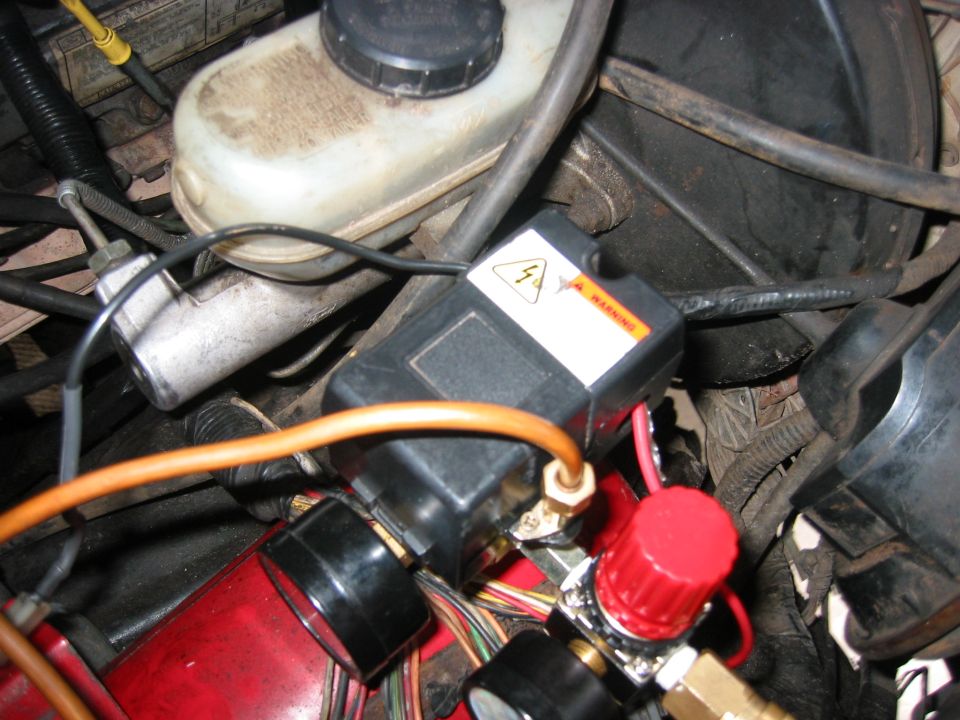

You can see the red wire from the IGN on source, and the black wire which goes to the compressor. The pressure switch connects these 2 when the pressure in the tank drops below 100, turning on the compressor.

Owner caption May 2005 · Photo 435 of 990
