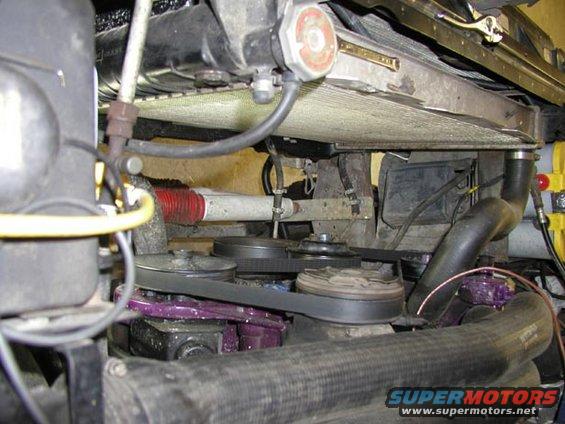

Engine bay with fan and shroud removed showing radiator, serpent…

Engine bay with the mechanical fan and shroud removed, opening up a clear view of the radiator's top tank and cap, the serpentine belt wrapping the crank and water pump pulleys, and the bare water pump snout. Purple-painted brackets, a red-boot heater hose fitting, yellow wiring and a large black hose run through the lower part of the frame.

AI caption June 2005 · Photo 137 of 159
