There's no need to disconnect the wiring or vacuum lines on the…

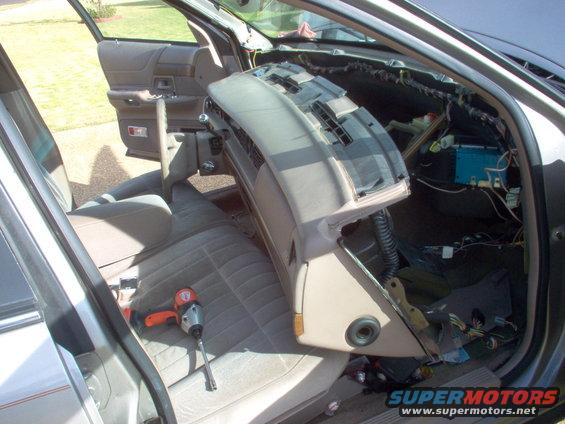

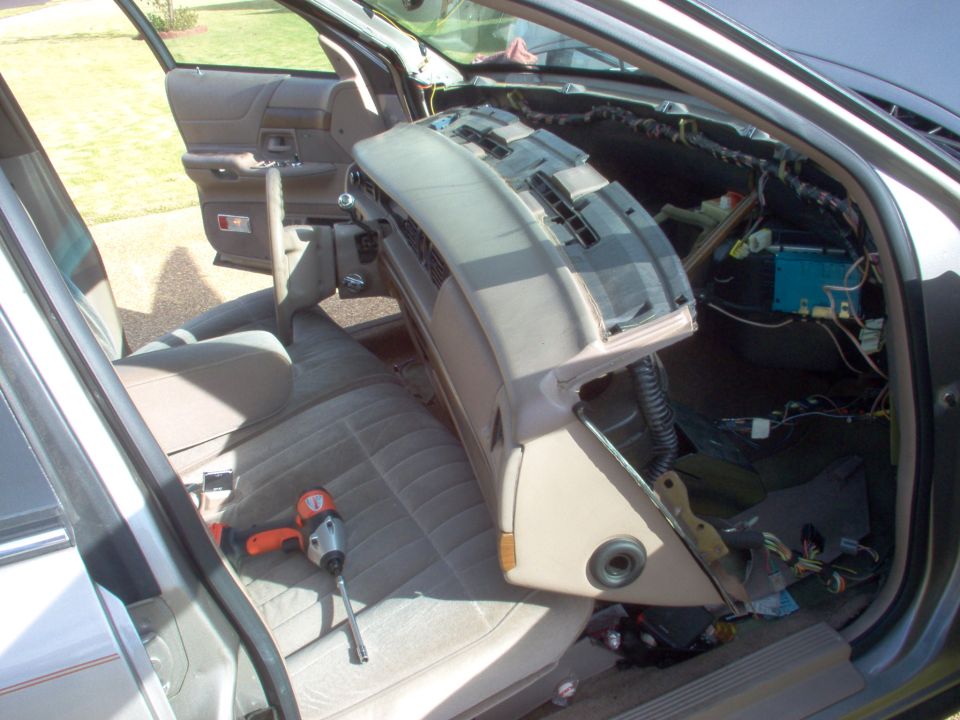

There's no need to disconnect the wiring or vacuum lines on the driver's side since this provides enough access to work. With the hoses & 3 nuts already removed, the box can now be pulled from the firewall. The top stud has a push-nut holding it to the firewall, but with firm force, it WILL slide off, releasing the box. There's no need to try to remove the servo or the nut on the inside end of the stud, but light hammering on the outside end of the stud may help. The push nut is between the outside box & the firewall, so the threads must be forced back thru it.

Owner caption November 2005 · Photo 600 of 980
