Step 2.

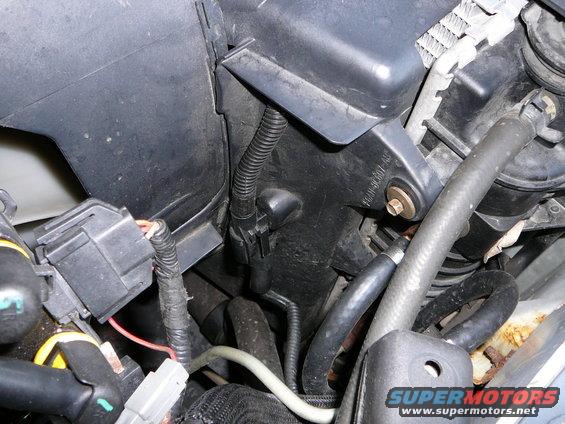

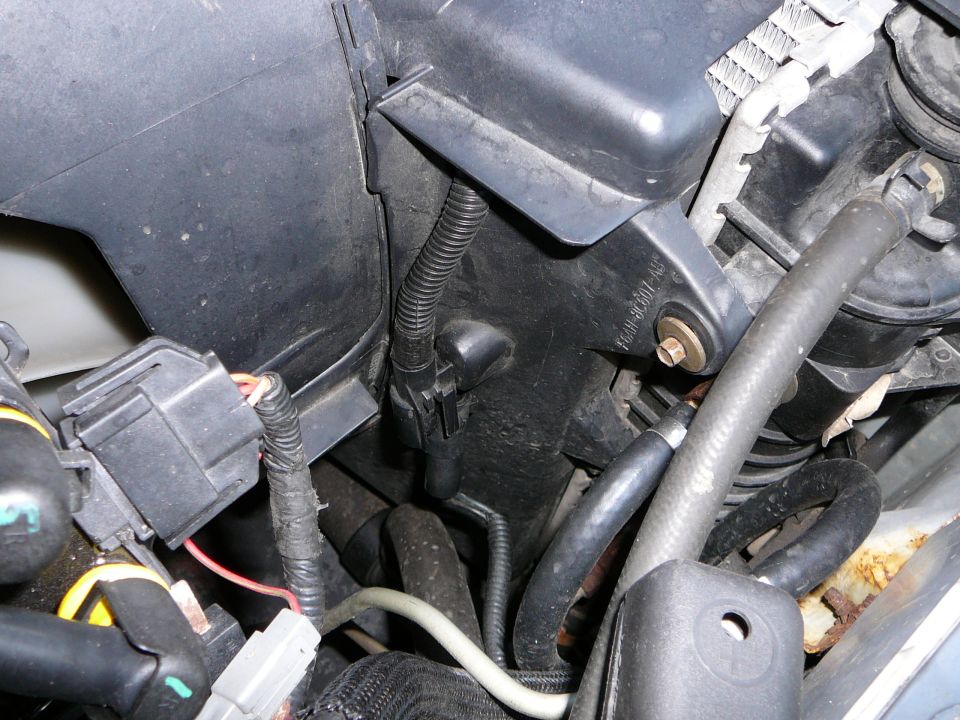

Remove the fan shroud. This requires the electric fan wires to be disconnected. There is also 2 8mm bolts to remove. one is located on the passenger side and one on the driver side of the shroud.

Note: There is a small "hook" on the bottom of the shroud that the lower coolant hose rests on. You must slide the hose off of the hook and then pull the shroud up and out.
