Step 13: Remove the Idle Air Control Valve wire harness. R…

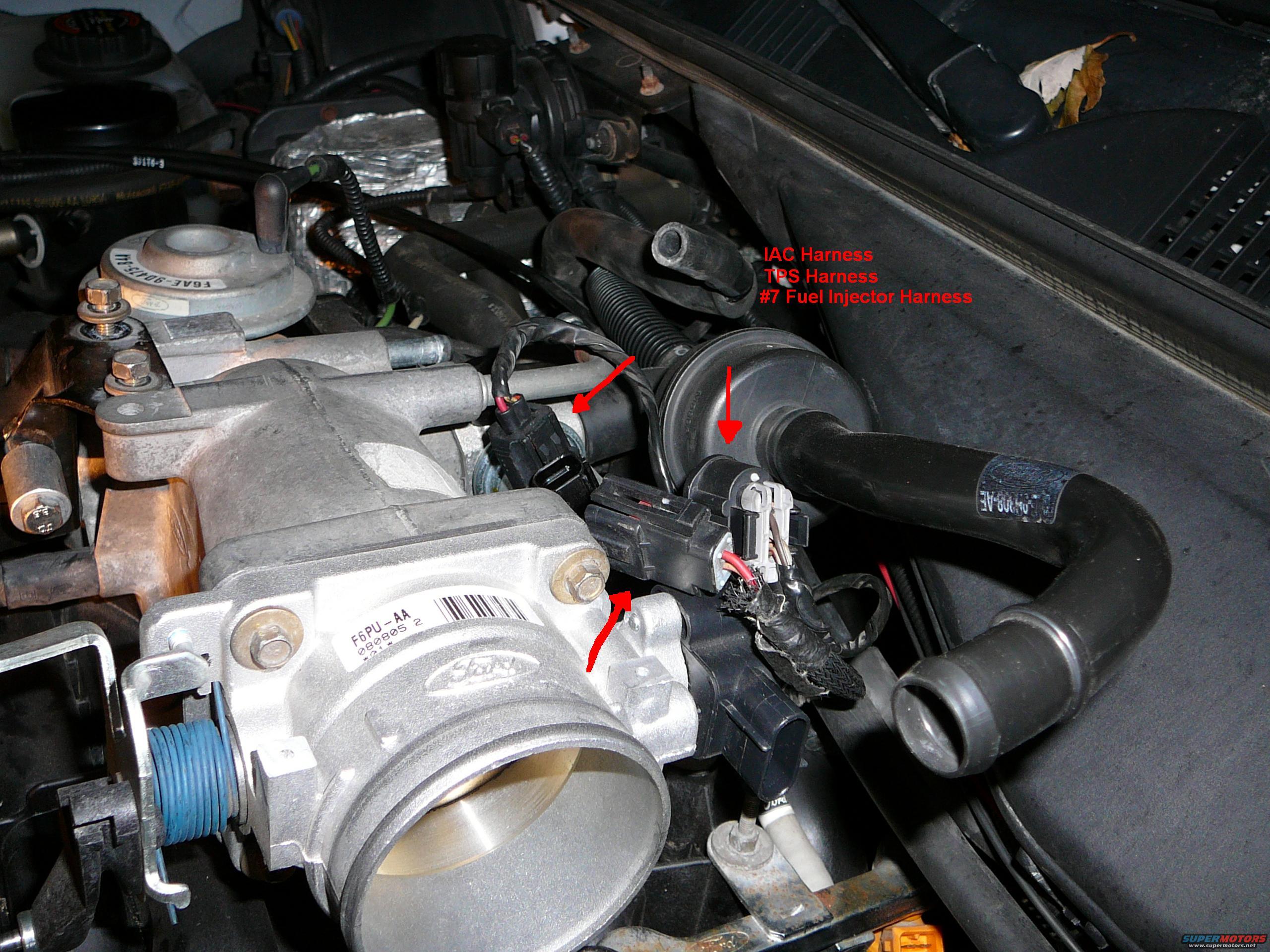

Step 13: Remove the Idle Air Control Valve wire harness. Remove the Throttle Position Sensor Wire harness. Remove the #7 Fuel injector wire harness.
Step 13: Remove the Idle Air Control Valve wire harness. Remove the Throttle Position Sensor Wire harness. Remove the #7 Fuel injector wire harness.Original file
Step 13: Remove the Idle Air Control Valve wire harness. Remove the Throttle Position Sensor Wire harness. Remove the #7 Fuel injector wire harness.

PI INTAKE SWAP(HOT!!!!)View all 42

Spiral screw extractor, socket and removed coolant nipple on a red table 1997 Mercury Grand Marquis photo 1997 Mercury Grand Marquis photo 1997 Mercury Grand Marquis photo Engine bay fuel line disconnects with quick-connect fittings and black electrical connector Fuel rails with yellow-topped injectors left in place over a disassembled V8 engine bay Close-up of aluminum cylinder head intake ports with manifold removed 1997 Mercury Grand Marquis photo Inside view of a hand-ported cast aluminum intake plenum inlet flange Removed aluminum throttle body and intake elbow with IAC valve on red wood deck Unbolted composite V8 intake manifold in engine bay ready to be lifted out 1997 Mercury Grand Marquis photo Engine bay close-up with throttle linkage removed, EGR valve and inlet elbow V8 engine with intake manifold removed, exposing open cylinder head ports and valley Removed composite V8 intake manifold on orange cart, thermostat housing and studs visible Two composite intake manifolds set side by side on tile floor for comparison 42photos in this albumView all

Step 13:

Remove the Idle Air Control Valve wire harness.

Remove the Throttle Position Sensor Wire harness.

Remove the #7 Fuel injector wire harness.

Owner caption · Photo 60 of 304
