Where is the fuel pump relay (C437) located on a 1992 Thunderbird/Cougar?

The diagram places the fuel pump relay (C437) in the rear of the vehicle near grid area E/F-6, close to the inertia switch (C438), with a note indicating a point 15 cm (6 in) from the fuel pump relay.

Where is the inertia switch on this diagram?

The inertia switch (C438) is shown in the rear of the body near grid column 7, row F, adjacent to the fuel pump relay area.

What connector is the fuel filler door release solenoid?

The fuel filler door release solenoid is connector C410, located at the rear of the vehicle near grid area E-9/10.

Which connectors relate to the passive restraint system?

The diagram shows C411 and C412 for the Passive Restraint Module, C333 to the left rear limit switch and left passive restraint motor, C334 to the right rear limit switch and right passive restraint motor, plus front limit switches C309 (left) and C310 (right).

Where are the rear audio components located?

The diagram shows the left rear speaker (C450), right rear speakers (C451), subwoofer speaker, subwoofer amplifier (C422), and radio amplifier (C414) in the rear package/trunk area of the body.

Home/ Registry/ Mercury/ Cougar/ 1989-1997/ 1997 Mercury Cougar/ Photo supermotors.net/registry/media/463896

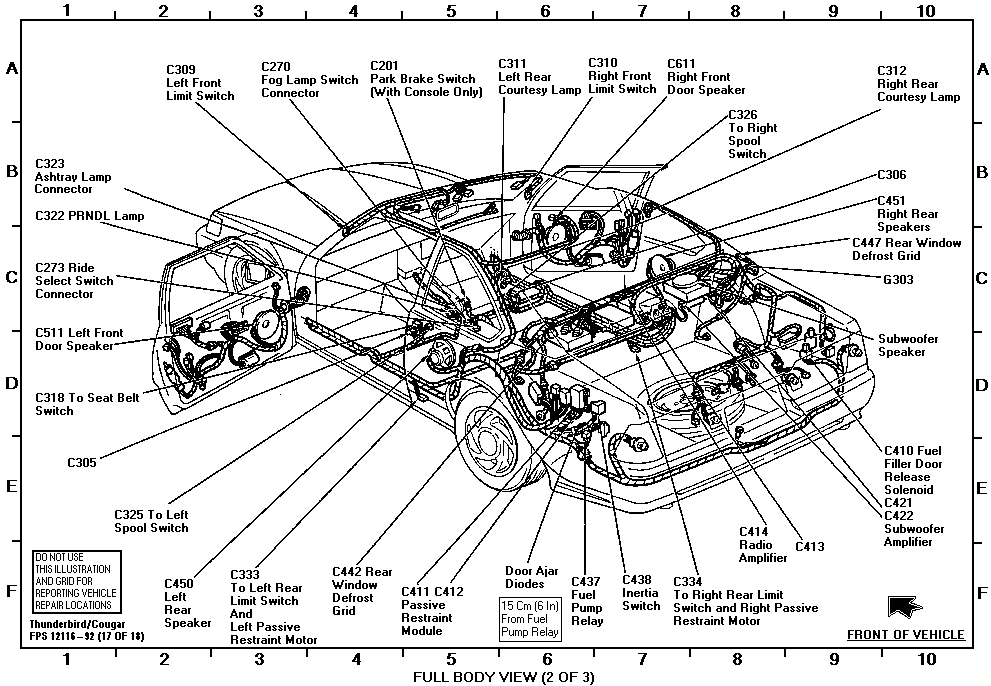

1992 Ford Thunderbird / Mercury Cougar Connector Locations - Full Body View 2 of 3

Electrical connector location diagram on Thunderbird/Cougar body, full body view 2 of 3

‹ ›

Electrical connector and component location diagram on a Thunderbird/Cougar body showing speaker, lamp, and restraint connectors.

AI caption December 2006 · Photo 6 of 86

This document is a Ford factory-style component location illustration titled "Full Body View (2 of 3)" for the Ford Thunderbird / Mercury Cougar, identified as FPS 12116—92 (page 17 of 18), indicating 1992 model year coverage. It shows a cutaway line drawing of the full vehicle body overlaid on a grid (columns 1–10, rows A–F) with numbered connector and component callouts. Locations identified include interior and rear body electrical items: courtesy lamps (C311, C312), door speakers (C511, C611), rear speakers (C450, C451), subwoofer speaker and subwoofer amplifier (C422), radio amplifier (C414), rear window defrost grid connections (C442, C447), passive restraint module (C411/C412), passive restraint limit switches and motors (C309, C310, C333, C334), spool switches (C325, C326), fuel pump relay (C437), inertia switch (C438), fuel filler door release solenoid (C410), park brake switch (C201), fog lamp switch connector (C270), ashtray lamp (C323), PRNDL lamp (C322), ride select switch connector (C273), door ajar diodes, seat belt switch (C318), and ground G303. A note states the illustration and grid are not to be used for reporting vehicle repair locations. Readers can use it to physically locate these connectors, relays, and grounds within the body.

This document covers 1992, which may differ from this 1997 Mercury Cougar.

Is this accurate? Sign in to help verify it.

Frequently asked questions

Where is the fuel pump relay (C437) located on a 1992 Thunderbird/Cougar?: The diagram places the fuel pump relay (C437) in the rear of the vehicle near grid area E/F-6, close to the inertia switch (C438), with a note indicating a point 15 cm (6 in) from the fuel pump relay.
Where is the inertia switch on this diagram?: The inertia switch (C438) is shown in the rear of the body near grid column 7, row F, adjacent to the fuel pump relay area.
What connector is the fuel filler door release solenoid?: The fuel filler door release solenoid is connector C410, located at the rear of the vehicle near grid area E-9/10.
Which connectors relate to the passive restraint system?: The diagram shows C411 and C412 for the Passive Restraint Module, C333 to the left rear limit switch and left passive restraint motor, C334 to the right rear limit switch and right passive restraint motor, plus front limit switches C309 (left) and C310 (right).
Where are the rear audio components located?: The diagram shows the left rear speaker (C450), right rear speakers (C451), subwoofer speaker, subwoofer amplifier (C422), and radio amplifier (C414) in the rear package/trunk area of the body.
