Vehicle battery box with labeled electrical components including…

Vehicle battery box with labeled electrical components including ground bar, breaker, and starter solenoid
Vehicle battery box with labeled electrical components including ground bar, breaker, and starter solenoidOriginal file
Vehicle battery box with labeled electrical components including ground bar, breaker, and starter solenoid

Battery BoxView all 19

Aluminum extrusion frame assembly on a workbench, with shelves and tools in the background Electrical fuse and assorted bolts and nuts on a workbench Battery fuse and brass mounting hardware on a clear plate with metal frame Battery box with bus bars and circuit breaker Car battery mounted on aluminum frame with brass electrical terminals and connectors Wiring harness and relays in a vehicle's interior Two cans of Performix Plasti Dip and two automotive parts with black coating and metal fittings on a wooden su Red and black battery cables hanging on a pegboard wall Two battery cables, one red and one black, with terminal clamps Close-up of a custom electrical terminal block with brass connectors and nuts, mounted on aluminum extrusion Engine bay showing a white fuel filter, rusty battery tray, and wiring Battery box wiring with red and black cables, brass terminals, and a white circuit breaker Vehicle battery box with labeled electrical components including ground bar, breaker, and starter solenoid Engine bay with dual batteries and custom wiring harness Battery box with Duralast battery, circuit breaker, and filter. Red wiring connects components Custom battery box with clear cover and red cables mounted in engine bay. Coolant filter visible 19photos in this albumView all

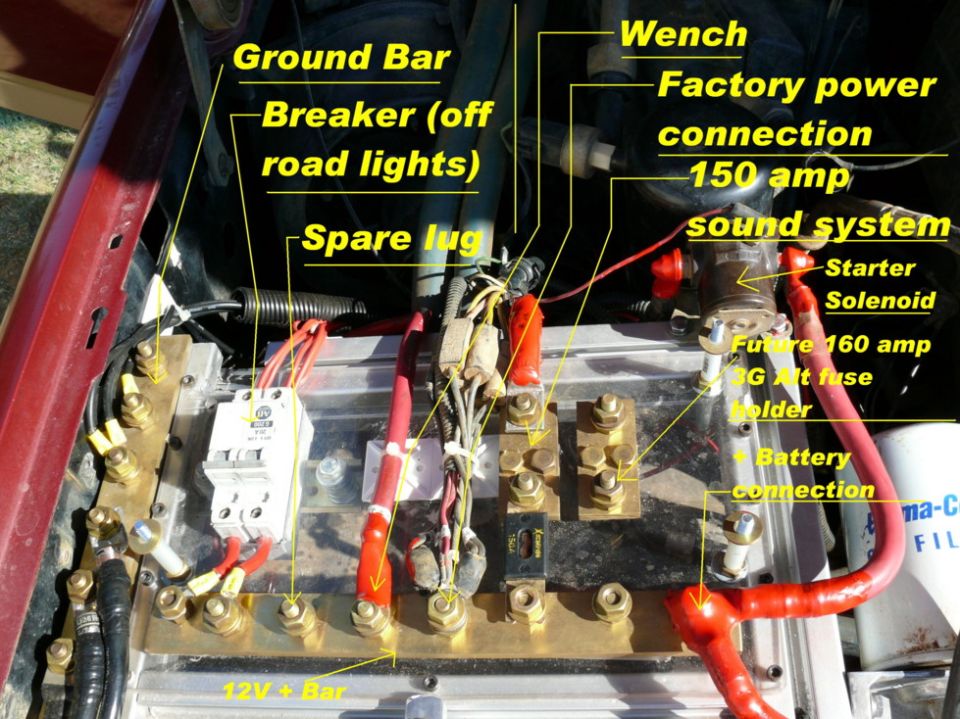

Labeled electrical components within a vehicle's battery box, detailing connections for the sound system and off-road lights.
