Annotated photo of chrome air cleaner snorkel and vacuum hoses w…

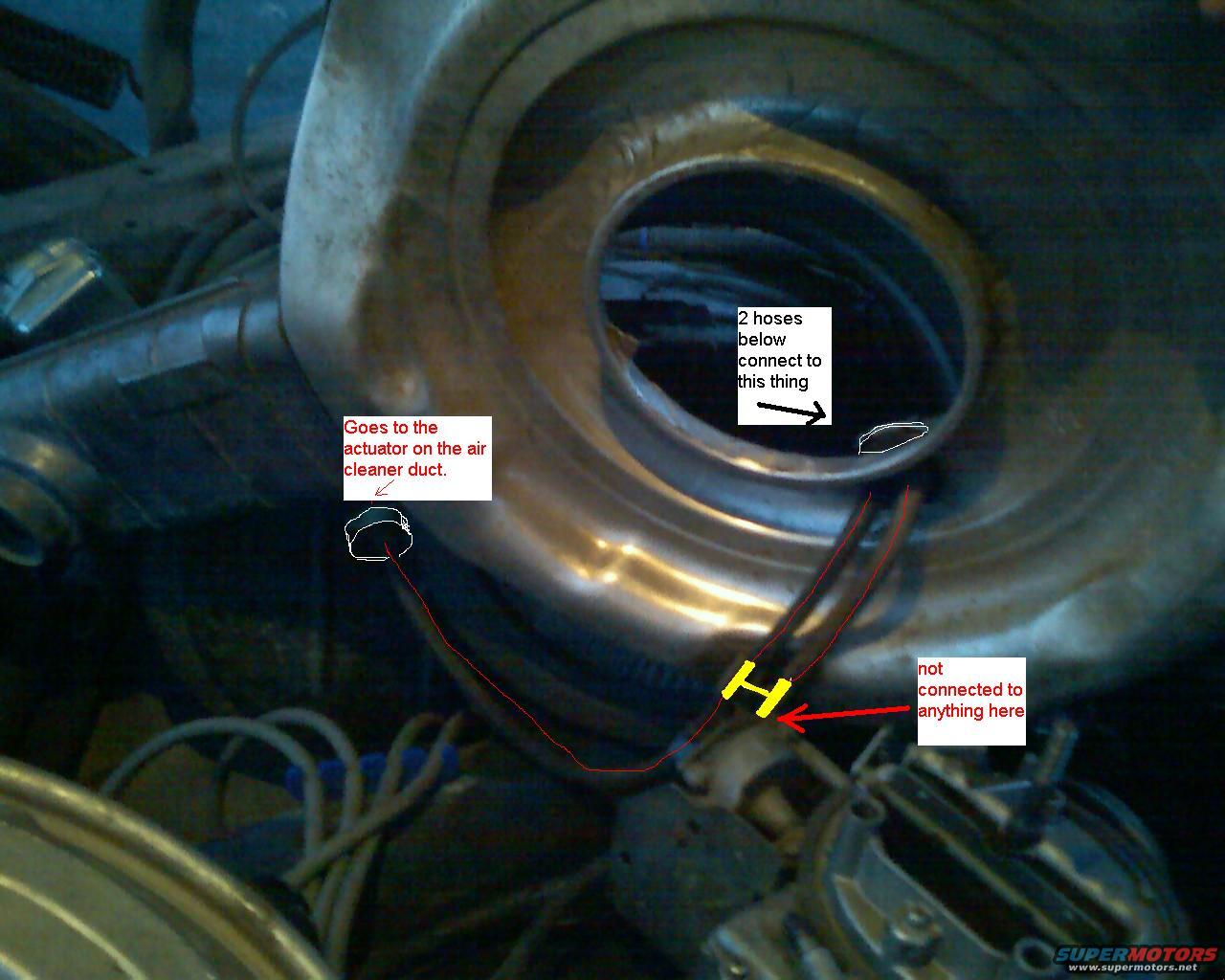

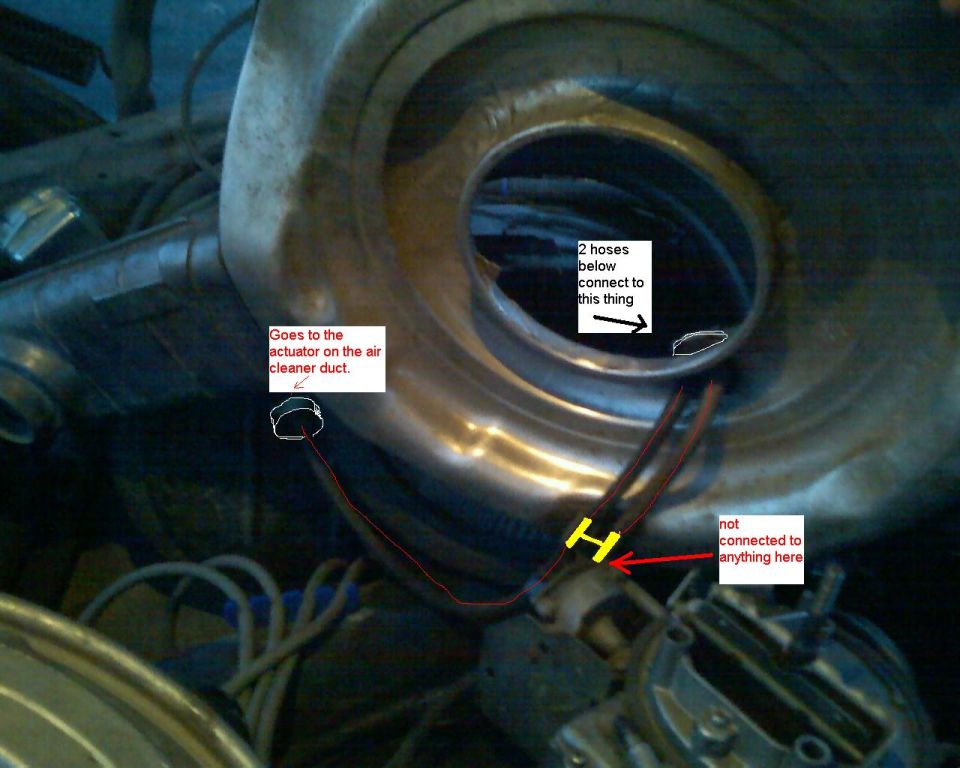

Close-up under the hood of a chrome round air cleaner housing with its snorkel inlet and flexible black heat-riser duct, annotated with white callout boxes and red arrows reading "2 hoses below connect to this thing," "Goes to the actuator on the air cleaner duct," and "not connected to anything here." Two small vacuum hoses run from the carburetor area up toward the snorkel, with one highlighted in yellow as disconnected.
