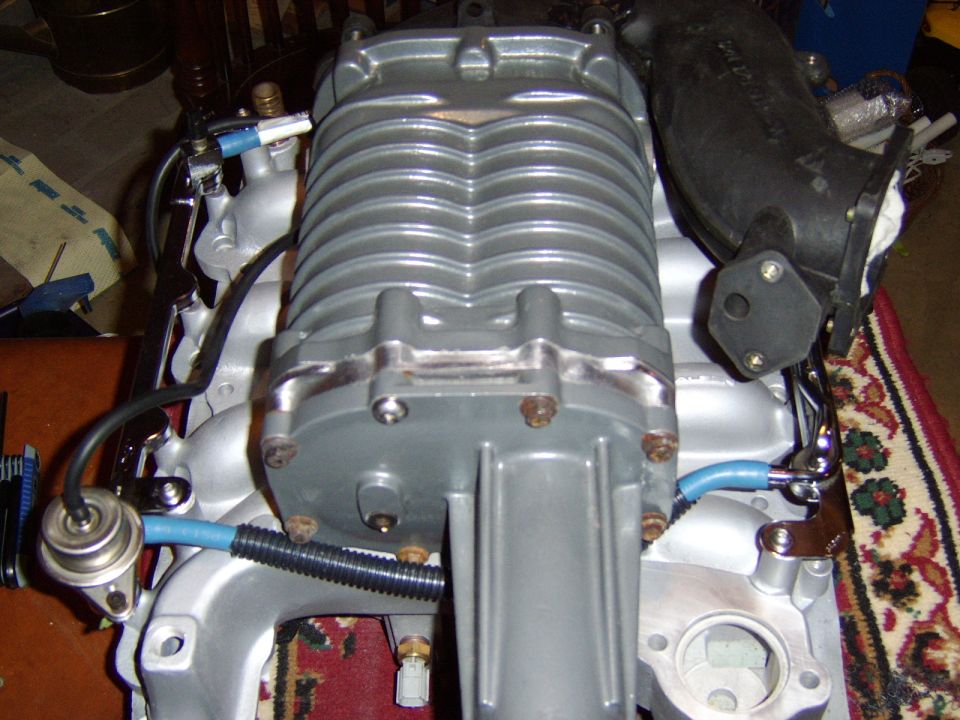

Test fit on the manifold.

Still a little tight, but it clears. The fuel rail inlet, outlet and the one crossover barb which is on a tube rather than attached to rail were all slightly bent for clearance.


Note the blower case color before I painted it.Can also see a test fit of one of the stainless button socket head screws (M8x1.25)
