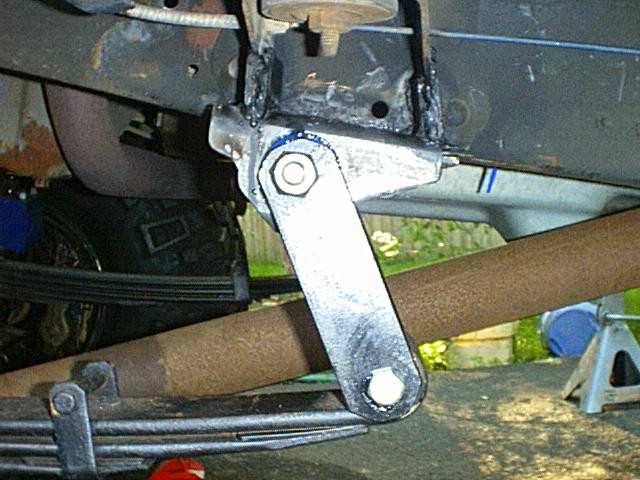

x1.jpg Im not happy with the shackle angle here.  Also the pinion angle is not even close to perfect, it binds with about 4 in of upward travel.  It was a shot in the dark and I missed.  I redrilled new holes in the front hanger about 1" back and .25" down.  This made for a much nicer shackel angle and better pinion angle.  Now all I need are some pinion angle shims to perfect for max travel.
x1.jpg | Hits: 4295 | Posted on: 6/30/03 | View original size (179.95 KB)

Im not happy with the shackle angle here. Also the pinion angle is not even close to perfect, it binds with about 4 in of upward travel. It was a shot in the dark and I missed. I redrilled new holes in the front hanger about 1" back and .25" down. This made for a much nicer shackel angle and better pinion angle. Now all I need are some pinion angle shims to perfect for max travel.
