Fabricated bare steel bracket with MIG welds and bolt holes on a…

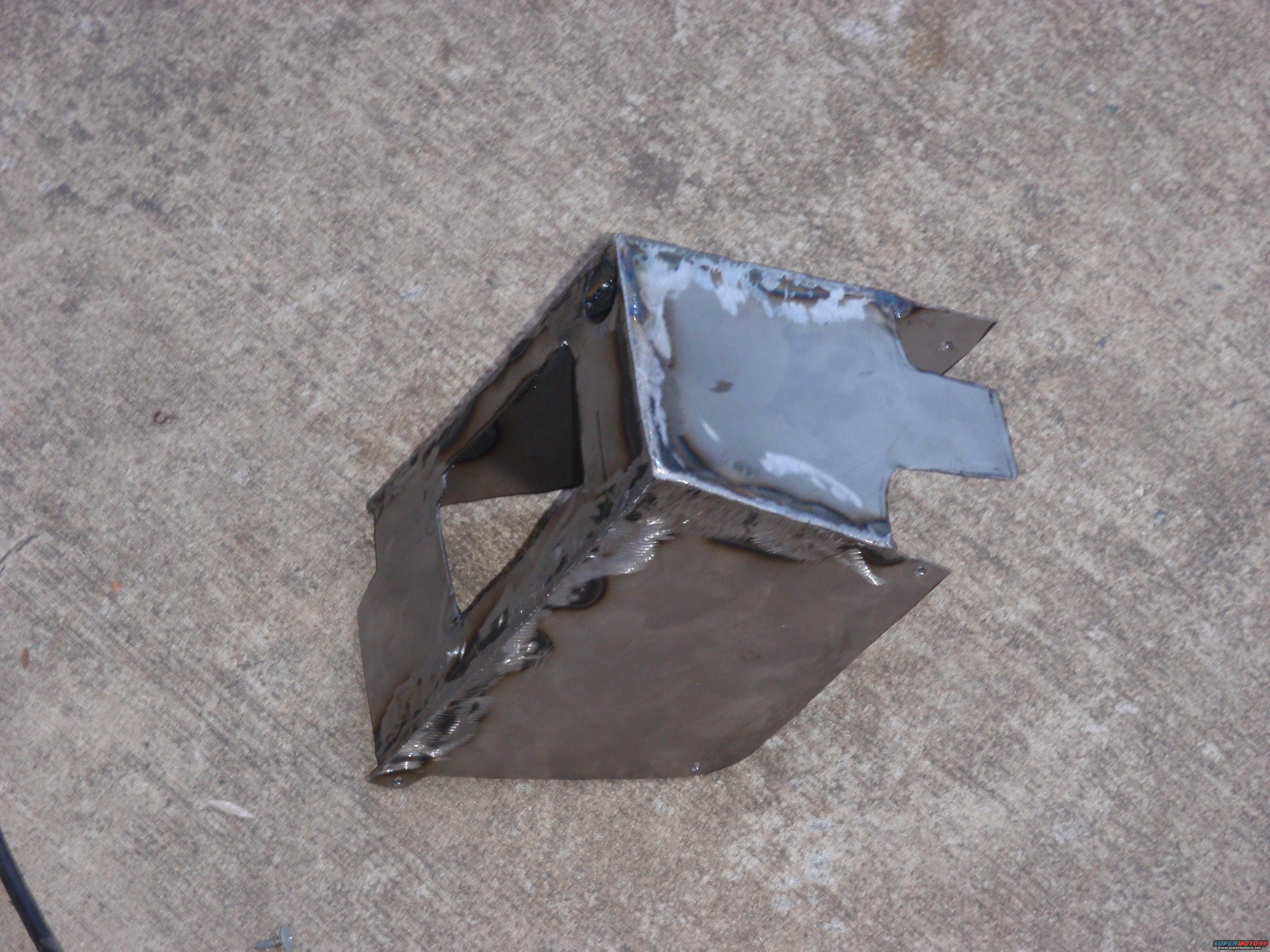

Fabricated bare steel bracket with MIG welds and bolt holes on a concrete shop floor

A shop-fabricated bare-steel bracket sitting on a concrete floor, built from cut plate with notched tabs and a boxed pocket, joined by stacked-dime MIG welds along the seams. Bolt holes are drilled through the plate faces and the metal is still unpainted.

AI caption · Photo 232 of 333

Is this accurate? Sign in to help verify it.
