What are the muffler part numbers in this dual exhaust diagram?

The right-side muffler is basic part number 16107 and the left-side muffler is 16140.

What clamps are used and how many?

Clamp part number 8233 is used throughout; it is marked '(2 used)' at each muffler joint, with additional 8233 clamps at the tailpipe/resonator eliminator pipe connections.

What are the resonator eliminator pipe part numbers?

64766 is the right-side Res. Elim. Pipe and 64767 is the left-side Res. Elim. Pipe.

Which front exhaust pipes are shown, and do they cover California vehicles?

The right front pipe is 642550 and the left is 642549, both marked 'exc. Calif.' (excluding California), with footnotes (838) and (938) respectively.

What gaskets are used at the pipe joints?

Gasket 8772 is used at the front pipe-to-H-pipe joints and at the muffler outlets; the diagram also notes 'Gasket NR' (not required) at the front flange area near the H-pipe 94002(81).

Home/ Registry/ Mercury/ Grand Marquis/ 1998-2011/ “Merky”/ Photo supermotors.net/registry/media/814311

Ford Panther Dual Exhaust Exploded Parts Diagram - Mufflers, Pipes & Clamps

Dual exhaust system parts breakdown with catalytic converters, mufflers and part numbers

‹ ›

Exploded exhaust system parts diagram showing left/right pipes, mufflers, resonator-eliminator pipes and clamps with part numbers.

AI caption July 2010 · Photo 713 of 2796

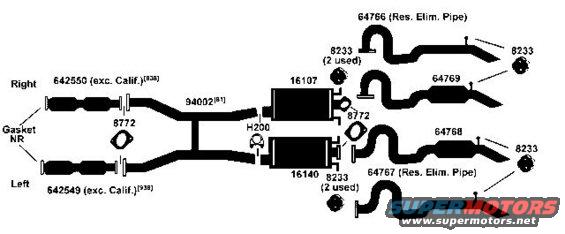

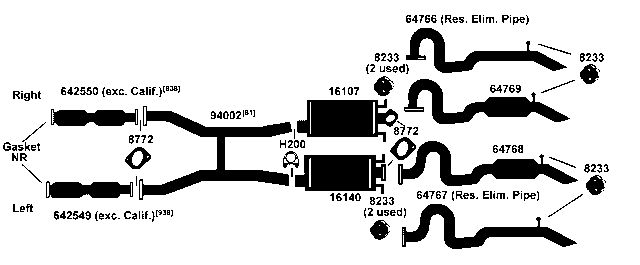

This document is an exploded parts diagram of a dual exhaust system, showing the exhaust components from the front pipes rearward to the tailpipes. The right-side front exhaust pipe is part 642550 (exc. Calif.) with footnote (838), and the left-side front pipe is 642549 (exc. Calif.) with footnote (938). These connect via gaskets 8772 to an H-pipe/intermediate pipe assembly labeled 94002(81), with the crossover marked H200 and 'Gasket NR' (not required) noted at the front flanges. Two mufflers are shown: 16107 (right) and 16140 (left), each joined with gaskets 8772 and clamps 8233 (2 used per side). Behind the mufflers, resonator eliminator pipes are shown: 64766 (Res. Elim. Pipe) for the right side and 64767 (Res. Elim. Pipe) for the left. Tailpipes 64769 (right) and 64768 (left) attach with additional 8233 clamps and hangers. A reader can learn the Ford basic part numbers for each dual-exhaust component, which parts exclude California applications, how many clamps are used at each joint, and the overall layout/orientation (Right/Left) of the system. No year, make, or model is stated on the diagram itself.
