What engines does this 1972 Torino engine mount diagram cover?

It covers the 8-cylinder 302 and 351 engines, with an additional detail view labeled '8 CYLINDER 400' for the 400 V8.

What is the Ford part number for the engine mount bracket?

The bracket is shown as 6038-R.H. & L.H., with an upper bracket 6C038-R.H. & L.H. in view B.

What part number is the rear engine insulator on a 1972 Torino?

The rear insulator is shown as part 6068, mounted with 34809-S (X-68), 350688-S (BB-193), 33772-S (M-89-LA), and 384928-S (BB-429-WN) hardware.

What hardware attaches the front engine mounts?

The diagram shows bolt 6047, fasteners 382802-S (MM-173-JB) and 383232-S (BB-551-AD), plus 34988-S (M-89-D) and nut 6030 on the 400 engine view.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/818290

1972 Ford Torino Engine Mount Diagram - 302, 351, 400 V8 Supports & Insulators

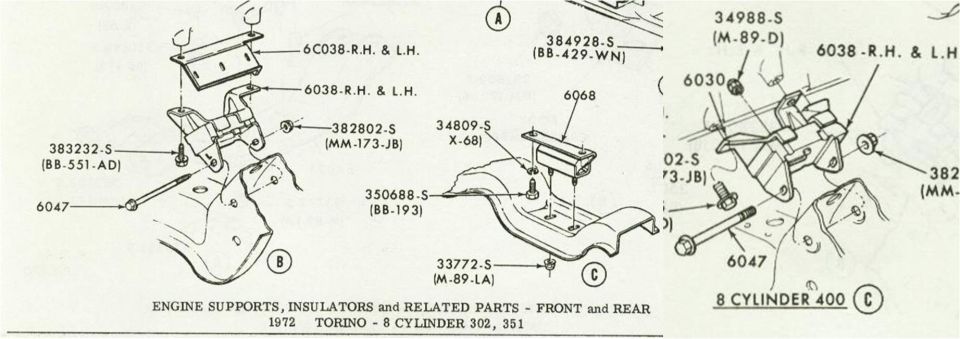

Exploded parts diagram of 1972 Torino engine supports and insulators with Ford part numbers

‹ ›

Exploded parts diagram of front and rear engine supports and insulators for a 1972 Torino with part numbers.

AI caption August 2010 · Photo 612 of 708

This document is a scanned exploded parts diagram from a Ford parts catalog showing engine supports, insulators, and related parts (front and rear) for the 1972 Torino with 8-cylinder 302 and 351 engines, plus a separate detail view for the 8-cylinder 400 engine. Three illustrated views (labeled A, B, and C) show how the engine mount components assemble to the crossmember and engine brackets. Callouts identify the front mount bracket (6038-R.H. & L.H.), upper bracket (6C038-R.H. & L.H.), rear insulator (6068), and associated hardware including bolts and nuts: 382802-S (MM-173-JB), 383232-S (BB-551-AD), 6047 bolt, 384928-S (BB-429-WN), 34809-S (X-68), 350688-S (BB-193), 33772-S (M-89-LA), 34988-S (M-89-D), and nut 6030. A reader can learn the correct Ford part numbers and hardware specifications needed to service or replace the engine mounts on a 1972 Torino/Ranchero-platform car with 302, 351, or 400 V8 engines, along with the relative positions and orientations of each fastener and bracket in the assembly.
