What part number is the Ford front door outside handle in this diagram?

The outside door handle is shown as part number 22404, with related pieces 22454 and 22448 nearby.

Which parts are included with the door lock cylinder assembly 21984?

Items marked with a solid triangle are also included with 21984: 358662-S (XX-87), 21970, 97497-S (Q-5), and 374669-S (XX-368-A).

What body types does the inset inside handle assembly apply to?

The inset showing parts 22600, 378446-S (BB-600-F), 379045-S, and 22620 is labeled for body types 63B, 65B, and 76B.

What do the symbols in the legend mean?

Open triangle = included with 21812-3; dot = also included with 21801; double asterisk = included with 22454; solid triangle = also included with 21984.

What is the basic part number for the door latch assembly?

The main door latch assembly is labeled 21812, with the remote control mechanism labeled 21801.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/832969

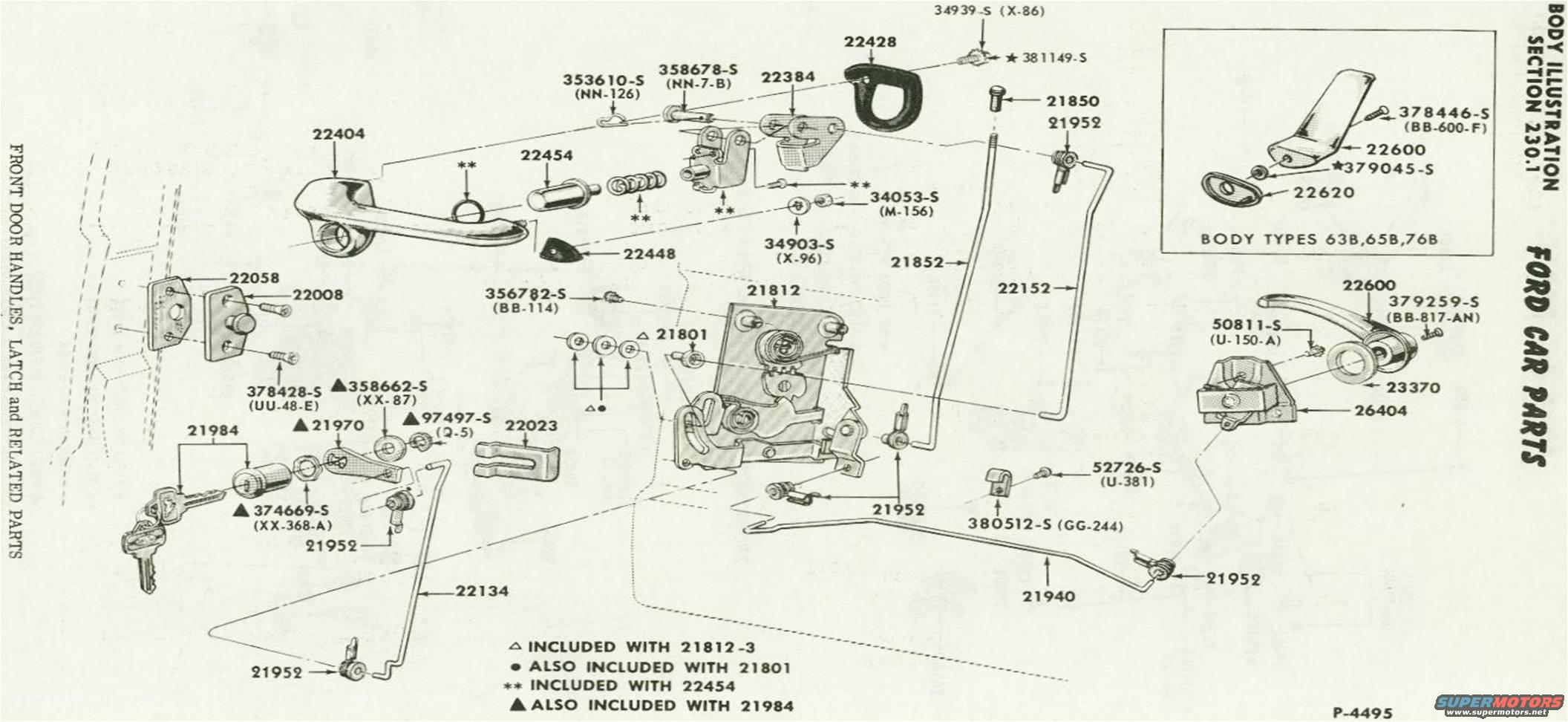

Ford Front Door Handle & Latch Exploded Parts Diagram - Section 230.1 (P-4495)

Ford car parts exploded diagram of front door handles, latch and related door hardware

‹ ›

Exploded parts illustration of Ford front door handles, latches and lock components with part numbers.

AI caption October 2010 · Photo 628 of 708

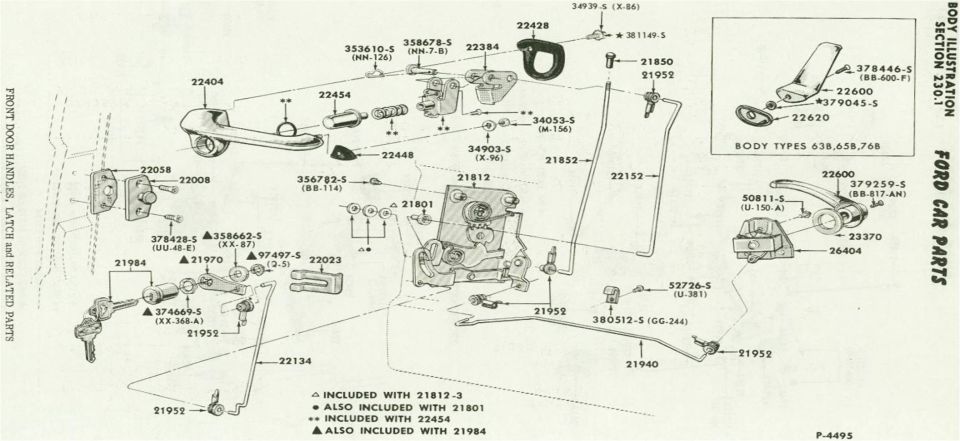

This is a scanned page from a Ford body illustration catalog (Body Illustration Section 230.1, "Ford Car Parts"), showing an exploded parts diagram titled "Front Door Handles, Latch and Related Parts." The drawing details the front door exterior handle (22404) with its pads and springs (22454, 22448), the door latch assembly (21812) and remote control (21801), latch-to-handle linkage rods (21852, 22152, 21940, 22134), lock cylinder and keys (21984 with included parts 21970, 97497-S, 358662-S, 374669-S), striker plate hardware (22058, 22008), and various clips, screws, and retainers identified by Ford hardware part numbers such as 358678-S, 353610-S, 34053-S, 34903-S, 356782-S, 378428-S, 380512-S, 52726-S, and 50811-S. An inset shows the inside door handle (22600), pad (378446-S), and escutcheon (22620) specific to body types 63B, 65B, and 76B, plus the inside remote handle 22600 with bezel 23370 and housing 26404. A legend explains symbols indicating which small parts are included with assemblies 21812-3, 21801, 22454, and 21984. Plate number P-4495. The page gives no explicit model years, so applicability must be inferred from the body type codes.
