Cut down Ranchero hub to fit inside of Crown Vic rotor "hat…

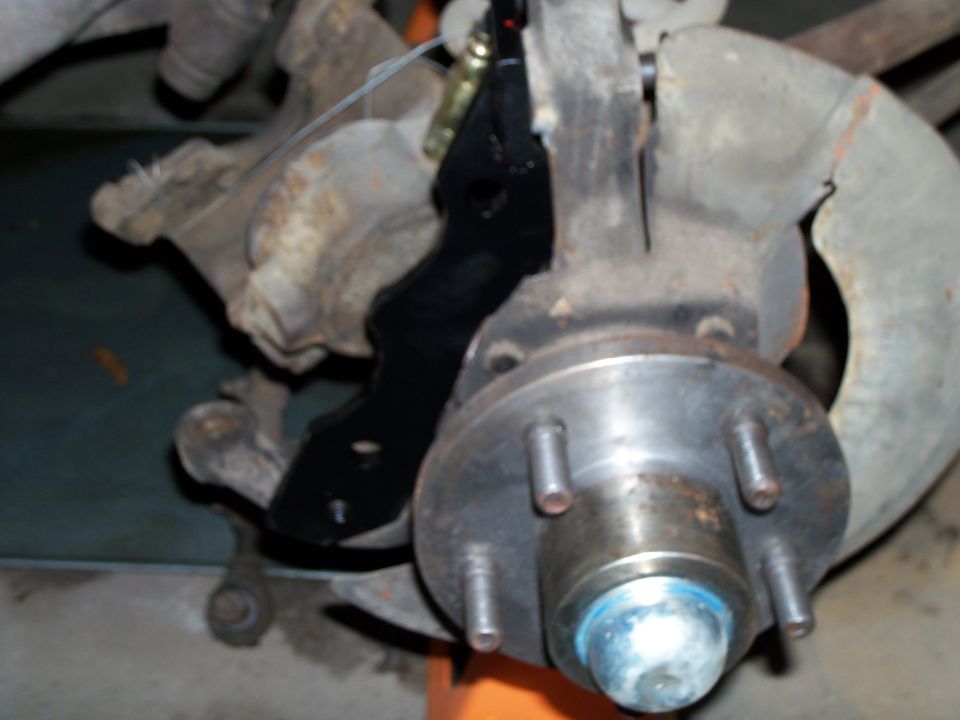

Cut down Ranchero hub to fit inside of Crown Vic rotor "hat", note the wheel stud shoulder that protrudes proud of the hub face, these help with locating the rotor. The vertical portion of the bracket below the upper mounting bolt is ground to fit to spindle, the bracket could be spot welded in this location but not needed. Also shows the upper left hand splash shield mounting location needed to be trimmed to allow Crown Vic caliper assembly to fit

Owner caption August 2010 · Photo 10 of 359
