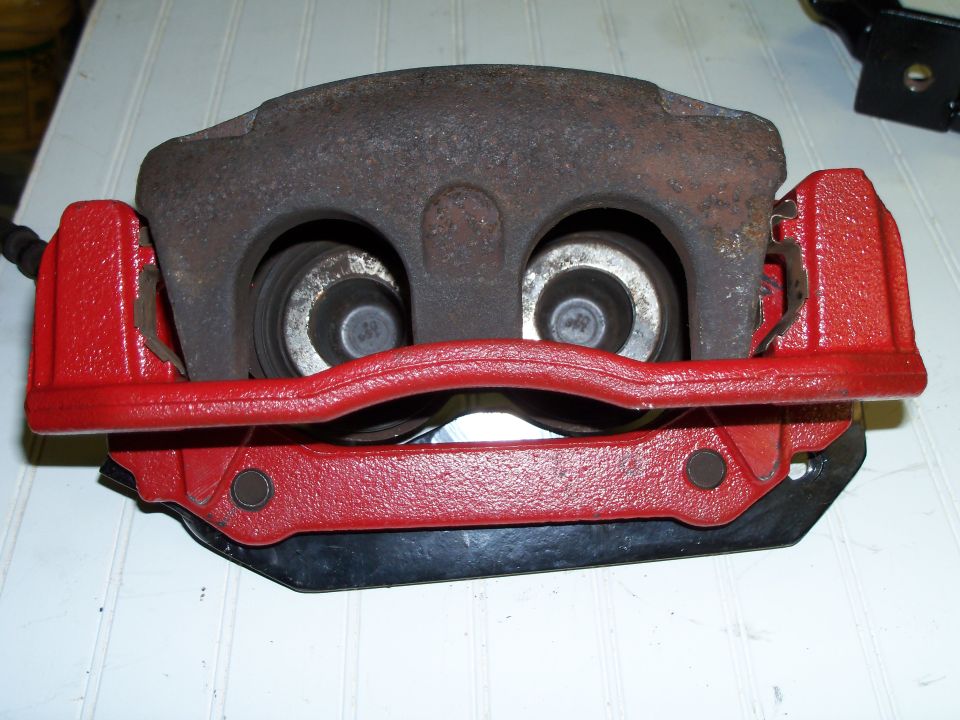

The caliper is offset somewhat on the bracket but once installed…

The caliper is offset somewhat on the bracket but once installed the rotor lines up perfectly with the brake pads, about a 1/16" of the rotor is above the pads once installed. New caliper, mounting bracket and associated hardware will be used once the fabricating is done.

Owner caption August 2010 · Photo 11 of 359
