Engine bay teardown with cylinder head removed exposing bores, b…

‹ ›

blown head gasketView all 8

Brown-over-tan Ford pickup with hood up in garage beside red three-wheeler ATV and red coupe

Red ATV with engine work in garage beside brown Ford truck and red car

Engine block deck with head removed, exposed pistons in bores and removed cast-iron exhaust manifold

Cast-iron V8 cylinder head and used head gasket on garage floor during teardown

Engine block deck with two cylinder bores and head bolts during teardown

Pickup engine bay with blue V8, chrome master cylinder and blue brake booster

Engine bay with intake manifold removed, exposing V8 valley and pushrods; blue valve cover

8photos in this albumView all

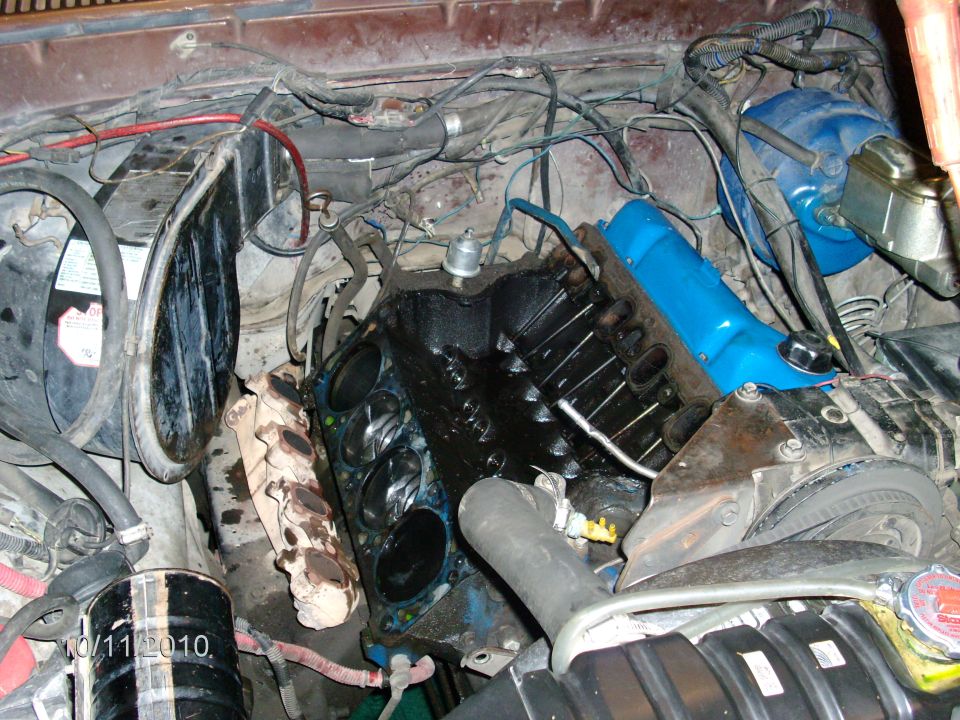

Overhead view into an engine bay during a top-end teardown, with the driver-side cylinder head removed to expose four bare cylinder bores and the head-gasket surface still wet with oil. The blue-painted valve cover remains on the opposite bank, a rusty exhaust manifold lies loose on the fender, and a date stamp reads 10/11/2010.

AI caption October 2010 · Photo 73 of 446
