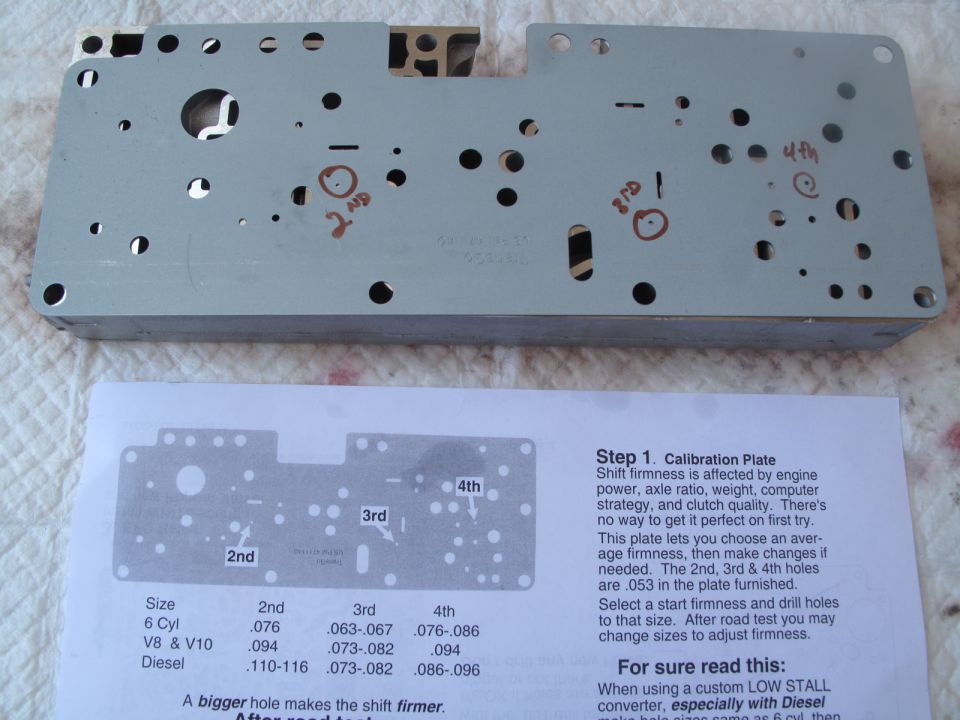

Transmission calibration plate with handwritten marks and printe…
4EOD Tranny UpgradeView all 71
Calibration plate for transmission shift firmness, with accompanying instructions and a chart of hole sizes for different engine types.
2nd m::$f ' Size 2nd 3rd 4th 6 Cyl .076 .063-.067 .076-.086 VIB & V10 .094 0732082 .094 Diesel ,110-116 .073-.082 OBS-.096 A bigger hole makes the shift rmer. AHA- ..__.l A- ,- Step 1. Calibration Plate Shift firmness is affected by engine power, axle ratio, weight, computer strategy, and clutch quality. There's no way to get it perfect on rst try. This plate lets you choose an aver- age firmness, then make changes if needed. The 2nd, 3rd & 4th holes are .053 in the plate furnished. Select a start rmness and drill holes to that size. After road test you may change sizes to adjust firmness. For sure read this: When using a custom LQW STALL converter, especially wrth Dlesel .._t._ I..- an.-. mum; a: k nul than
