EGR solenoid vacuum valve assembly combinations 9D474, normally…

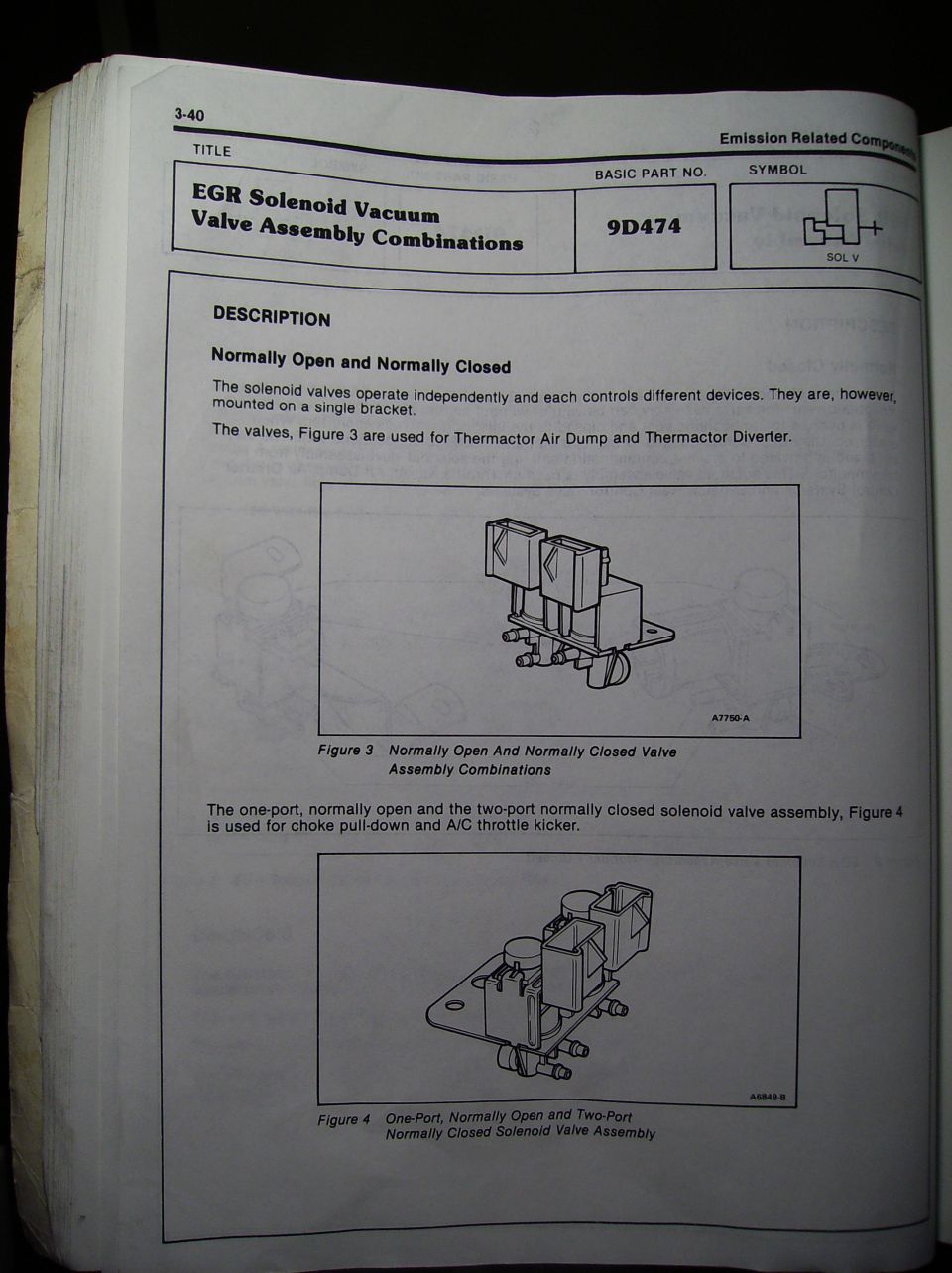

EGR solenoid vacuum valve assembly combinations 9D474, normally open and closed, page 3-40
EGR solenoid vacuum valve assembly combinations 9D474, normally open and closed, page 3-40Original file

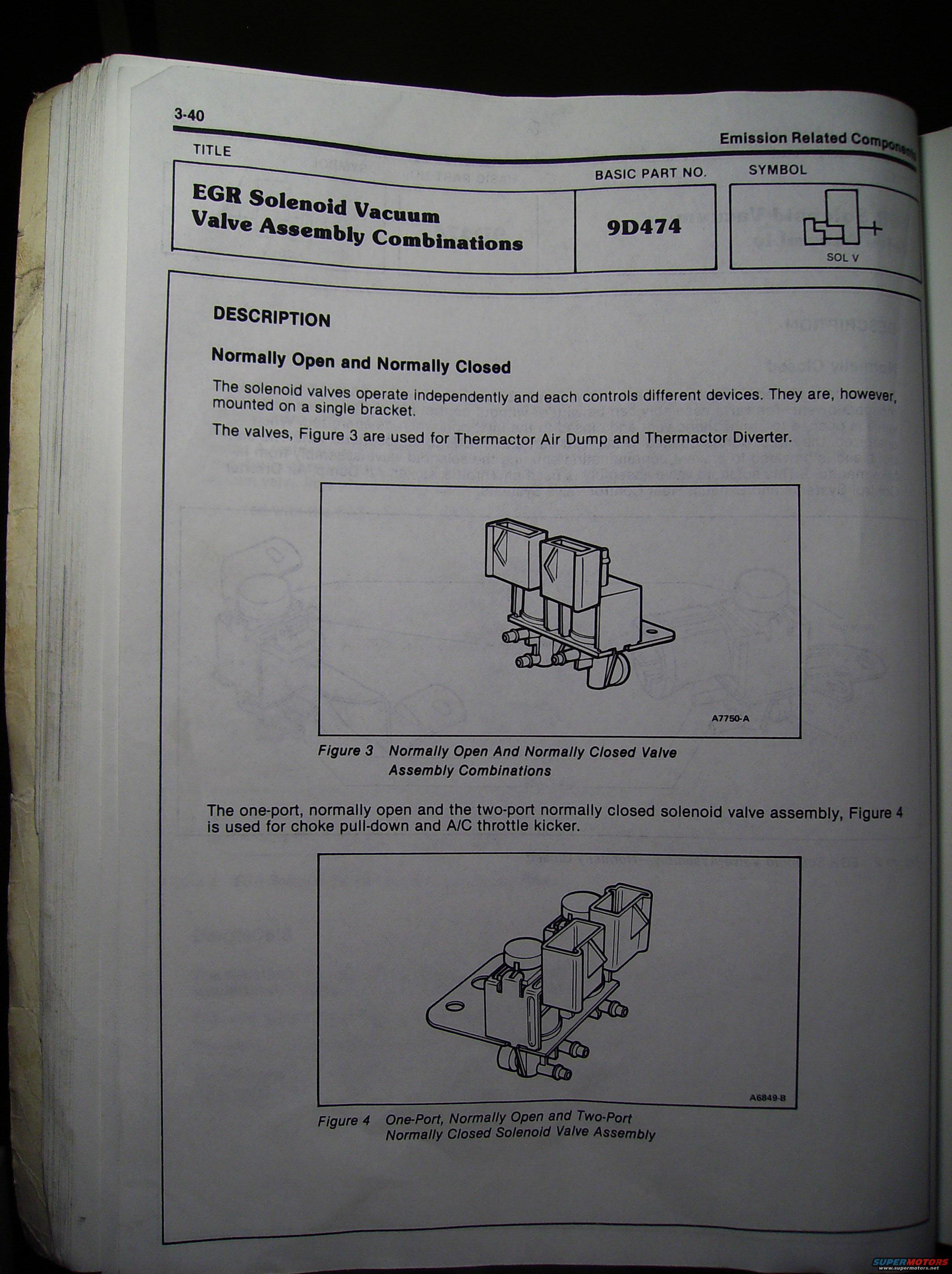

EGR solenoid vacuum valve assembly combinations 9D474, normally open and closed, page 3-40

Reference · 1980-1986 F-150All 2 manual pages

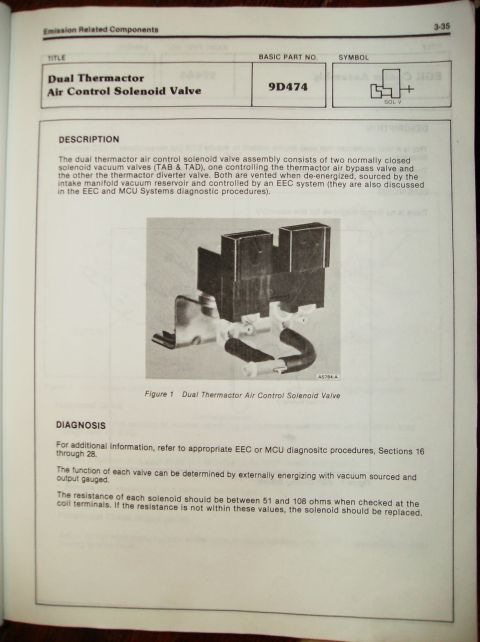

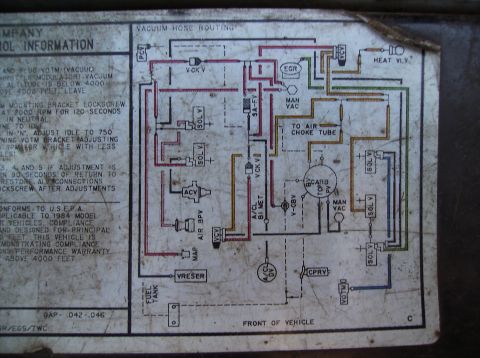

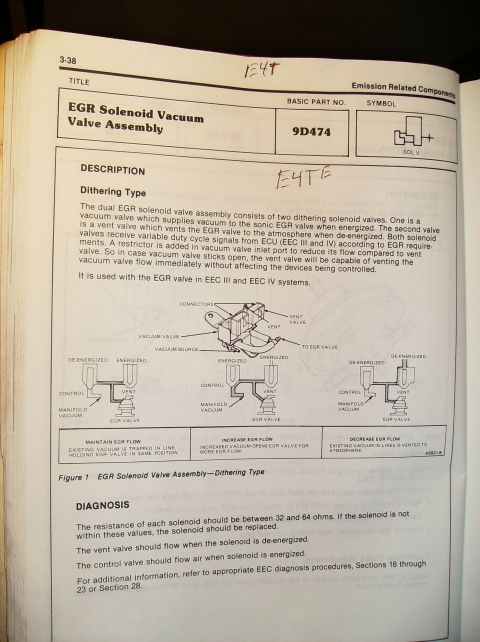

Service manual page 3-35 on the Dual Thermactor Air Control Solenoid Valve, basic part no. 9D474, with photo EGR solenoid vacuum valve assembly combinations 9D474, normally open and closed, page 3-40 2manual pages1980-1986 Ford F-150 More reference '84 underhood vacuum hose routing decal with color-coded lines to EGR, PCV, VCKV, SOL V, carb and VRESERVacuum routing Ford Duraspark II Ignition Wiring Diagram - Reduced Voltage Coil (Blue Connector)Wiring diagram Centurion Sturgis, Michigan re-manufactured vehicle plate citing FMVSS and NTMVS Section 108Spec plate

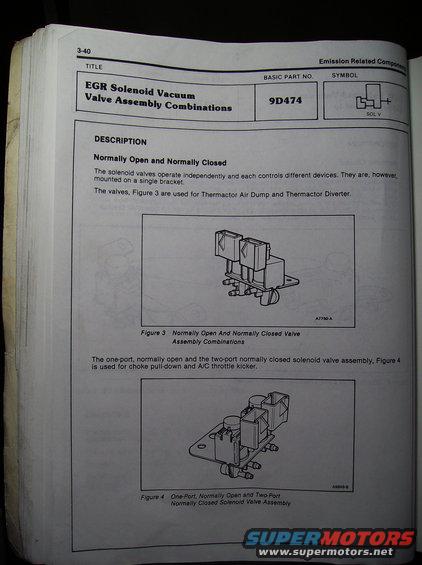

EGR valve page from Engine/Emissions manual

Part of 1980-1986 Ford F-150 Manual Pages

Owner caption · Photo 2 of 4
