What is the part number for the power window relay in this diagram?

The relay is base part number 14677, shown in view G, mounted with 42014-S (U-240) hardware and connected to 14A200 wiring.

What are the part numbers for the door wiring assemblies on 4-door body types?

View D shows 14632-R.H. (right hand) and 14633-L.H. (left hand) wiring for 4-door body types, along with switch 14529, housing 14528, and screw ★52388-S.

Which views apply to 2-door versus 4-door body types?

Views D and E are labeled '4 DOOR BODY TYPES'; view J is labeled '2 DOOR BODY TYPES'. Views C, F, G, and H carry no body-type label.

What fasteners are called out for mounting the window switch and trim panel components?

Fasteners shown include ★52388-S, ★384646-S, 52012-S (U-202), 55907-S (U-202), 381561-S (MM-295-AD), and 42014-S (U-240).

What harness part numbers appear in this diagram?

Harness/wiring callouts include 14A200, 14A630, 14630, 14644, part of 14398, and part of 14401.

Home/ Registry/ Ford/ Ranchero/ 1972-1976/ 1972 Ford Ranchero/ Photo supermotors.net/registry/media/842972

Ford Power Window Wiring Exploded Parts Diagram - Switches, Relay & Harnesses

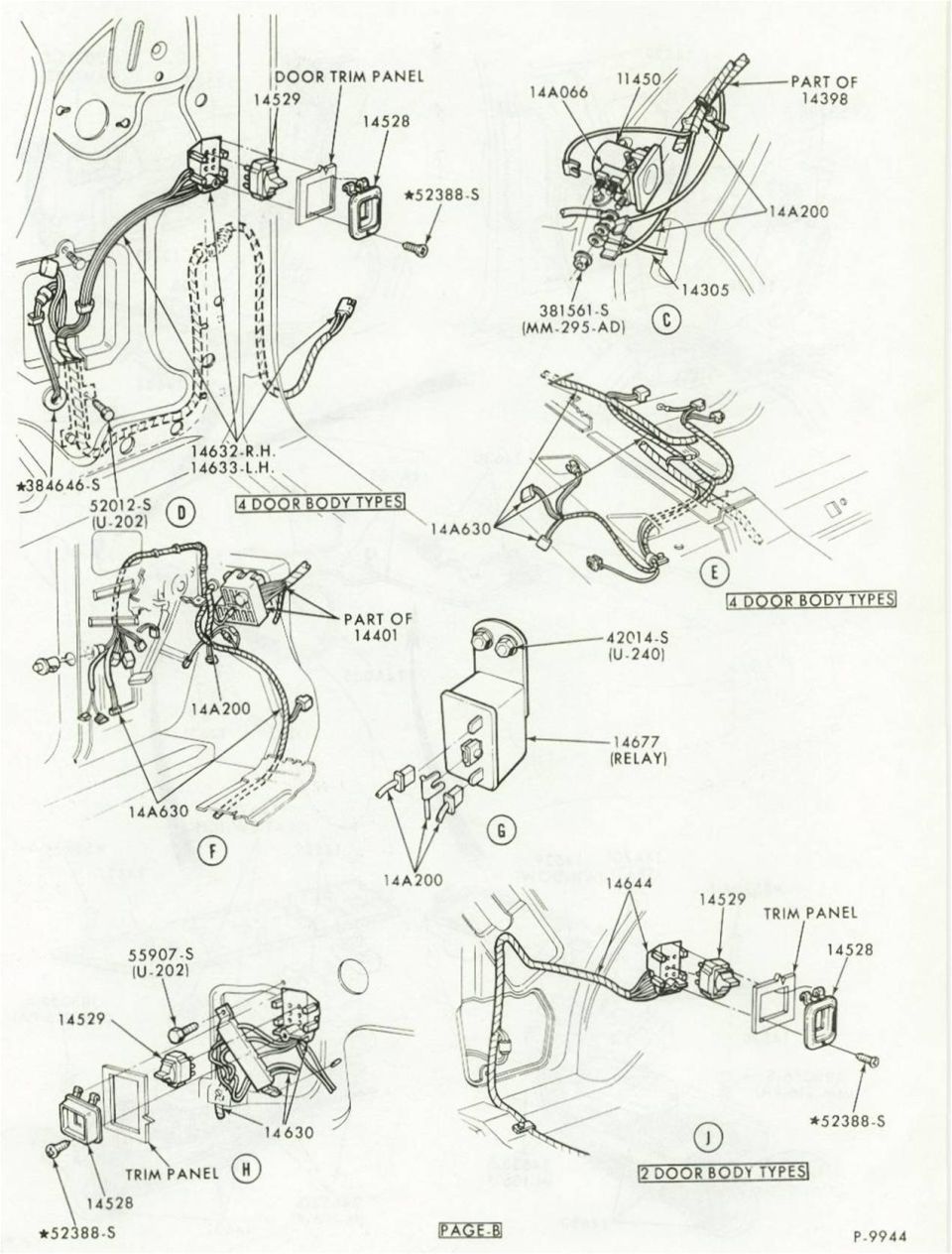

Ford door wiring and trim panel exploded parts illustration, 2-door and 4-door body types

‹ ›

Ford parts illustration (Page B) showing door/quarter trim-panel wiring routing for 2-door and 4-door body types, including door wire assemblies 14632 RH/14633 LH, relay 14677 and trim-panel fasteners.

AI caption December 2010 · Photo 659 of 708

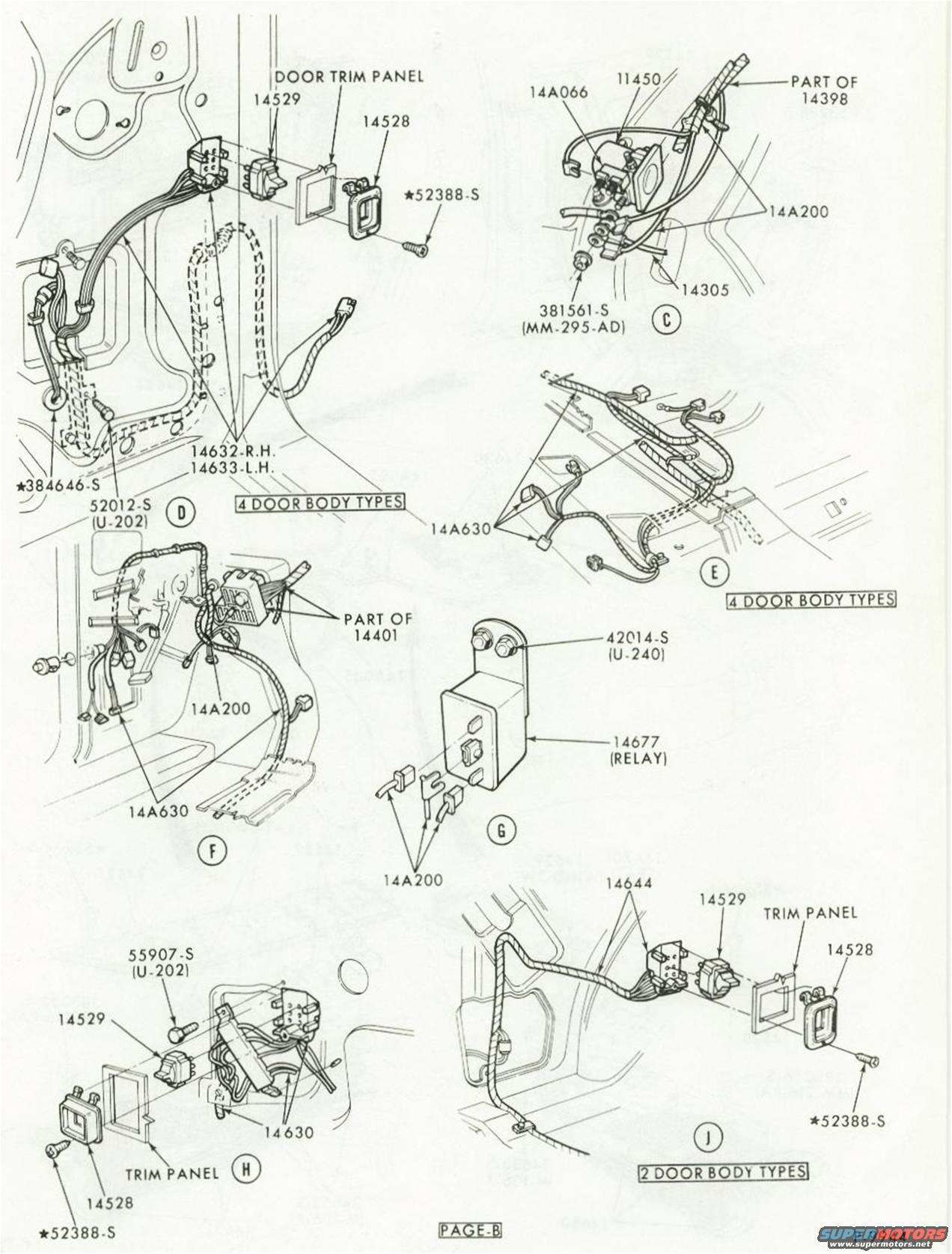

This document is an exploded parts diagram page (labeled PAGE-B, plate P-9944) from a Ford factory parts illustration set showing power window wiring components and their installation. It contains multiple lettered views (C, D, E, F, G, H, J) depicting wiring harness routing, switches, motors, relays, and hardware. Views D and E apply to 4-door body types, while view J applies to 2-door body types. Callouts identify Ford base part numbers including window switch housings 14528 and switches 14529, wiring assemblies 14632-R.H. and 14633-L.H., harnesses 14630, 14A630, 14644, and 14A200, the power window relay 14677 (attached with 42014-S U-240 hardware), motor/regulator-related parts 14A066, 11450, 14305, and part of harnesses 14398 and 14401. Fastener part numbers shown include ★52388-S, ★384646-S, 52012-S (U-202), 55907-S (U-202), and 381561-S (MM-295-AD). A reader can learn which part numbers make up the power window electrical system, where the relay and harnesses mount in the doors and body, and which components differ between 2-door and 4-door body styles. The page contains no wire colors, fuse data, or explicit year/model text.

Is this accurate? Sign in to help verify it.

Frequently asked questions

What is the part number for the power window relay in this diagram?: The relay is base part number 14677, shown in view G, mounted with 42014-S (U-240) hardware and connected to 14A200 wiring.
What are the part numbers for the door wiring assemblies on 4-door body types?: View D shows 14632-R.H. (right hand) and 14633-L.H. (left hand) wiring for 4-door body types, along with switch 14529, housing 14528, and screw ★52388-S.
Which views apply to 2-door versus 4-door body types?: Views D and E are labeled '4 DOOR BODY TYPES'; view J is labeled '2 DOOR BODY TYPES'. Views C, F, G, and H carry no body-type label.
What fasteners are called out for mounting the window switch and trim panel components?: Fasteners shown include ★52388-S, ★384646-S, 52012-S (U-202), 55907-S (U-202), 381561-S (MM-295-AD), and 42014-S (U-240).
What harness part numbers appear in this diagram?: Harness/wiring callouts include 14A200, 14A630, 14630, 14644, part of 14398, and part of 14401.
