Ford Power Window Door Wiring & Switch Diagram - 14631 Harness, 14529 Switch

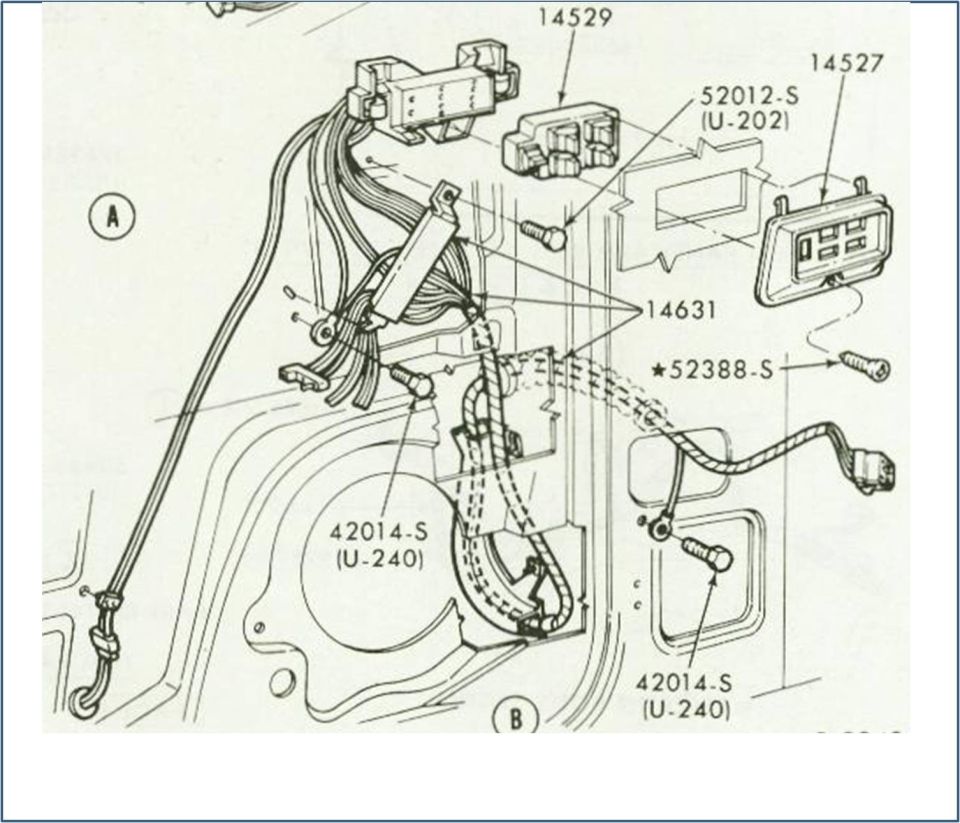

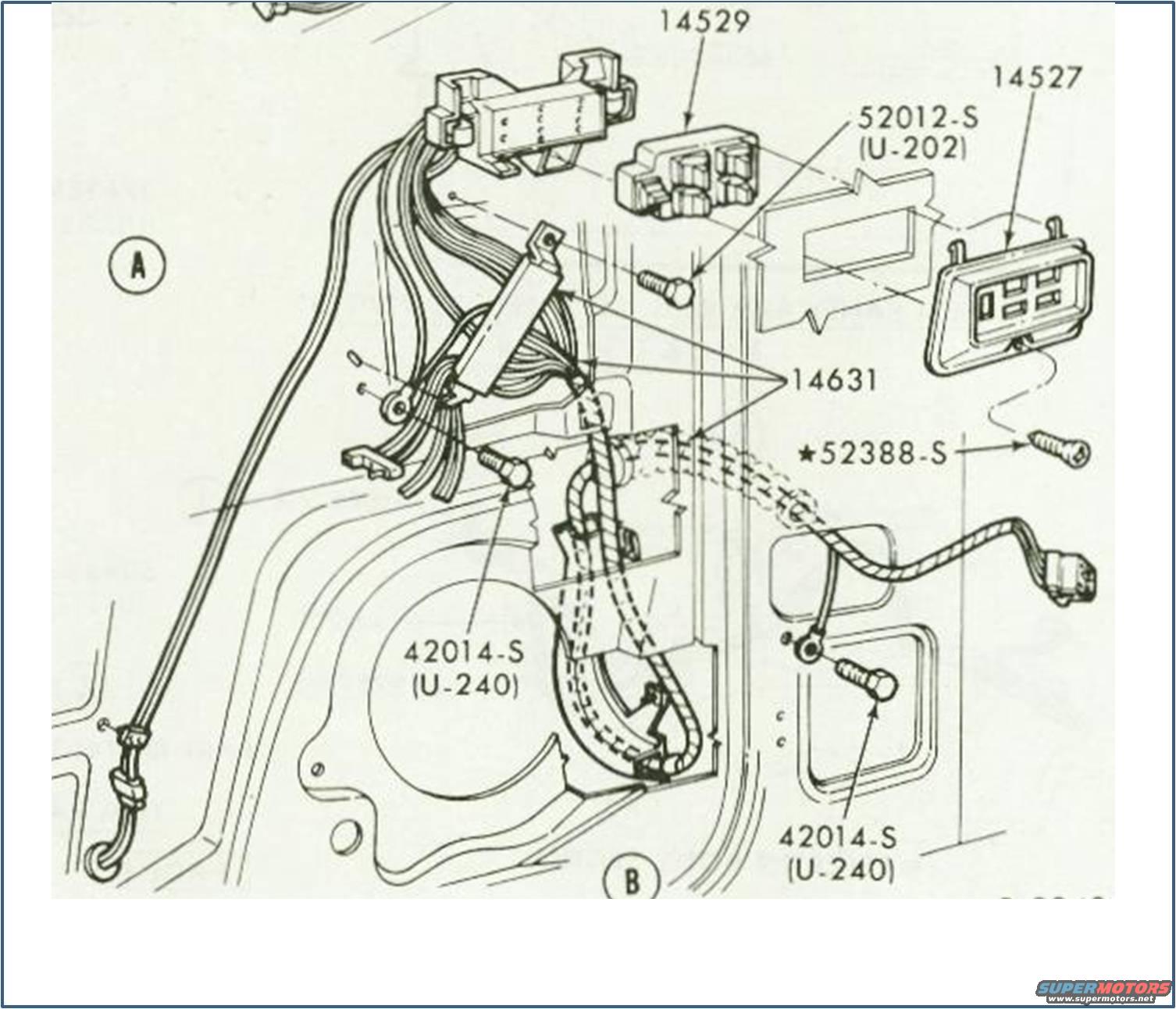

This document is a scanned exploded-view illustration from a Ford factory parts/assembly manual showing power window wiring and switch installation in a vehicle door. Two views are labeled with circled letters A and B. Callout part numbers identify the components: 14529 (window control switch/housing assembly shown at top), 14527 (a rectangular multi-button switch bezel/housing shown at right), 14631 (the power window wiring harness routed through the door, indicated by multiple arrows), 52012-S (U-202) (a screw fastener), ★52388-S (a screw for the switch housing), and 42014-S (U-240) (hex-head bolt/screw fasteners called out in both view A and view B). The drawing shows the wiring bundle routed from the switch location down through the door shell, with dashed lines indicating hidden harness routing behind the inner door panel, along with grommets, clips, and attachment points. A reader can learn which Ford basic part numbers correspond to the power window switch, harness, and mounting hardware, and how the harness is routed and secured inside the door. No year, model, wire colors, or textual instructions appear in this cropped scan — it is purely a labeled parts illustration.
