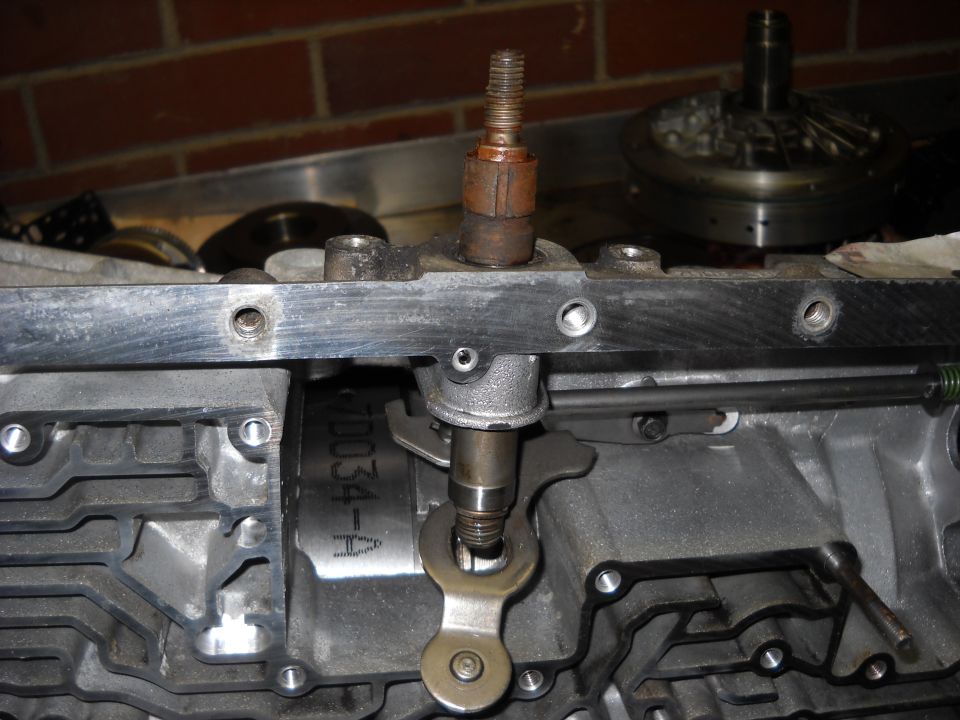

Manual shift shaft and park rod lever inside an open automatic t…

Close-up inside an automatic transmission case at the manual shift shaft, showing the rusty threaded shaft stub passing through the case boss and connected to the roll-pinned park/rod lever and manual valve link. The cast fluid passages, threaded pan-rail holes and part of the valve body are visible, with a torque converter and brick wall in the background.

AI caption March 2011 · Photo 656 of 681
