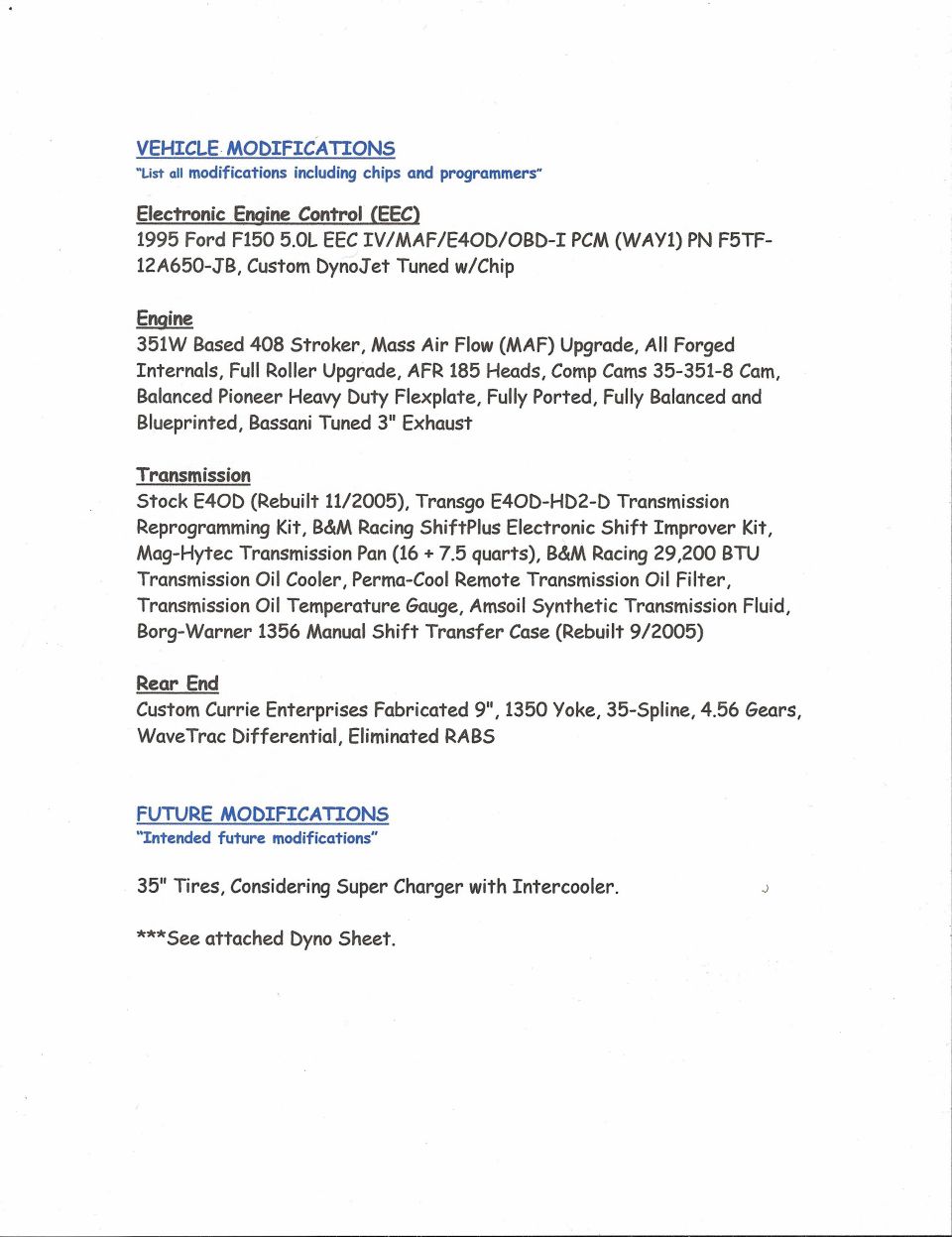

List of vehicle modifications detailing engine, transmission, and rear end upgrades.

AI caption August 2011 · Photo 840 of 1787

[EHICLE MODIFICATIONS List all modifications including chips and programmers" Electronic Engine Control (EEC ) 1995 Ford F150 5.0L EEC IV/MAF/E4OD/OBD-I PCM (WAY1)PN F5TF 12A650JB, Custom DynoJet Tuned w/Chip Engine 351W Based 408 Stroker, Mass Air Flow (MAF) Upgrade, All Forged Internals, Full Roller Upgrade, AFR 185 Heads, Comp Cams 35351-8 Cam, Balanced Pioneer Heavy Duty F lexplate, Fully Ported, Fully Balanced and Blueprinted, Bassani Tuned 3" Exhaust Transmission Stock E4OD (Rebuilt 11/2005), Transgo E4ODHD2-D Transmission Reprogramming Kit, B&M Racing ShiftPlus Electronic Shift Improver Kit, MagHytec Transmission Pan (16 + 7.5 quarts), B&M Racing 29,200 BTU Transmission Oil Cooler, Perma-Cool Remote Transmission Oil Filter, Transmission Oil Temperature Gauge, Amsoil Synthetic Transmission Fluid, BorgWarner 1356 Manual Shift Transfer Case (Rebuilt 9/2005) Rear End Custom Currie Enterprises Fabricated 9", 1350 Yoke, 35-Spline, 4.56 Gears, WaveTrac Differential, Eliminated RABS FUTURE MODIFICATIONS Intended future modifications" 35" Tires, Considering Super Charger with Intercooler. s ***See attached Dyno Sheet.
